Column interchange..between diffrent years

Status
Not open for further replies.

Slowpoke

G-Body Guru
Dec 23, 2016
582
1,218
93
Hi Guys,

So I am in dire need of rebuilding the column in the 78 Caballero, it is total junk.. Need to clean inspect and replace parts as needed.

Question is can I swap in the column from my 83 Regal into it so it won't be out of commission while I repair the 78 column? Will I have any issues with the harness connectors not matching up?

Thanks!


TURNA

Rocket Powered Basset Hound
Jul 24, 2009
10,941
19,990
113
Socialist NY
U can use the 83 if you have the intermediate shaft from the 83 as well

78's use a 1 year style column.

Also the 83 should has the wipers on the blinker arm.


Slowpoke

G-Body Guru
Dec 23, 2016
582
1,218
93
U can use the 83 if you have the intermediate shaft from the 83 as well

78's use a 1 year style column.

Also the 83 should has the wipers on the blinker arm.


Thanks! I won't be using it much really. I don't need the wipers to work right now. So the harness will match up? I also have a jeep steering shaft for the Regal column. That should work right?


TURNA

Rocket Powered Basset Hound
Jul 24, 2009
10,941
19,990
113
Socialist NY
I am not 100% on the harness connectors but I would say the main harness for the ignition should work.

With the jeep shaft you have to notch the column shaft as I am sure you know.


pagrunt

Geezer
Sep 14, 2014
9,122
15,255
113
Elderton, Pa
That '83 column will plug into your harness, just zip tie the wiper harness to the column to keep it out of the way. I used a '86 floor shift column when I first did the 4 speed swap, just plug & play, pulled the wiper/turn lever & put in my original turn lever. Just wish I never cut the linkage end off the column. :doh:


Slowpoke

G-Body Guru
Dec 23, 2016
582
1,218
93
I am not 100% on the harness connectors but I would say the main harness for the ignition should work.

With the jeep shaft you have to notch the column shaft as I am sure you know.

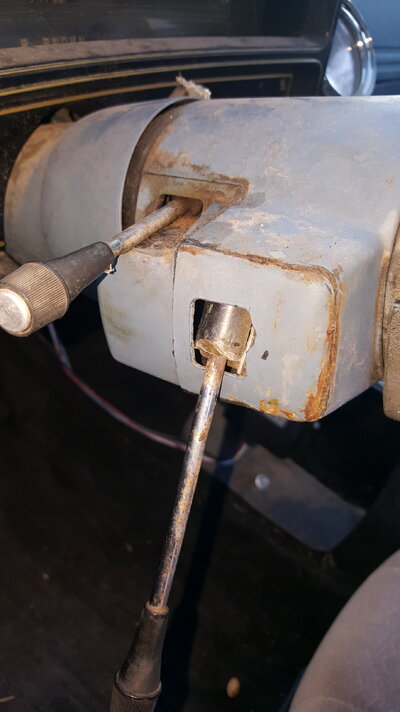

Yup. The regal column is notch for it already. Planning on working on the Regal mostly this winter.. It's a frame off so it's in stands not going anywhere soon.. I need the elco as a parts runner for now that's I just want to swap the column quickly to keep it in the road while I repair column.. It's pretty jacked up.


Attachments

  • 20170916_170118.jpg
    744.8 KB · Views: 217
