Looking for pics of front inner wheel well mounting

mc1984ss

Master Mechanic
May 18, 2020
277
43

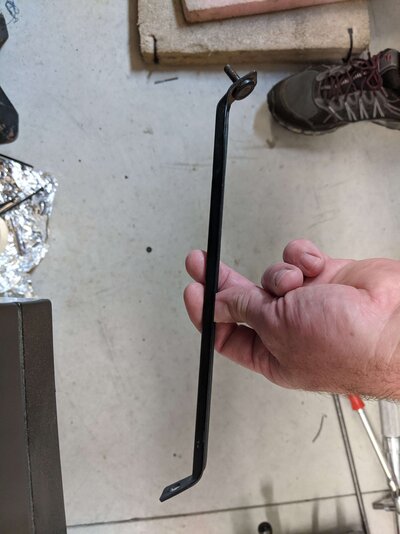

Putting My front inner wheel wells back in the Monte Carlo after doing some work on the front. I had a completely apart and I can't remember how the diagonal brace goes down to the fender. Does the diagonal brace go underneath the course support, between the course support and the inner, or???? Pictures would be greatly appreciated there is a captured nut/ u bolt that this bolt threads into. Can't remember which piece the u-nut slides over. Thank you!


Attachments

  • PXL_20220918_181209562.jpg
    543.8 KB · Views: 18
  • PXL_20220918_181159382.jpg
    801.8 KB · Views: 17

mc1984ss

Master Mechanic
Thread starter
May 18, 2020
277
43
Appears that the diagonal brace goes between the core support and inner wheel well?


melloelky

Comic Book Super Hero
Oct 22, 2017
3,767
113
mass

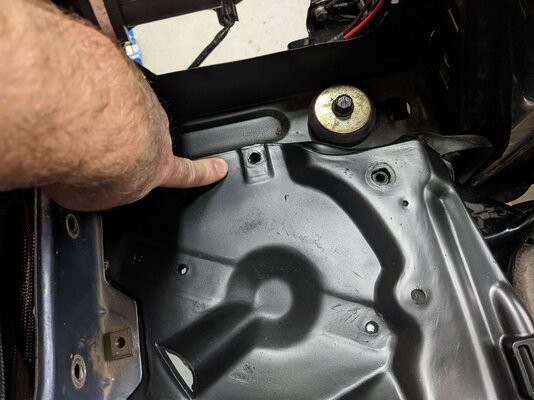

it goes through the spot he's pointing from the bottom up which is through the radiator support and fender liner.
