noob, please help

houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3
yes sir,i was trying man it was too dark,basically i was just pointing i the dark and hoping what came out was the transmission, i gave up cuz it was not coming out rite and knew i could take a better pic in the daytime when i can actually see what im pointing at.


CopperNick

Royal Smart Person
Supporting Member
Feb 20, 2018
2,084
113
Canada
Easy, pilgrim, not criticizing your talents in the photo department. Only noting for your consideration that for anyone sand bagging this thread to give you the ID you need, what we're looking at has to make sense to us. Can't begin to count how many shots I have taken as highlights for items I have worked on and have had to edit out because of fuzziness, or the shakes or being off centre or................... Just glad I can now take and save them to a chip; the cost of film and printing used to be a killler.



Nick


houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3

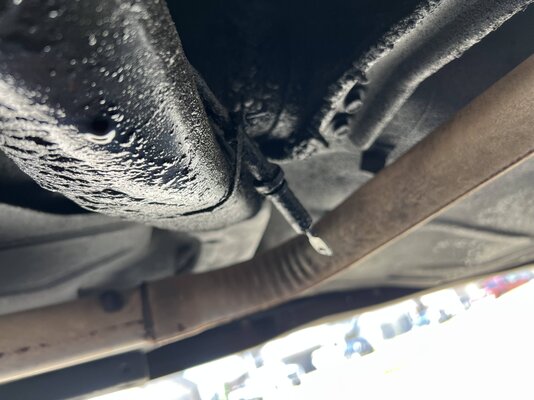

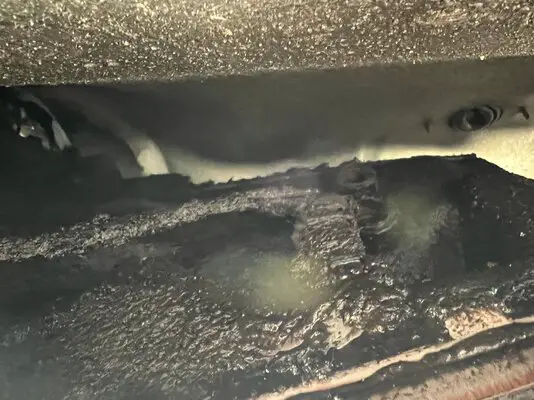

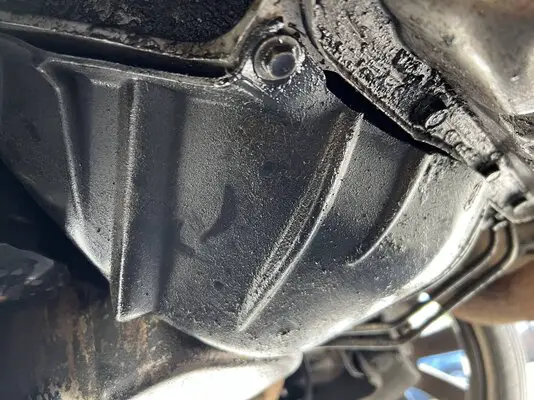

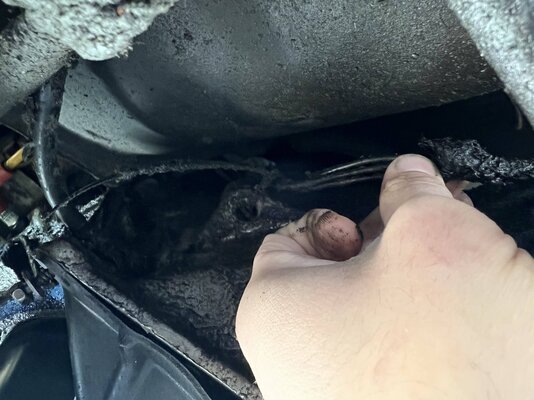

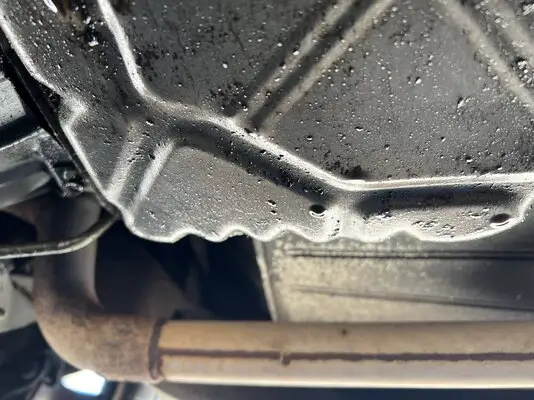

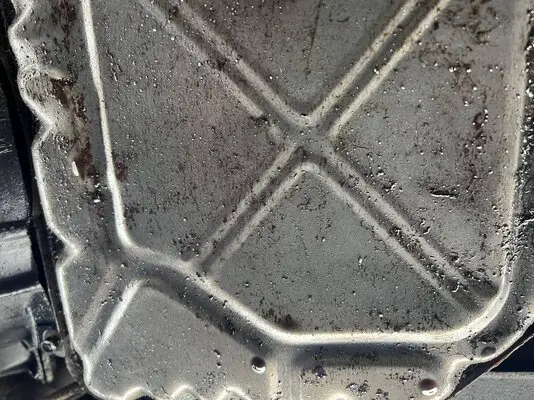

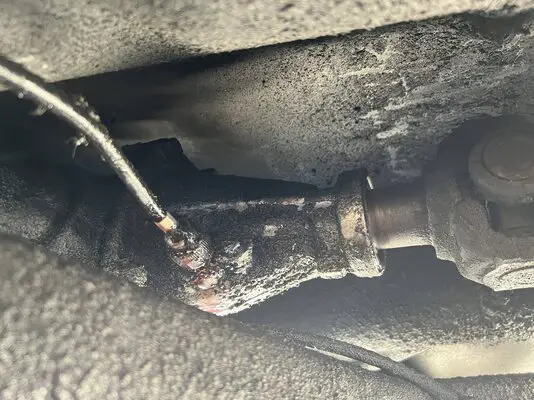

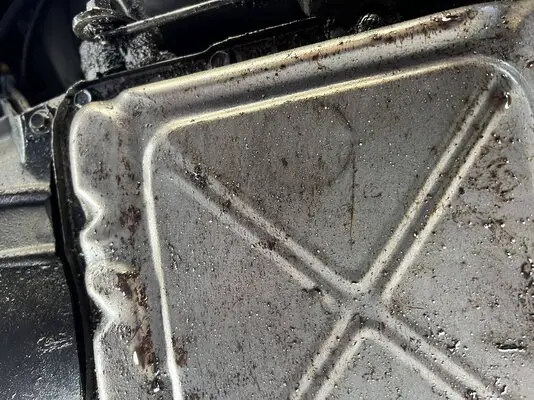

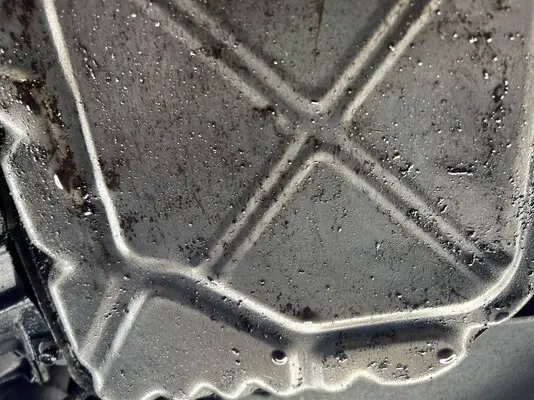

well this is why im a barber and not a photographer. i hope these pics are enough to identify my transmission.(sorry for crappy pics) also i snapped a pic of this hanging connection thats not connected to anything.also i have devolped a mean leak from the spedo cable, i tightened it and it started leaking, so im guessing i should o left it alone.


Attachments

  • IMG_1021.jpg
    1.7 MB · Views: 34
  • IMG_1025.jpg
    1.7 MB · Views: 35
  • IMG_1026.jpg
    1.6 MB · Views: 37
  • IMG_1027.jpg
    1.1 MB · Views: 33
  • IMG_1032.jpg
    738.9 KB · Views: 33

ELCAM

G-Body Guru
Jun 19, 2021
564
93
Never seen that pan before so still no idea what it is. Just off the top of my head it is too short for a 200-4R, a 200 should be smooth on the bottom and have "METRIC" stamped into it. Never seen a 350 pan with all those ribs stamped into it. Not sure if I have ever seen a 250 so I am leaning that way.

The tied off cable is a throttle valve or kick down cable. What I wonder is what is plugging the hole where that goes? How does it run does it shift soft or shift hard, shift late or early?

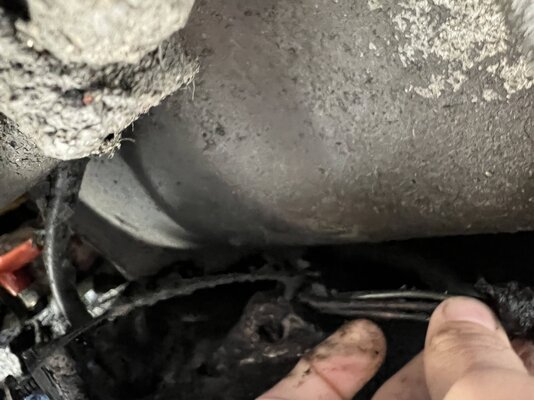

Take a picture of the speedometer gear adaptor and the front corners above the pan that's where that cable will go in.


houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3
going to take the pics rite now,as far as shifting i would say it shifts early, i have never seen more then what feels like 3500 rpm out of it(no tach) the car feels lazy and sluggish the times i drove it


scoti

Royal Smart Person
Supporting Member
Sep 5, 2019
1,599
113
Texas
Count the number of bolts holding the pan on. It will help since it's difficult to get decent pics in the cramped conditions.

  • Like
Reactions: 1 user

houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3

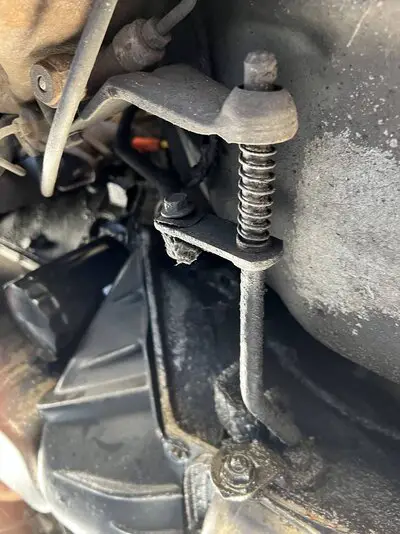

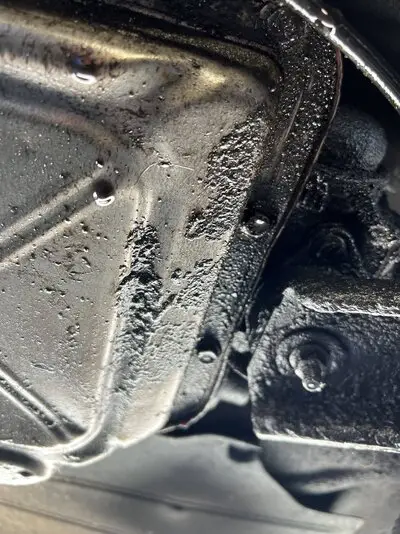

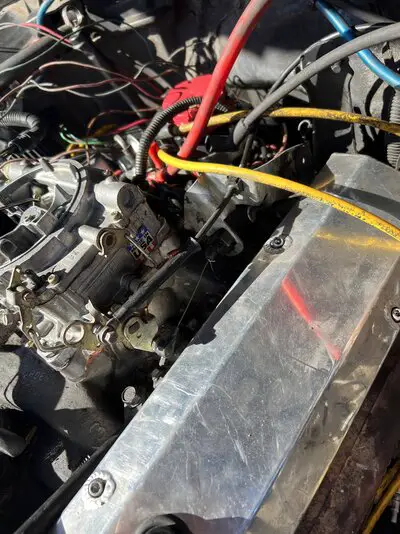

13 bolts holding pan on,last pic is the kickdown/tv section of the carb,


Attachments

  • IMG_1037.jpg
    1.5 MB · Views: 35
  • IMG_1036.jpg
    1.3 MB · Views: 31
  • IMG_1035.jpg
    1.7 MB · Views: 35
  • IMG_1033.jpg
    1.7 MB · Views: 30

ELCAM

G-Body Guru
Jun 19, 2021
564
93
13 bolt pan is a 250 or 350. 200 is 11 bolts , 200-4R is 17 bolts. Look on the passenger side behind the cooler lines and the dipstick tube a 250 will have a stud with a nut on it for a band adjust a 350 will not have this.

Also note the bolt on tail shaft housing, the 200-4R is one piece and I think the 200 is also.

The small speedometer adaptor is early 350 without lockup. My 350C and I think the 250 use the bigger one.

Is there a wire connector on the drivers side? Square with 4 pins coming out vertical or a single male terminal coming out horizontally.

Last edited:
  • Like
Reactions: 1 user

houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3
going to checc rite now. elcam i am very impressed with your knowledge man, it seems like you know all this off the top of your head.very impressive man


houstonecity713

Not-quite-so-new-guy
Thread starter
Feb 23, 2022
26
3
drivers side has 3 wires going to it. also did not see this band adjust man


Attachments

  • IMG_1038.jpg
    806.5 KB · Views: 30
  • IMG_1039.jpg
    928.4 KB · Views: 31
  • IMG_1040.jpg
    1.1 MB · Views: 30
  • IMG_1041.jpg
    1.9 MB · Views: 28
