Parking brake cable routing 85MCSS

Status
Not open for further replies.

ostrich

Master Mechanic
Aug 27, 2012
310
313
63
Ontario, Canada

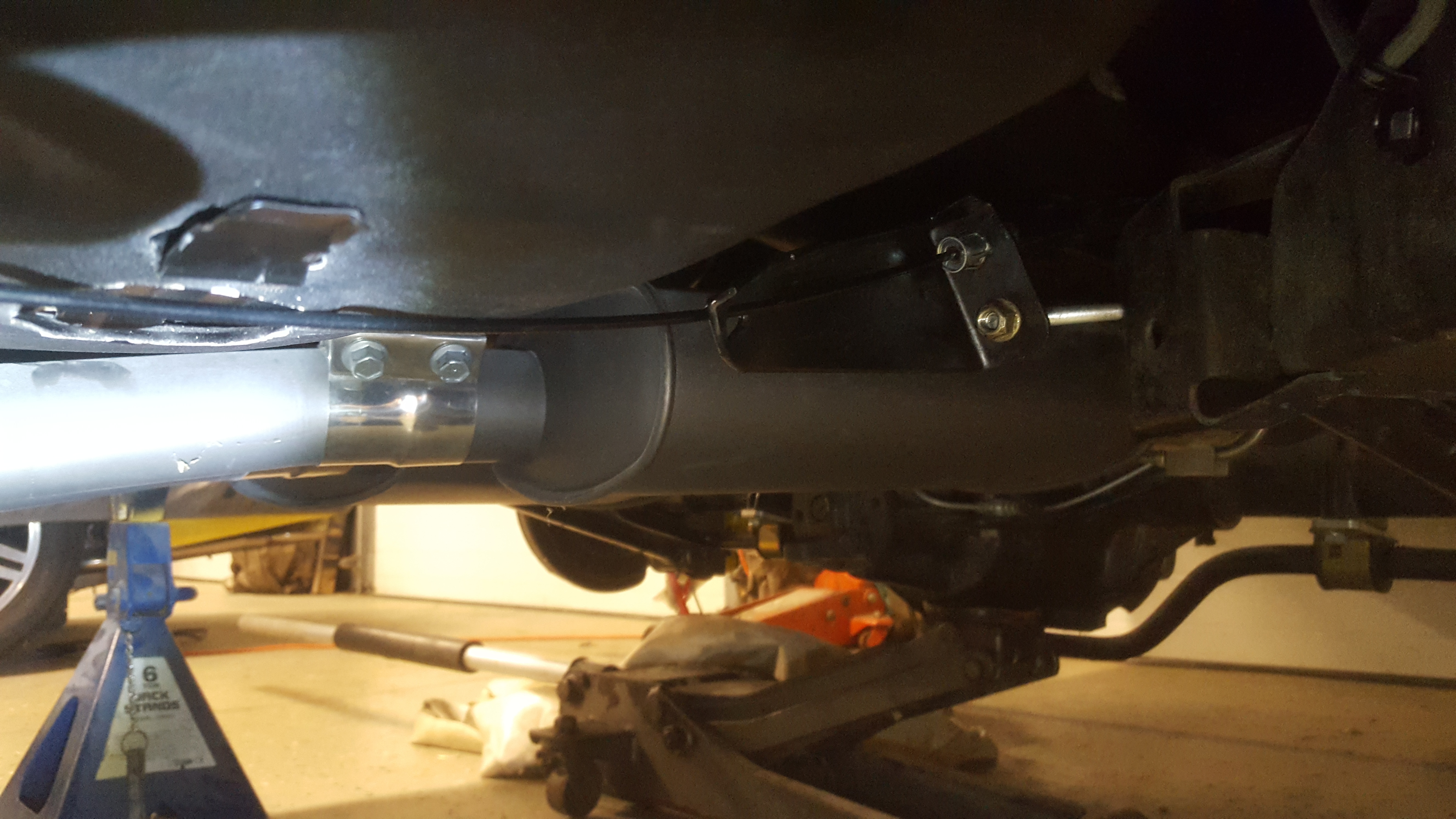

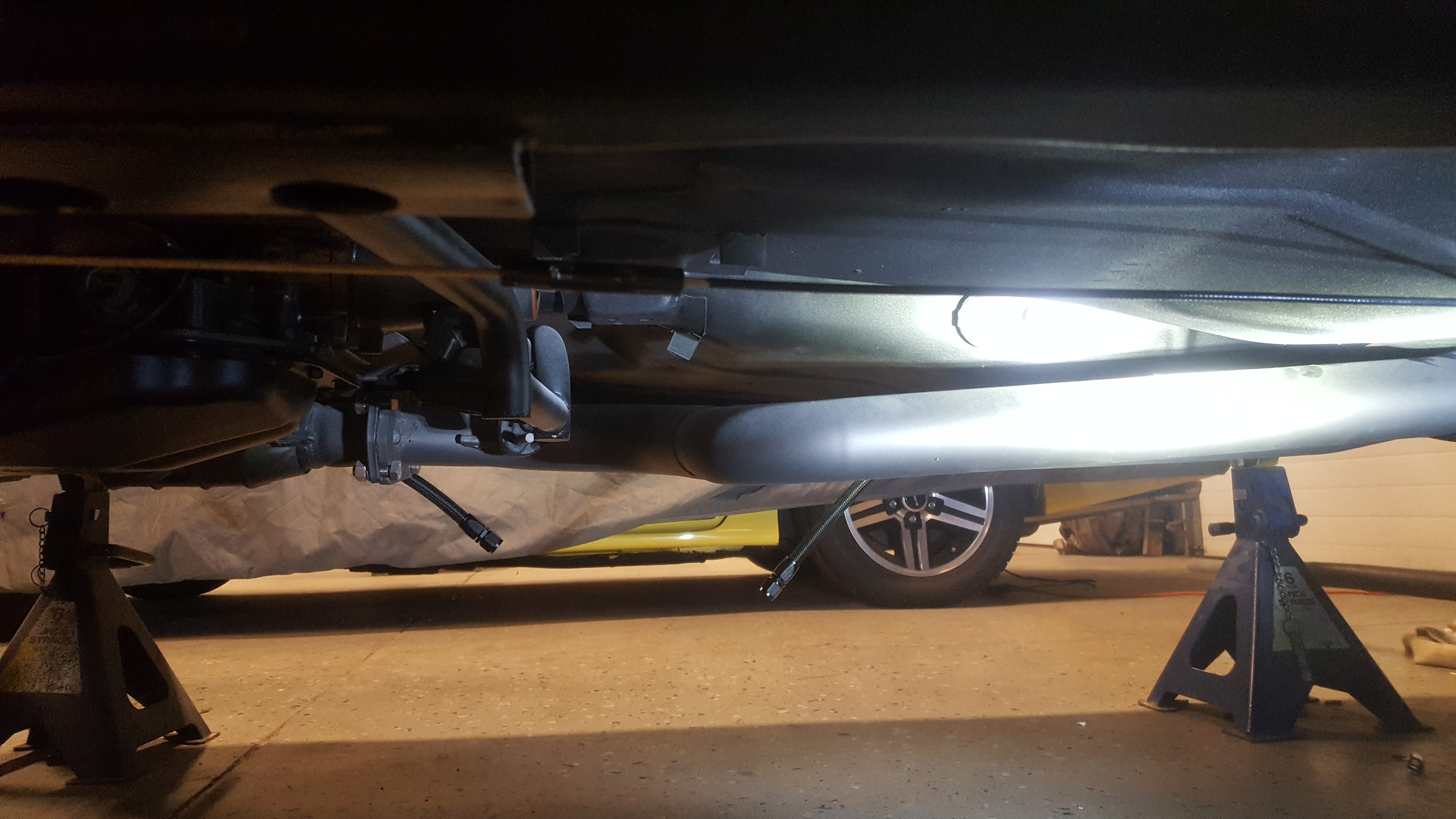

Installed an 8.8 (mustang) rear end with Ford Corba R rear discs. I have everything mounted and working how it should. Working on adapting the parking brake and have things pretty much done, but struggling with the cable that goes to the front connecting to the pedal. Does it just hang under the car and then basically rub on the bottom floor pan till you get to the splitter at the control arm mount? Or does it tuck closer to the driver frame rail somehow? Doesn't look right to me, but I can't remember, it's been apart for awhile. I could put it on top of the transmission mount to help?


Attachments

  • 20201209_195347.jpg
    4 MB · Views: 205
  • 20201209_195358.jpg
    4 MB · Views: 207
  • 20201209_195425.jpg
    3.8 MB · Views: 223

69hurstolds

Geezer
Supporting Member
Jan 2, 2006
8,089
17,299
113
Other than appearing it needs final adjusting for proper tension, it appears fine to me.

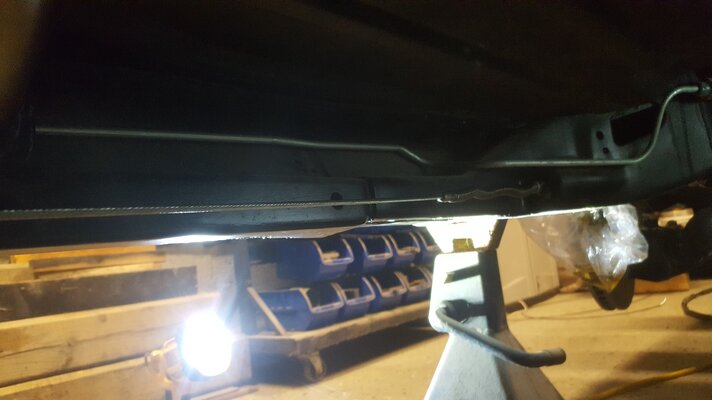

This may help. Stock, low mile monte SS undercarriage:

Monte ss underside 4.jpg


Monte ss underside 3.jpg

  • Like
Reactions: 1 users

ostrich

Master Mechanic
Aug 27, 2012
310
313
63
Ontario, Canada
(y)(y), exactly what I was looking for. Yes I do need to do a final adjustment on it to tighten it up. Just need to weld a bullet on the passenger caliper cable end. Much appreciated!


83StreetMachine

Master Mechanic
Dec 16, 2011
395
819
93
Central NJ

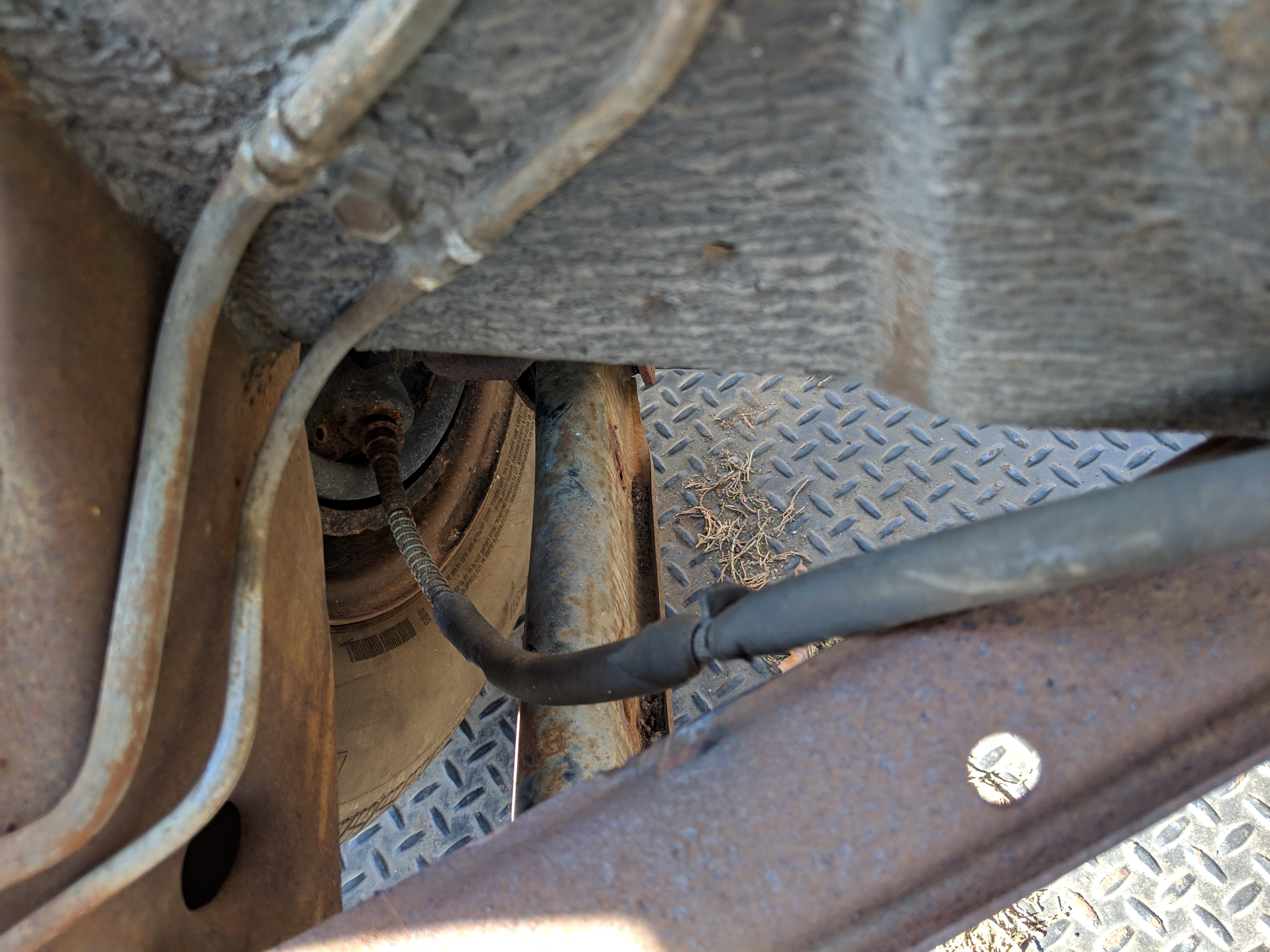

Here's what factory routing looks like minus the body.

From front to rear....



Attachments

  • IMG_20190203_134206.jpg
    3.1 MB · Views: 187
  • Like
  • Useful
Reactions: 3 users

83StreetMachine

Master Mechanic
Dec 16, 2011
395
819
93
Central NJ
Don't forget about the little "S" hook on the driver's side rear trailing arm mount. It helps retain the cable and support the adjuster and usually goes missing.
