Radio help!!

87gbodydanny

Not-quite-so-new-guy
Apr 1, 2023
39
4
8
Las Vegas

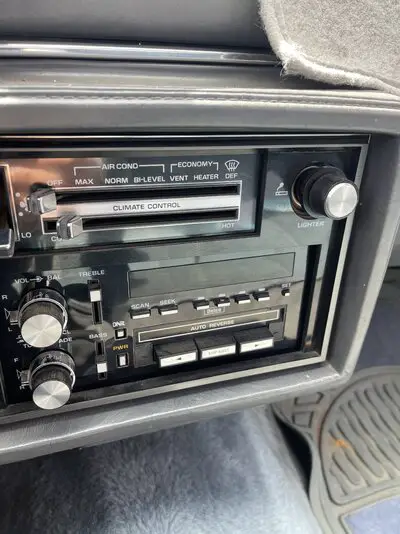

All I hear is static doesn’t show stations no sounds anyone know what it could be ??? 87 regal


Attachments

  • 0DAF1EA5-4B95-408E-B0F5-52FE8FCF5C1F.jpeg
    1.6 MB · Views: 52

84 W40

G-Body Guru
Dec 9, 2009
567
782
93
Did you check your clock fuse


ELCAM

Royal Smart Person
Jun 19, 2021
1,116
1,254
113
Fuse box is on the drivers side under the dash left side. There will be 2 fuses you are concerned with but it sounds like the radio one is ok if you get static.

Yellow wire to the radio is powered by the RADIO fuse. switched 12V.

Orange wire is the un switched +12V that powers the clock, stereo memory and some other things. Same circuit that is used for the courtesy lights, dome light etc. Things that work without the key. CTSY-CLK Fuse.
