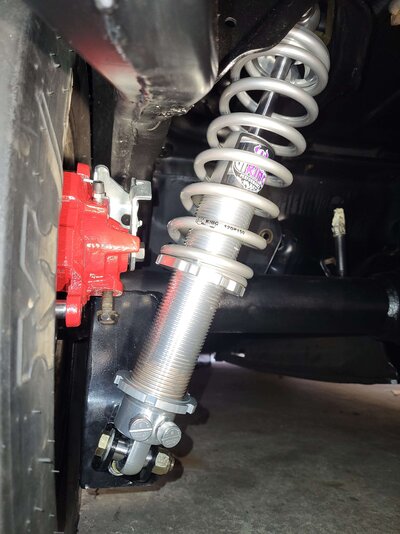

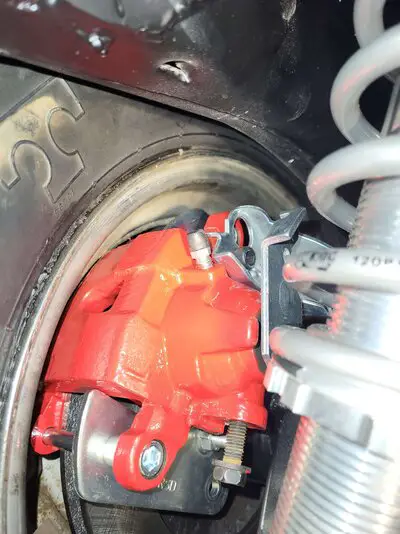

Is your calipers mounted on front of axle or behind?

When I mount them behind they get kind of close to coil spring.

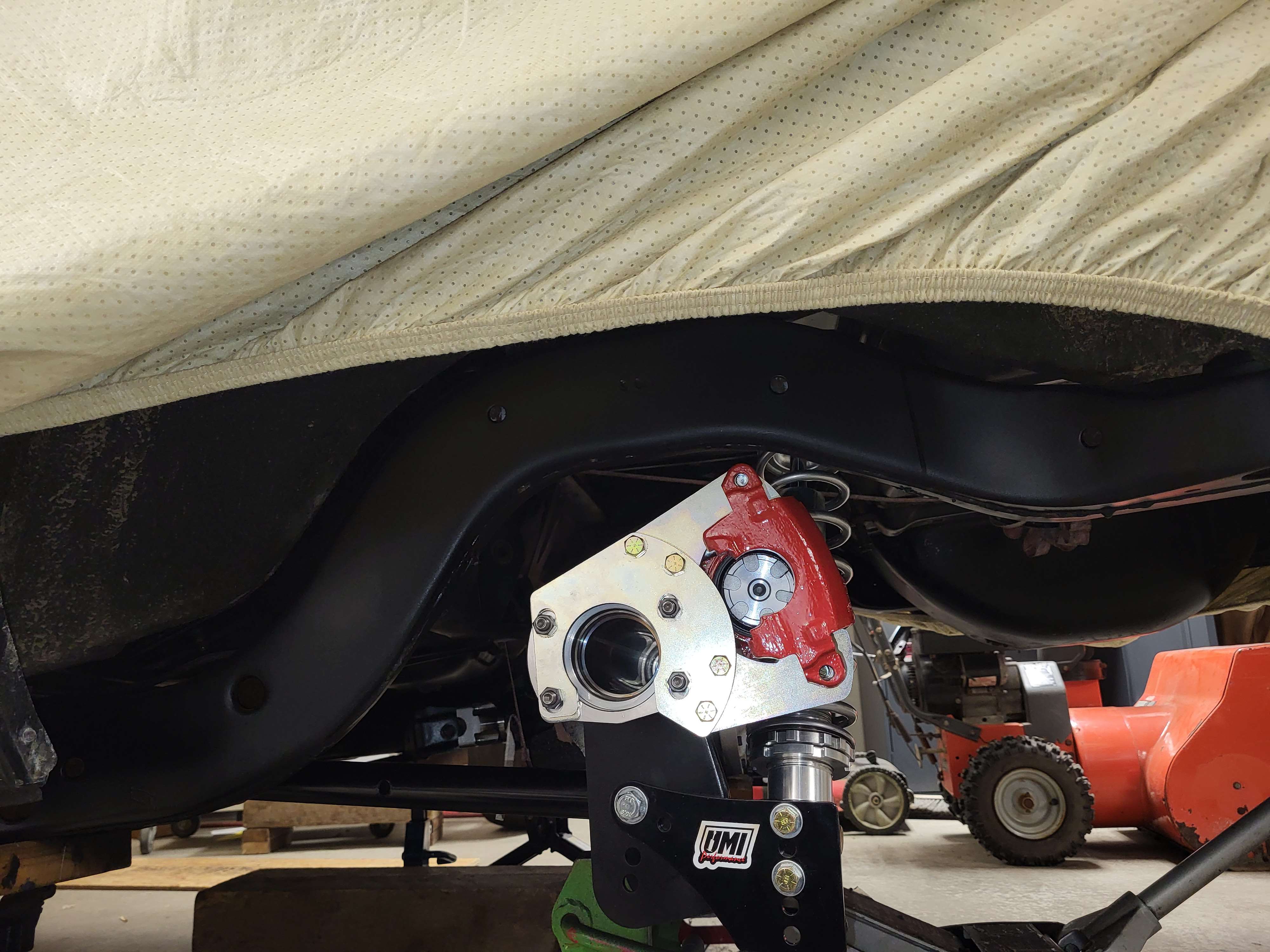

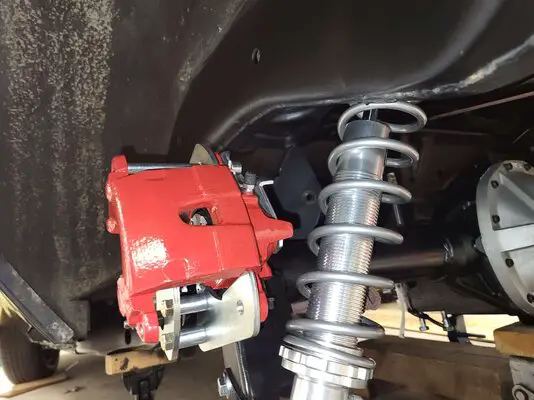

Attachments

  • 20221012_195818.jpg
    678.4 KB · Views: 99
  • 20221012_195830.jpg
    701.8 KB · Views: 104

Streetbu

Know it all, that doesn't
Supporting Member
May 22, 2011
3,721
11,525
113
Central NY
Need to make some right angle adapters to move the coilovers inward just a tick. Very simple with some angle iron and a welder. Check out my build thread towards the end when I switched to rear disc.

  • Like
Reactions: 2 users

oldsofb

Royal Smart Person
Supporting Member
Dec 7, 2007
1,368
3,962
113
Maryland
Had the same issue with my install. They were hitting the coil overs. I just clocked them to the front and done. Had to swap sides to keep the bleeders on top.


Hutch

  • Like
Reactions: 3 users

RabbitHoleSS

G-Body Guru
Dec 8, 2019
712
2,105
93
Indianapolis
Most kits will instruct you to mount the calipers opposite of the shocks for clearance. Mine didn't come close so I mounted them on the back, but I made a bracket like Streetbu mentioned.

  • Like
Reactions: 1 users

Streetbu

Know it all, that doesn't
Supporting Member
May 22, 2011
3,721
11,525
113
Central NY
RabbitHoleSS

Post #825


  • Like
Reactions: 1 user

CopperNick

Comic Book Super Hero
Supporting Member
Feb 20, 2018
3,347
3,011
113
Canada
The only difference that I can see with clocking at the 9 o'clock position vs the 3 o'clock one, is the one 9 o/c, may cause the rear end to rise slightly during braking due to rotation, and the other, 3 o/c may cause it to squat. What is going on is that the action of the caliper on the rotor acts on the suspension by loading or unloading it. One way you get a little rise and some dynamic weight transfer which can lighten or unload the rear end, while with the other you get squat and the weight tends to stay over the rear end increasing the downward force it applies to the road surface.

Most of all this is something the road course runners get into seriously simply because suspension loading and unloading affects how they get into and out of the various corners on a road course.

The bracket to move the lower mount inboard for additional clearance is a good idea because, apart from gaining the room, the shock gets moved into a more vertical position, meaning it can work more efficiently under load or unload, i.e. compression and rebound.



Nick

  • Like
Reactions: 1 users

Rt Jam

G-Body Guru
Mar 30, 2020
579
558
93
Ontario Canada

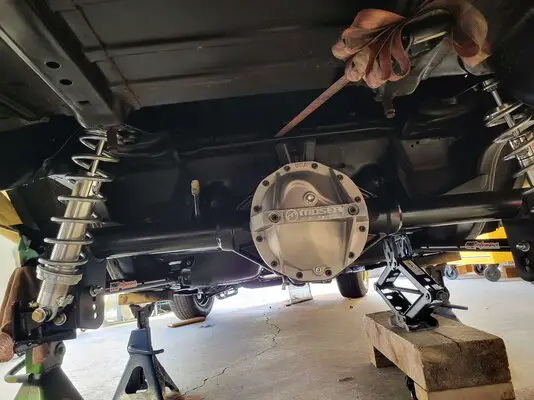

Well I tried in front and above axle. Zero chance this will clear the frame. Even behind there is only 2 or 3" between the caliper looks close to frame, probably fine if the car sits high.

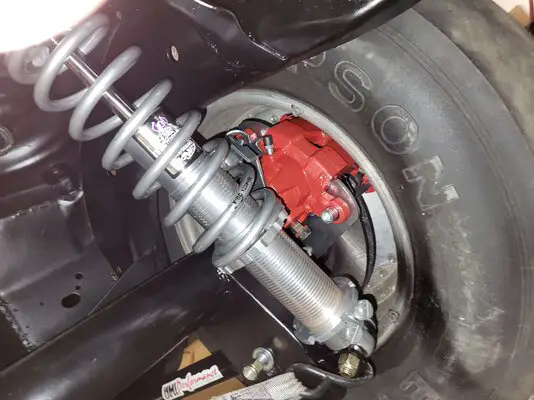

The first effort at mounting the coil over was using the UMI supplied lower mounts. Probably work for a stock lower control arm mount but I have a Moser housing with relocated mounting brackets and with the UMI mount. It hits the tire. So I will need to mount the stand off directly to the Moser relocated lower control arm bracket. It looks close but with the bottom of this all moving together. I don't think it will be a problem. Especially since I ran into my next clearance issue.


Attachments

  • 20221011_161524.jpg
    762.3 KB · Views: 96
  • 20221016_172616.jpg
    617.1 KB · Views: 93

CopperNick

Comic Book Super Hero
Supporting Member
Feb 20, 2018
3,347
3,011
113
Canada
Would a rim with a shallower backset move the wheel outward just enough to get you that clearance or would it crash against the edge of the wheel well lip?



Nick


Rt Jam

G-Body Guru
Mar 30, 2020
579
558
93
Ontario Canada

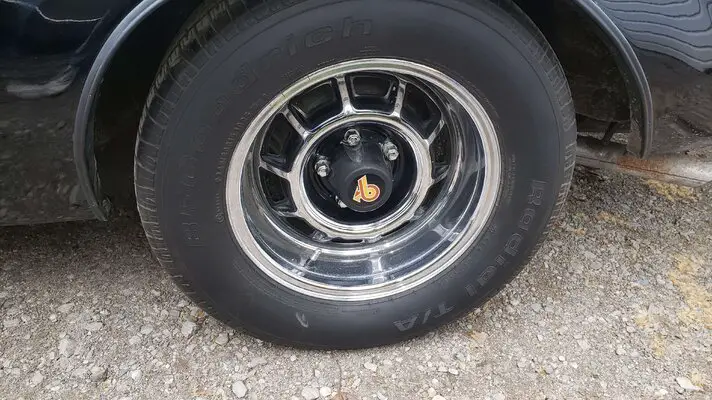

Next issue is caliper to rim clearance. I read alot about this disc kit working with 15" rims but the real truth is it needs 15" rims with a big barrel. My original 15" Grand National rims have a giant drop bead area making this a no go.

Yes Nick, the problem can be resolved with a different rim, I'm considering many options at the moment. I really wanted to run the original rims.
Going back to drums is not an easy swap $$ wise since I have big Ford bearings on this rear axle. I do like the 16" GNX rims, unsure of offset onto a GN and tire selection in 16" is not good. G body Parts has an aluminum GN wheel but unsure of barrel clearance. I did get a 15" Centerline to clear but I absolutely do not want to run those.

ET Street is the GN steel wheel, no fit.
Mickey Thompson is the 15" Centerline, lots of clearance.


Attachments

  • 20200411_171733.jpg
    1 MB · Views: 80
  • 20221016_172631.jpg
    685.9 KB · Views: 84
  • 20221017_130933.jpg
    899 KB · Views: 85
Last edited:
