Vacumm Diagram and A/C heater control vacuum diagram

Status
Not open for further replies.

amadorbarajas

Apprentice
Jan 13, 2010
51
0
6
Hemet, CA

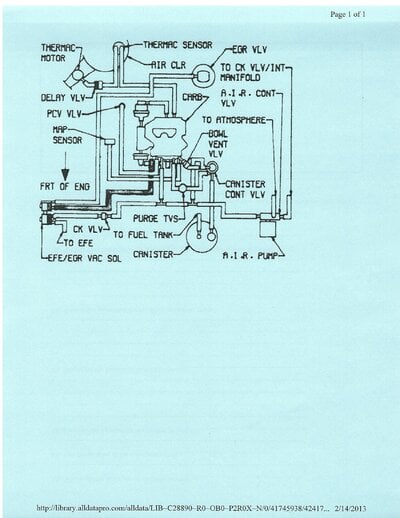

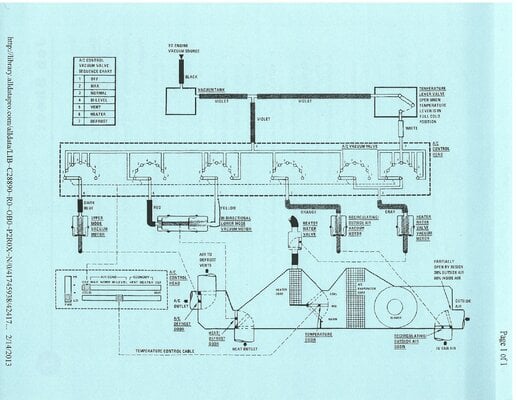

I got a hold of 2 diagrams for the 1982 Olds Cutlass Supreme with a V6 2 barrel carb. 1st is a vacuum diagram for hooking up the A/C and heater control correctly. Mine got stuck in default mode and has been nagging me since I want the vents working. 2nd is an engine vacuum diagram. Again, this is for the 231 V6. This is for Cali emissions, not to sure if that would make a difference.

P.S. I think the A/C one might work on other vehicles. Not to sure.


Attachments

  • Car Diagrams_Page_2.jpg
    Car Diagrams_Page_2.jpg
    839.8 KB · Views: 23,808
  • Car Diagrams_Page_1.jpg
    Car Diagrams_Page_1.jpg
    966.7 KB · Views: 24,429

mr evil

Moderator
Moderator
Aug 4, 2009
857
544
93
Sooke, BC, Canada
Thanks for submitting those, added to my collection :D


foxtrot

Royal Smart Person
Dec 19, 2008
1,489
590
113
USA
Step one would be to make sure that you have vacuum at the back of the heater control. To remove the heater control, you must first pull off the bezel and then remove the four screws that hold in the heater control. After step one, post your results here. Good luck!
