Vacuum Canister Reservoir

[Mac442]

Anyone using one of of these for the power brakes? Even the GM ball type canister? How did you route the lines from the booster to the reservoir?



[Pc3]

Mine is pump to check valve.. To canister to pump activator to booster valve ..booster



[565bbchevy]

I have a vacuum canister on both my Monte and Regal, the vacuum source goes to the canister then to back to the brake booster.
This is my Regal below, on my Monte I have a belt driven vacuum pump and a gauge.



[84cutspreme]

I have tank I hid under core support. goes from carb to tank, then to brake booster. I branched off before brake booster with check valve for stock vacuum can ball for ac/heat controls



[83StreetMachine]

^^^ I like that! ^^^

How did you mount it?



[84cutspreme]

^^^ I like that! ^^^

How did you mount it?

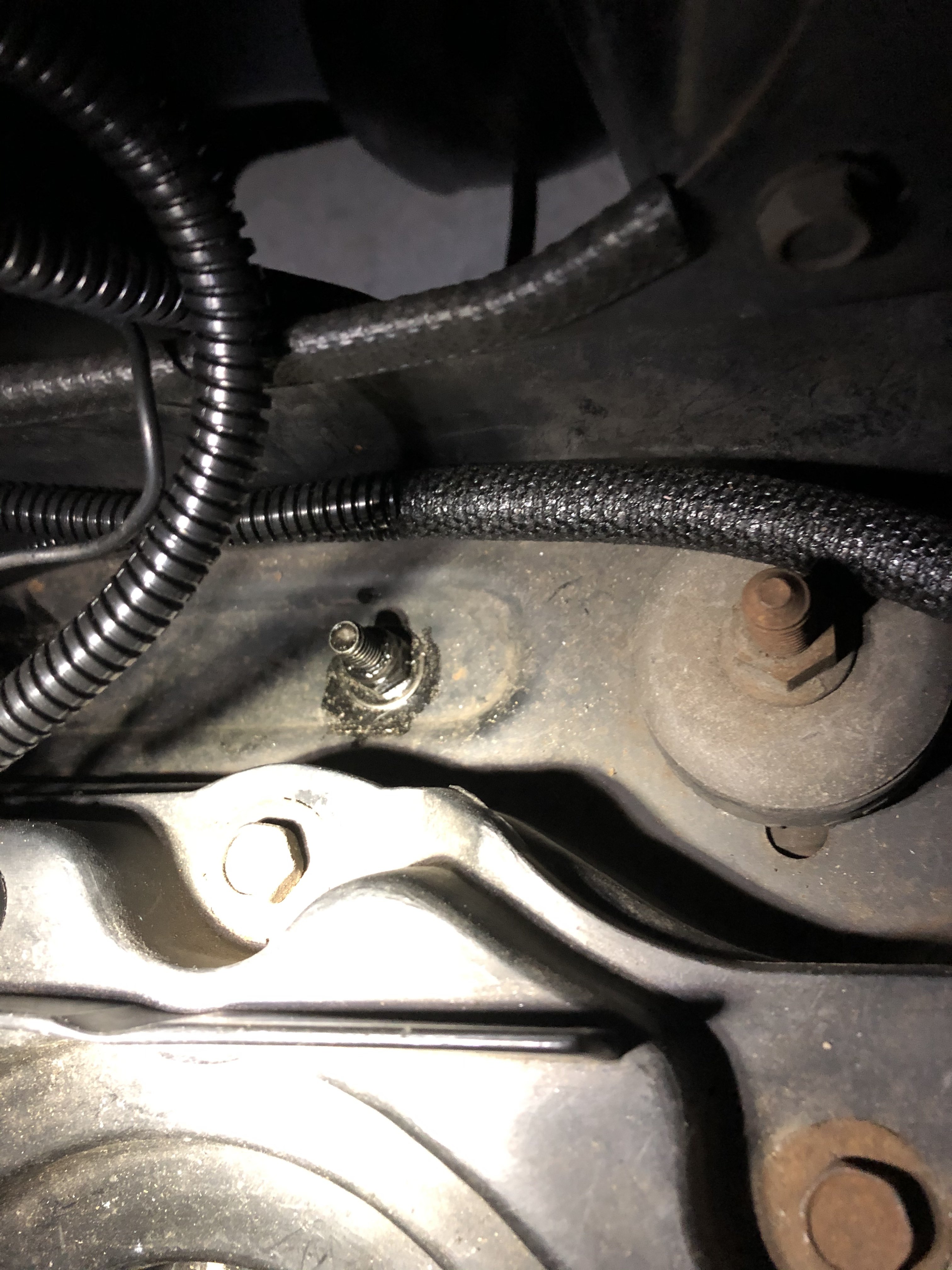

If you are talking about mine...it has two studs on tank. lined up almost perfect with some factory holes. I think I had to open up one of the holes a tiny bit. then the vacuum hoses run up and come through by horn to run in engine compartment and follow wheel well back to booster. feed comes from manifold back along firewall with wiring harness. I can take better pictures if you want them



[84cutspreme]

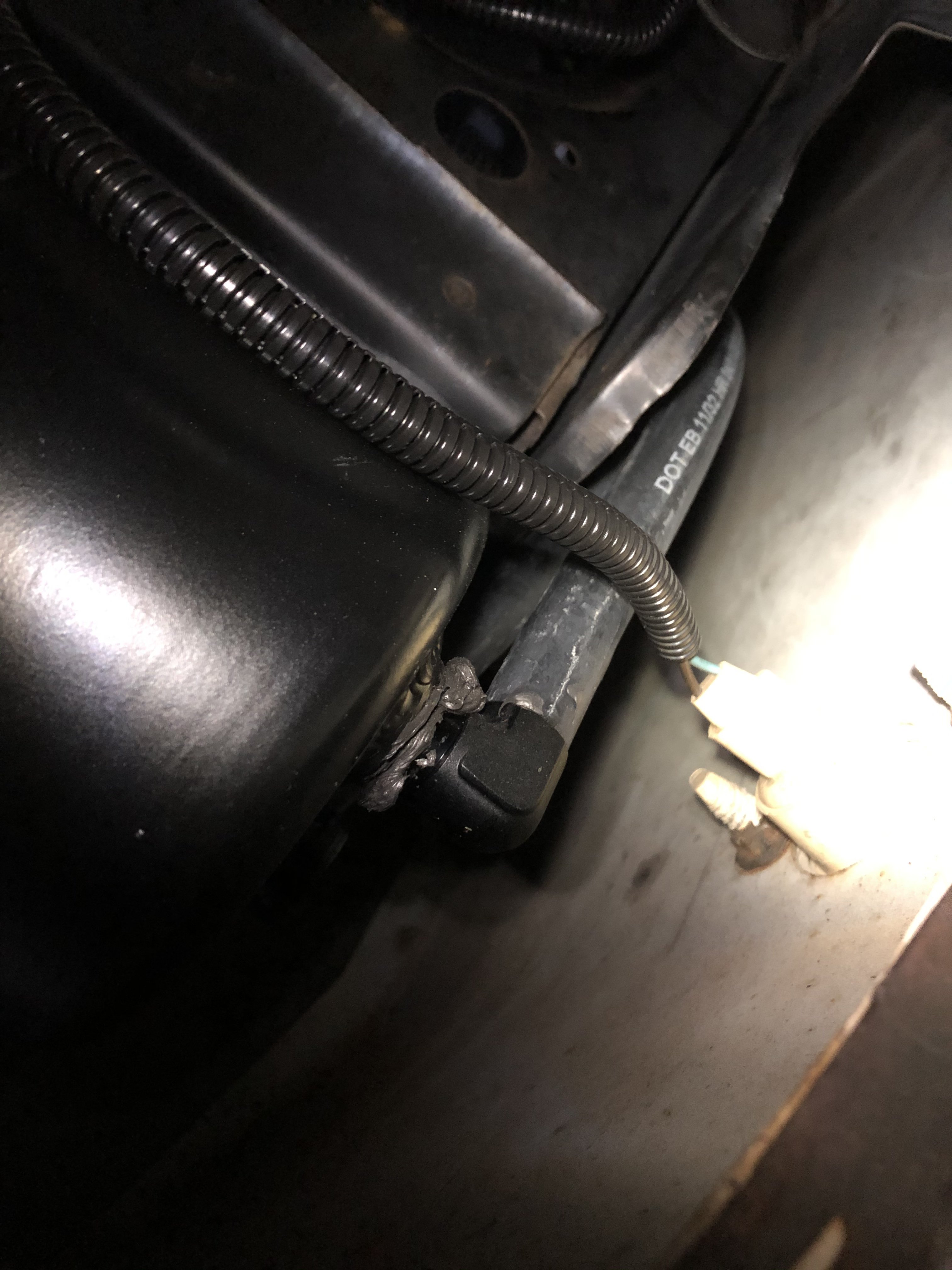

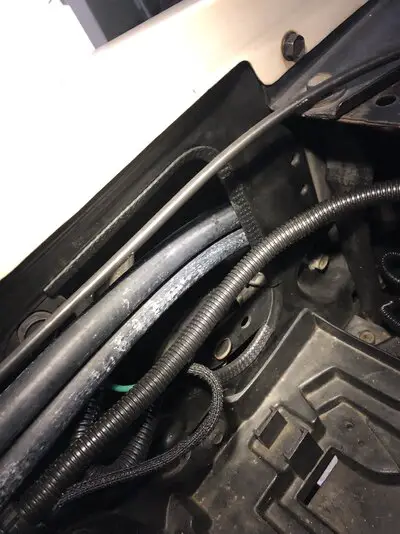

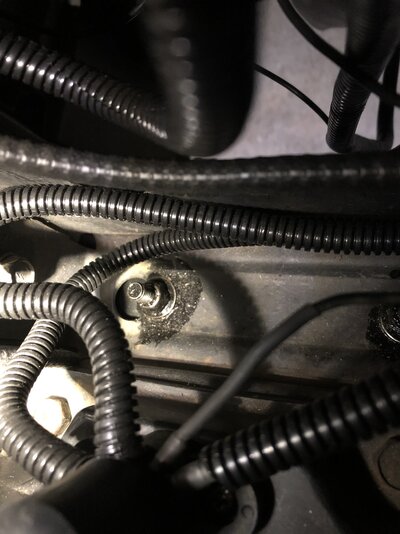

pics are not the best but you get the gist of it



[melloelky]

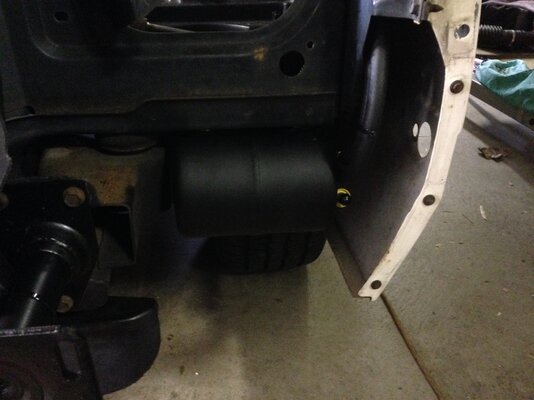

i stuck mine under the bumper,the pumps on the other side.



[83StreetMachine]

Awesome. Great simple solutions. Thanks for the pics!
