Headlight fitment issues.

[johnnunez29]

Here's the thread I posted the swap.

Thread 'Flash to pass dimmer switch'

Mar 15, 2022

Earlier this year L92 Olds brought up about swiching out to a newer flash to pass dimmer in another thread & between everyting else I've been researching I beleive I found the infor needed to do the conversion. First, the switch needed will be from a '94-'96 Fleetwood, '92-'95 Eldorado, '92-'96 Seville, '94-'96 Deville. P/N's from Rock Auto are DS203 (Standard Motor Products) & 1S4833 (WVE), Autozone has UDS423 (Duralast), O'Reilly's also carries DS203, Advance is DSC1098 (Carquest), Napa is DC150 (Echlin). It's also listed for some older models too but the Caddy listings will make it...

• pagrunt
• Replies: 27
• Forum: Electrical / Ignition / Starting

•

Thank you, didn’t see anything in the headlights connectors though. Also I’m not sure that the switch is pulling the dimmer that goes on column. Not even sure how they’re supposed to be connected. I purchased a rebuilt steering column from Mikes Monte’s so assumed it’s all working



[johnnunez29]

Here's the thread I posted the swap.

Thread 'Flash to pass dimmer switch'

Mar 15, 2022

Earlier this year L92 Olds brought up about swiching out to a newer flash to pass dimmer in another thread & between everyting else I've been researching I beleive I found the infor needed to do the conversion. First, the switch needed will be from a '94-'96 Fleetwood, '92-'95 Eldorado, '92-'96 Seville, '94-'96 Deville. P/N's from Rock Auto are DS203 (Standard Motor Products) & 1S4833 (WVE), Autozone has UDS423 (Duralast), O'Reilly's also carries DS203, Advance is DSC1098 (Carquest), Napa is DC150 (Echlin). It's also listed for some older models too but the Caddy listings will make it...

• pagrunt
• Replies: 27
• Forum: Electrical / Ignition / Starting

•

I did realize there’s a switch on the steering column. That is supposed to click when I pull the light switch. It’s not doing anything. I did mention the steering column was refurbished, maybe I did not properly connect this? Not sure where that would even be connected



[pagrunt]

I did realize there’s a switch on the steering column. That is supposed to click when I pull the light switch. It’s not doing anything. I did mention the steering column was refurbished, maybe I did not properly connect this? Not sure where that would even be connected

Check the rod that should be there between the dimmer & turn signal/multi-purpose lever switch pivot. Might not be seated as they can easily come dislogded when anything gets lossened. There should of been QA check before it was shipped.



[johnnunez29]

Check the rod that should be there between the dimmer & turn signal/multi-purpose lever switch pivot. Might not be seated as they can easily come dislogded when anything gets lossened. There should have been QA check before it was shipped.

Lights inside dim just fine. Not sure of that’s what it’s for. My lever on left of steering wheel doesn’t activate lights does it? The lights switch has 2 clicks. I’m assuming 1 click is low beams and the second click is high beam. Buy lever also says high and low so I’m a bit confused



[ELCAM]

The first position on the headlight switch is running lights (taillights and front marker lights). Pulled fully out turns on the headlights and keeps everything in the first position on.

Bright and dim is the switch on the steering column.



[johnnunez29]

The first position on the headlight switch is running lights (taillights and front marker lights). Pulled fully out turns on the headlights and keeps everything in the first position on.

Bright and dim is the switch on the steering column.

Oh damn. I was assuming wrong. Now I need to check if the running lights are on. I do know when pulled all the way out all 4 lamps are on. Not just the regulars



[ELCAM]

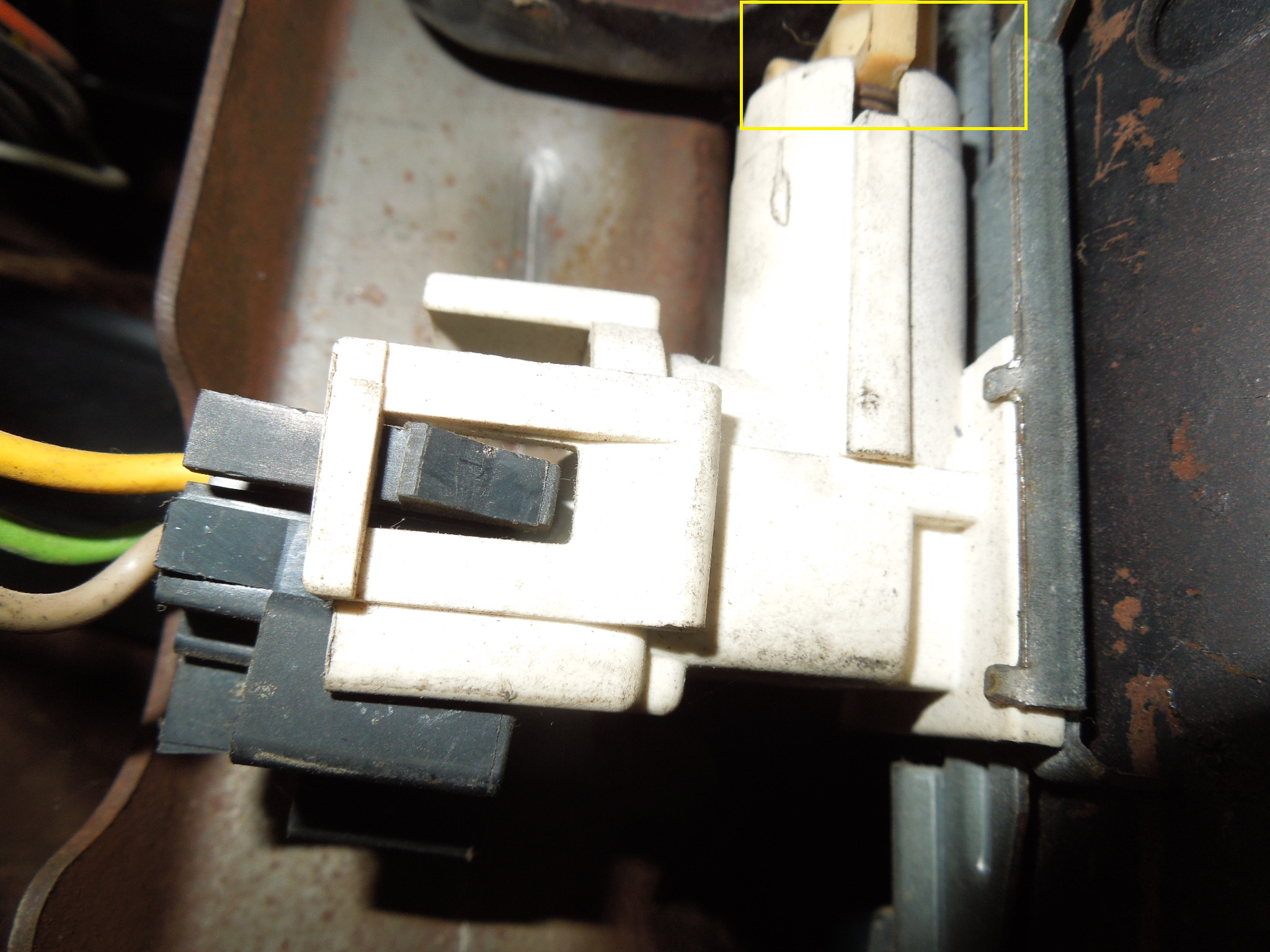

Dimmer switch on the column. Yellow square is where the linkage rod from the turn signal stalk operates the switch. Should be able to feel if it is being moved when you pull the TS lever forward and back.

Hard to see the rod that operates the switch because the switch is right behind the saddle bracket that hold the steering column.

The yellow wire is the power from the headlamp switch. Light green is Lo beam out to headlights. Brown wire is Hi beam out to the headlights.



[johnnunez29]

Dimmer switch on the column. Yellow square is where the linkage rod from the turn signal stalk operates the switch. Should be able to feel if it is being moved when you pull the TS lever forward and back.

Hard to see the rod that operates the switch because the switch is right behind the saddle bracket that hold the steering column.

The yellow wire is the power from the headlamp switch. Light green is Lo beam out to headlights. Brown wire is Hi beam out to the headlights.
View attachment 246994

I do not recall connecting any rods. How is this connected to switch



[ELCAM]

The rod goes under the saddle bracket then inside the plastic housing of the column. If the column was built by someone else this should have been done by them.



[johnnunez29]

The rod goes under the saddle bracket then inside the plastic housing of the column. If the column was built by someone else this should have been done by them.

So the only thing that activates that is the plug?
