1982 Malibu Wagon Tailgate Lock Clip and Glass Assembly Spring

[mlb602]

Good day,
Anyone have or know where I can get this clip and spring? Any help would be greatly appreciated. Thank you.



[ELCAM]

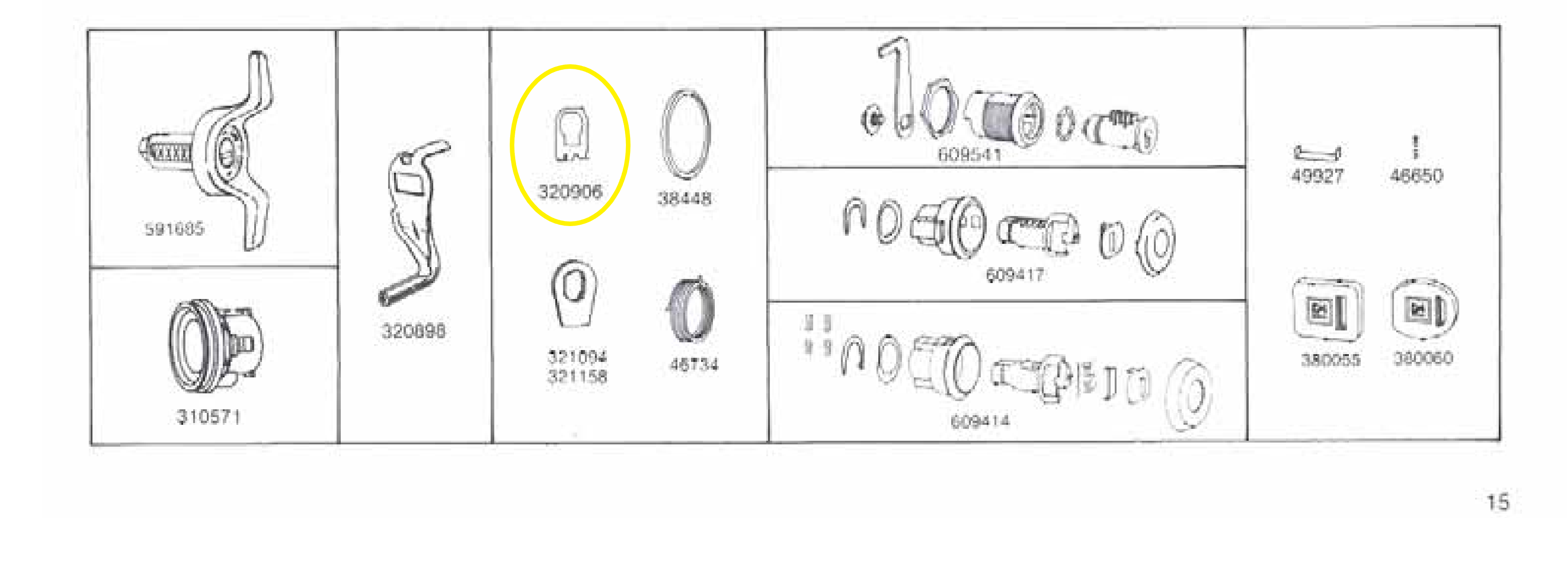

That clip is a Tailgate lock cylinder pawl retainer.

From the 1983 Briggs and Stratton (Now Stratec) catalog.

Seen these on fleabay from time to time.

Also try.

GM part number 3064844.

The spring is part of an assembly I doubt it can be had individually. Probably have to make your own.



[mlb602]

That clip is a Tailgate lock cylinder pawl retainer.

From the 1983 Briggs and Stratton (Now Stratec) catalog.
View attachment 228590
Seen these on fleabay from time to time.

Also try.

GM part number 3064844.

The spring is part of an assembly I doubt it can be had individually. Probably have to make your own.

Thank you



[newmexguy]

Have to wonder, is that clip the same on the door lock cylinders? If so, finding it used will become a lot easier.



[ELCAM]

Same 1983 Briggs and Stratton catalog. Door lock pawl clip has a different number.
