BUILD THREAD 1987 Olds 442 Project Build

[oldsofb]

Back with an update.

I check my thermostat before installing. It's marked 180 degree, and it opened at 183. Not too bad.


I get the Thermo Housing installed along with a few sensors I'll need in place to finish the harness.


I then install the Alt and Compressor, since they both have wiring hookups I'll need in place.


I ended up using the factory headlight connectors since the replacements had a different style terminal.


I lay down all the 12 awg power and grounds along with the 2 relays to begin building the harness.

The 12 awg 280 terminals are a close fit in the housings, but not too bad. I had to stretch the 16 awg rubber weather boots on the 12g wire and then shove them in the back of the connector independent of the terminal.

Cont.......



[oldsofb]

I picked the core support behind the battery as my spot to place the relays.

I build the harness and relay connectors with serviceability in mind by adding a 2 wire weather pack connector to be able to disconnect it from the main harness.


I'm using 40 amp relays with a 30 amp inline fuse holder.


It's mostly a 2 wire harness, so I use 1/4" braided loom.


With all the heat shrink installed over the butt connectors and ring ends and the loom over that, I do a last test fit of the harness.

The relays will be connected to a GM Positive Cable Junction Block I installed by the battery on the inner fender.


Hutch



[Clutch]

More catch up,

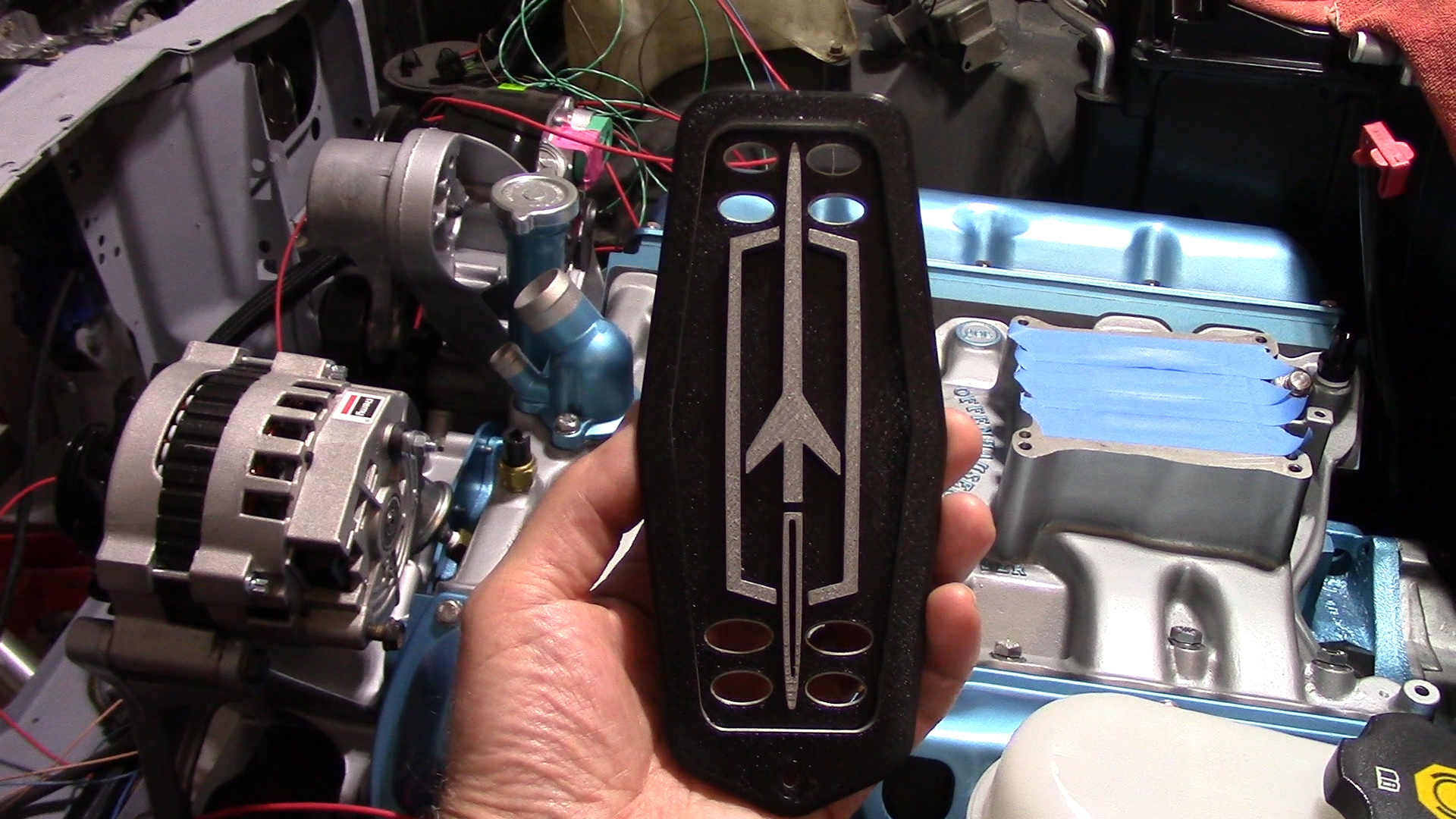

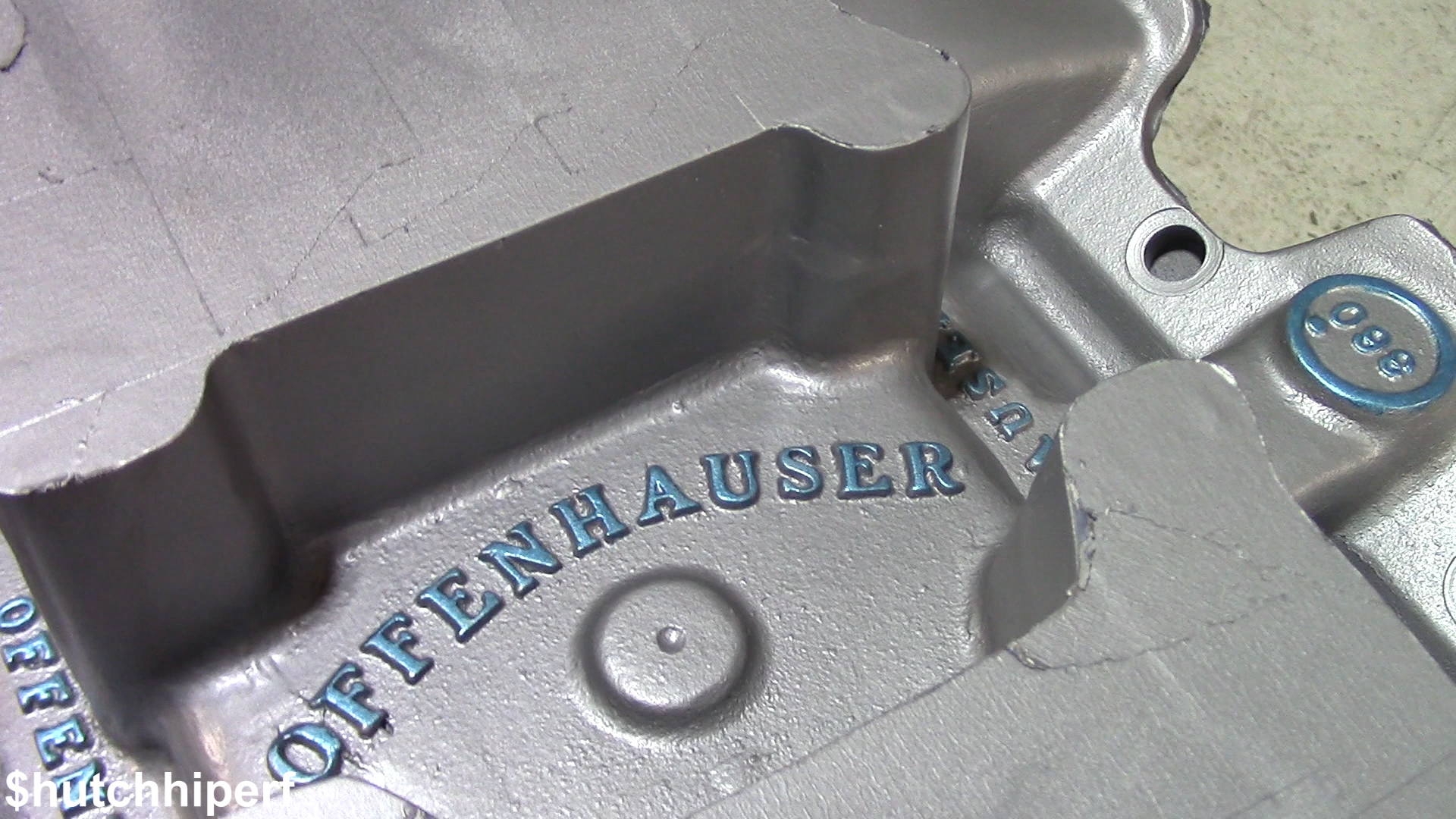

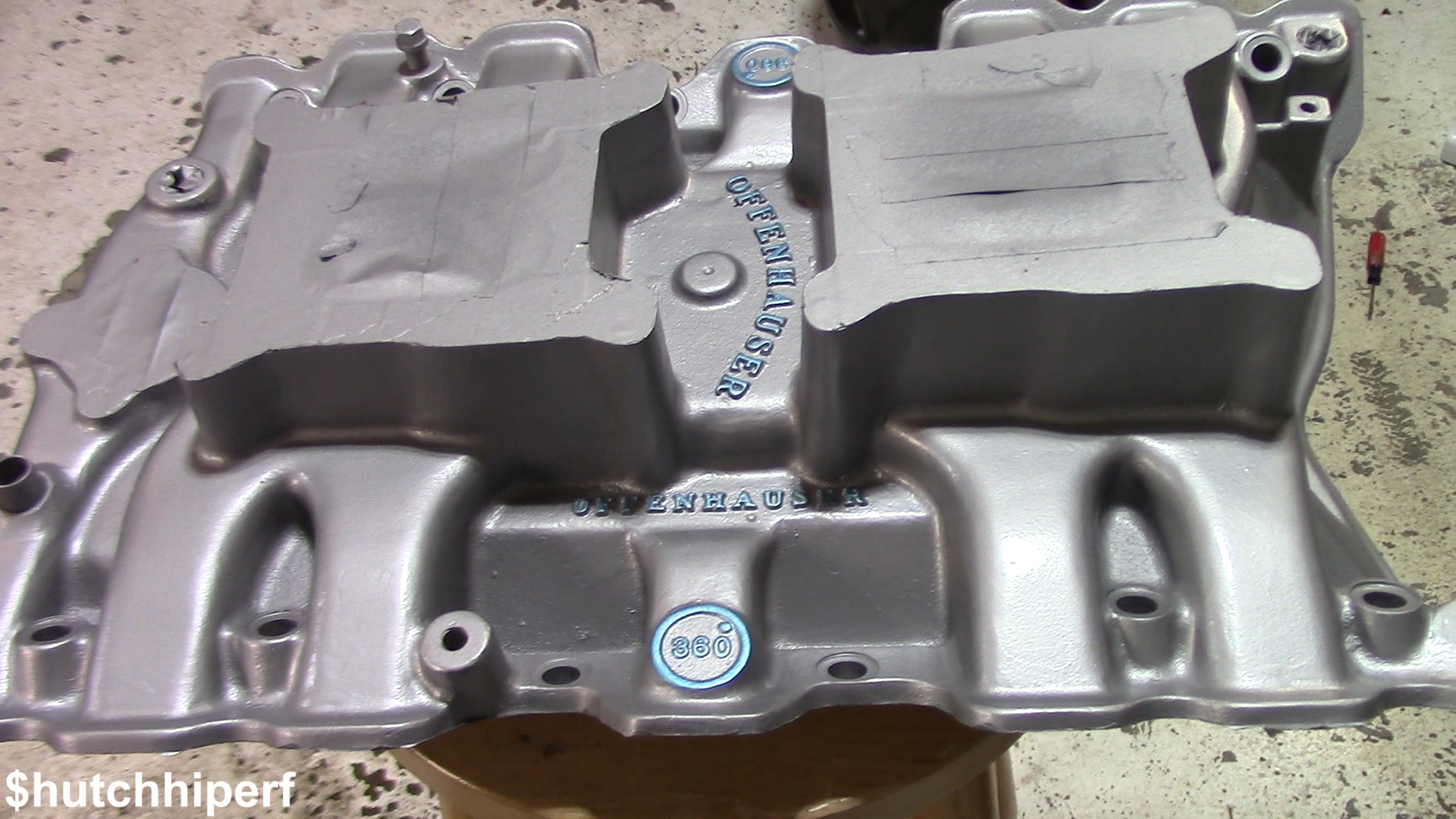

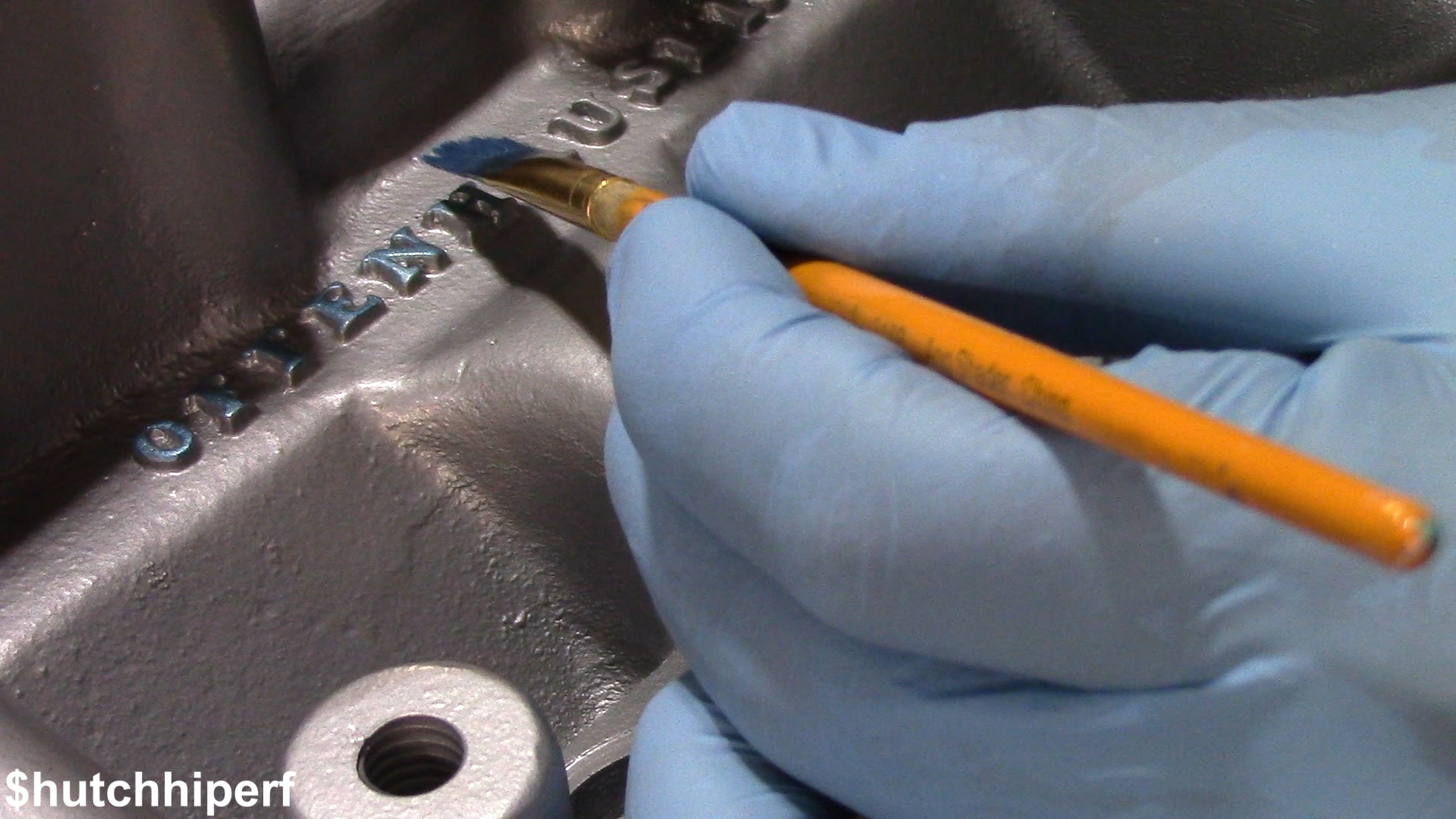

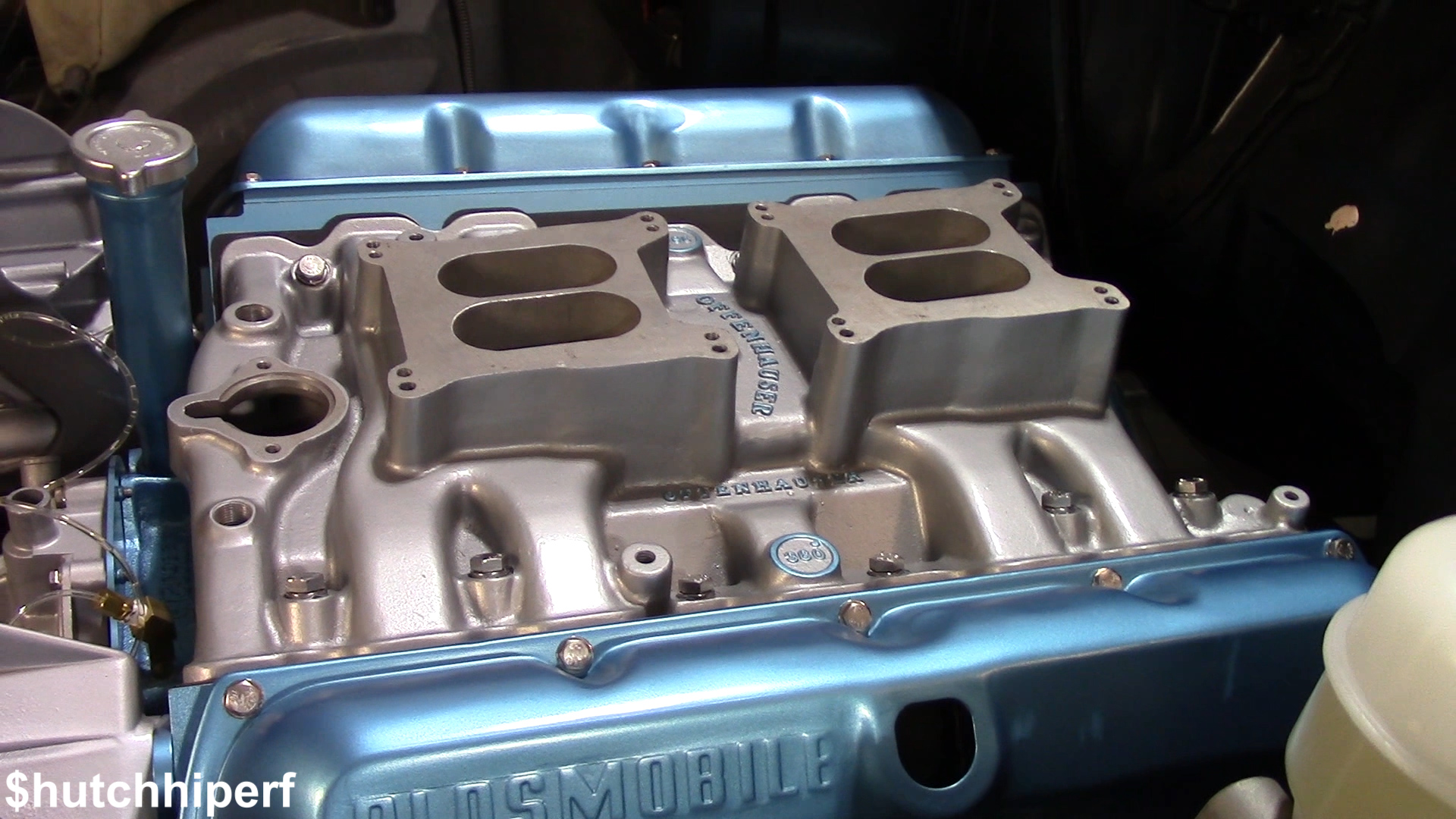

I painted, detailed and installed the intake.
View attachment 239578
View attachment 239579
View attachment 239580
View attachment 239581

Now back to the wiring harness.

Hutch

I'm just about to do the same thing to my performer 350
