Blazer Spindle Oddity

-dw-

Apprentice
Mar 15, 2021
88
33
Central MN
I do believe gbody bump steer is caused by the outer steering pivot point being too low or inner steering pivot being too high. From what I see in the pics you've gone the wrong direction. Howe had made a circle track center link that lowered the inner tie rod. Taller lower ball joints would raise the outer tie rod. Either would more effectively correct some to the factory bump steer.

  • Like
Reactions: 1 user

bs009

Apprentice
Thread starter
Jul 26, 2008
95
33
There's definitely a lot going on to factor into bump steer with the control arm angles that these cars have and the way things change while steering. I'm by no means an engineer and haven't done a ton of research into it, but the kits seem to have pretty noticeable success from what I've heard and are mimicked by a few different companies. lowering the pivot point for the outer tie rod seems to be the way all of the bump steer kits are installed from what I've seen so I'm just following those guides.

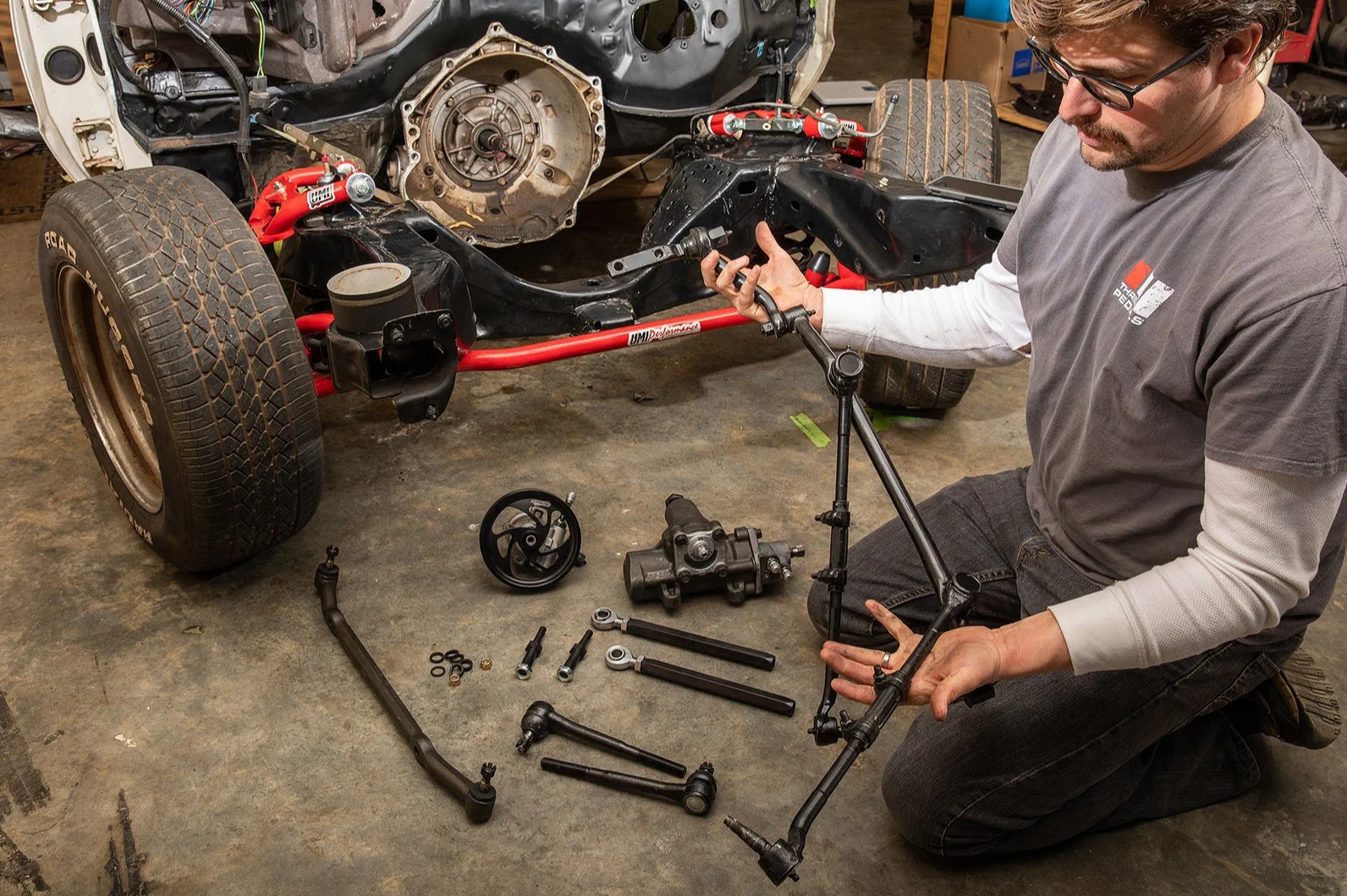

Here's UMI's instructions for their kit:

TRZ's kit is what I used here because I couldn't find anyone who had UMI's kit in stock when I needed it:

  • Like
Reactions: 1 users

scoti

G-Body Guru
Supporting Member
Sep 5, 2019
902
93
Texas
G-body bump steer issues are documented as a result of the steering arm pivot point being low. B-body spindle swaps made it even worse.

  • Agree
Reactions: 1 user

Streetbu

Know it all, that doesn't
Supporting Member
May 22, 2011
2,753
113
Central NY
G-body bump steer issues are documented as a result of the steering arm pivot point being low. B-body spindle swaps made it even worse.
Incorrect. Hence why all of the bump steer kits move the tie rod downwards. I needs to be parallel to the lower control arm and in the stock location, it's too high.

  • Agree
  • Like
Reactions: 1 users

86LK

Apprentice
Jul 23, 2018
85
18
don't forget that his pictures show him up on jackstands. you're not gonna get a real idea of his geometry until he's sitting on the ground

  • Like
Reactions: 1 user

Streetbu

Know it all, that doesn't
Supporting Member
May 22, 2011
2,753
113
Central NY
I would have to disagree. The geometry appears correct at ride height, the problem comes when the suspension ISN'T at ride height. Whether it's at extension or compression, hence, bump steer.

  • Like
Reactions: 1 user

86LK

Apprentice
Jul 23, 2018
85
18
I would have to disagree. The geometry appears correct at ride height, the problem comes when the suspension ISN'T at ride height. Whether it's at extension or compression, hence, bump steer.
I'm not saying the damage is not there, what I'm saying is you can't tell how bad it is until it sits on the ground with a proper load on it. The driver side is obviously out of whack, but take a look here at them side by side. It's hard to tell but it looks like the passenger side may have gotten whacked too as it looks like the two lower nuts in front back don't line up in parallel. take a look at the other ones that were posted as a comparison.







bs009

Apprentice
Thread starter
Jul 26, 2008
95
33
I think we have two threads of thought going on here now between my issue and what the bump steer correction kits do.

I have no doubt both of my knuckles are FUBAR after seeing the pics Squag posted. Also consider that in the pics I took I can pretty much guarantee the angles the photos were taken from were not symmetrical side to side.
Once the new ones are installed I think I'll see different clearances between the wheel and the tie rod on both sides because what I have now is pretty broken and probably has been the real cause of my horrendous bump steer I've been experiencing for a while. I have not even touched the adjustment capabilities on the bump steer kit either yet so I'm sure it still needs some tweaking.

As far as how the bump steer kits work though I think we'd need a full picture of both sides of the tie rod with both pivot points and the control arms to really see if things are parallel. But then also need to consider typical ride height vs what happens when one side reacts to a bump too to see how that might change the toe; things get complicated fast and this is where I'm just going to try out what the manufacturers of the kits suggest.

  • Like
Reactions: 1 user

bs009

Apprentice
Thread starter
Jul 26, 2008
95
33
Got the new ones installed today, thanks to Jamcar for getting them out so soon!
Assuming the rest of the car is road worthy I'm going to try and get an alignment tomorrow!

Driver side was definitely annihilated, passenger side seems like it wasn't actually too far off though. I just replaced both of them though, better safe than sorry.

New knuckle installed on the driver side. This side was pointed straight with the old spindle so that's how bad it was.


I did tune the bump steer kit as best as I could, ended up removing every single one of the spacers it came with so this is about is parallel as the lower control arm and the tie rod can get on my car. I'm using 5658 springs with about 2400lbs on the nose so the car is lowered a little. The springs are new too so it's going to settle a little lower.
Wonder if they've built to kit the suit everything from lowered cars to donks or something to have that much adjustability. This does seem to have placed the tie rod ends higher than the stock position on my car probably because of how low it is.

Passenger side:

Driver side:

  • Like
Reactions: 4 users
