BUILD THREAD “The Juggernaut”

Well, I was gonna do a big long post detailing on the fabrication and welding in of the driver’s side crossmember notch, but it occurred to me that most likely nobody will probably really give a sh*t. Much beyond “is it done yet?” and “how did it turn out?” at least.

So to that end, I’m gonna try and stick to the Cliff notes version instead.

I had originally thought that this side would be easier and go a lot quicker, but as I came to find, it was actually quite a bit more difficult. Specifically when it came to trying to tie into the existing floor pan grooves. The front was easier than the back, I simply traced the contour onto the boxed section, and transferred the peaks to the edge (shown in red marker here):



I then ran it into the bead roller as far as I could, and I had what I needed.



I had this one little contour that ended right at the edge of the boxed section that wasn’t gonna fly with the roll I had built into it:



So I cut it out and simply shortened it up a bit and placed it further back.



Some additional work needed to be done to make it flow properly, but overall I had the front fitting fairly well.





From there, it was time to turn my attention to the back. Starting with cutting out and welding in a patch to repair a spot weld that Mike had torn cutting the outer seat mount out.





I wanted a tighter radius to the back edge than the front, so I found a scrap piece of stainless tubing that had a diameter I liked. I tack welded it along the horizon line, and bent the metal around it. This worked pretty damn well.



What didn’t work particularly well, was trying to replicate the grooves in the floor on the backside of the boxed section. After experimenting with the bead roller, I quickly found out that even my deepest dies wouldn’t give me enough depth to match the grooves.

So, it went old school and ugly:





I had to do a temporary “tack in place” of the whole thing to get all the tabs to align with the floor, and once they were, I “bridge” tacked them to each other to keep them locked in.



A lot of welding and grinding later, I finally had something reasonably acceptable to work with. BTW and FYI, grinding and shaping welds on inside curves with a carbide burr on a die grinder sucks donkey balls.



After still more work that’s not worth mentioning, I had it fitting pretty good now:





Time to burn it in all permanent-like. No pictures of it in progress as that’s boring AF, but here’s the end result.





Mini milestone moment for sure. Then it was on to the outer front seat mount. I added a matching flange around the perimeter where we had cut it to fit, then punched some spot weld holes in the flange and a couple other places:



Carefully placed and aligned it with our reference marks, then made it one with the car again.
Finished product:











Almost done this side, just have to address the last mount, the front inner. It’s going to have to lose a lot of elevation now.



So yeah, I know it was still a long post, but it really was the Cliff notes version. The actual work and details that went into making this a reality were far more in depth.

That’s it for now gents, the transmission tunnel phase will be happening shortly. I’ll post again when I get to that point. Keep the shiny side up.

D.

Well, I was gonna do a big long post detailing on the fabrication and welding in of the driver’s side crossmember notch, but it occurred to me that most likely nobody will probably really give a sh*t. Much beyond “is it done yet?” and “how did it turn out?” at least.

So to that end, I’m gonna try and stick to the Cliff notes version instead.

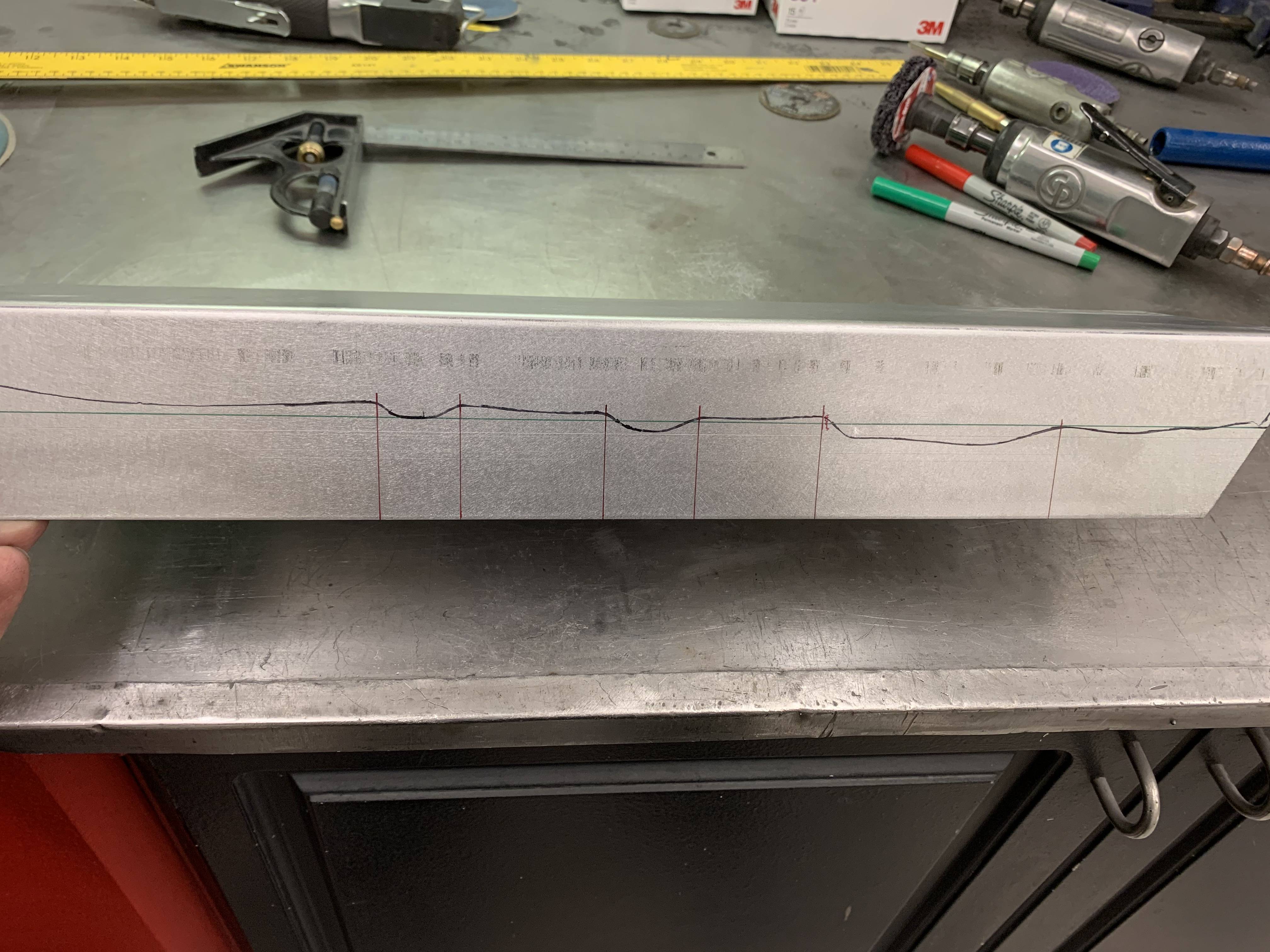

I had originally thought that this side would be easier and go a lot quicker, but as I came to find, it was actually quite a bit more difficult. Specifically when it came to trying to tie into the existing floor pan grooves. The front was easier than the back, I simply traced the contour onto the boxed section, and transferred the peaks to the edge (shown in red marker here):

View attachment 187913

I then ran it into the bead roller as far as I could, and I had what I needed.

View attachment 187914

I had this one little contour that ended right at the edge of the boxed section that wasn’t gonna fly with the roll I had built into it:

View attachment 187915

So I cut it out and simply shortened it up a bit and placed it further back.

View attachment 187917

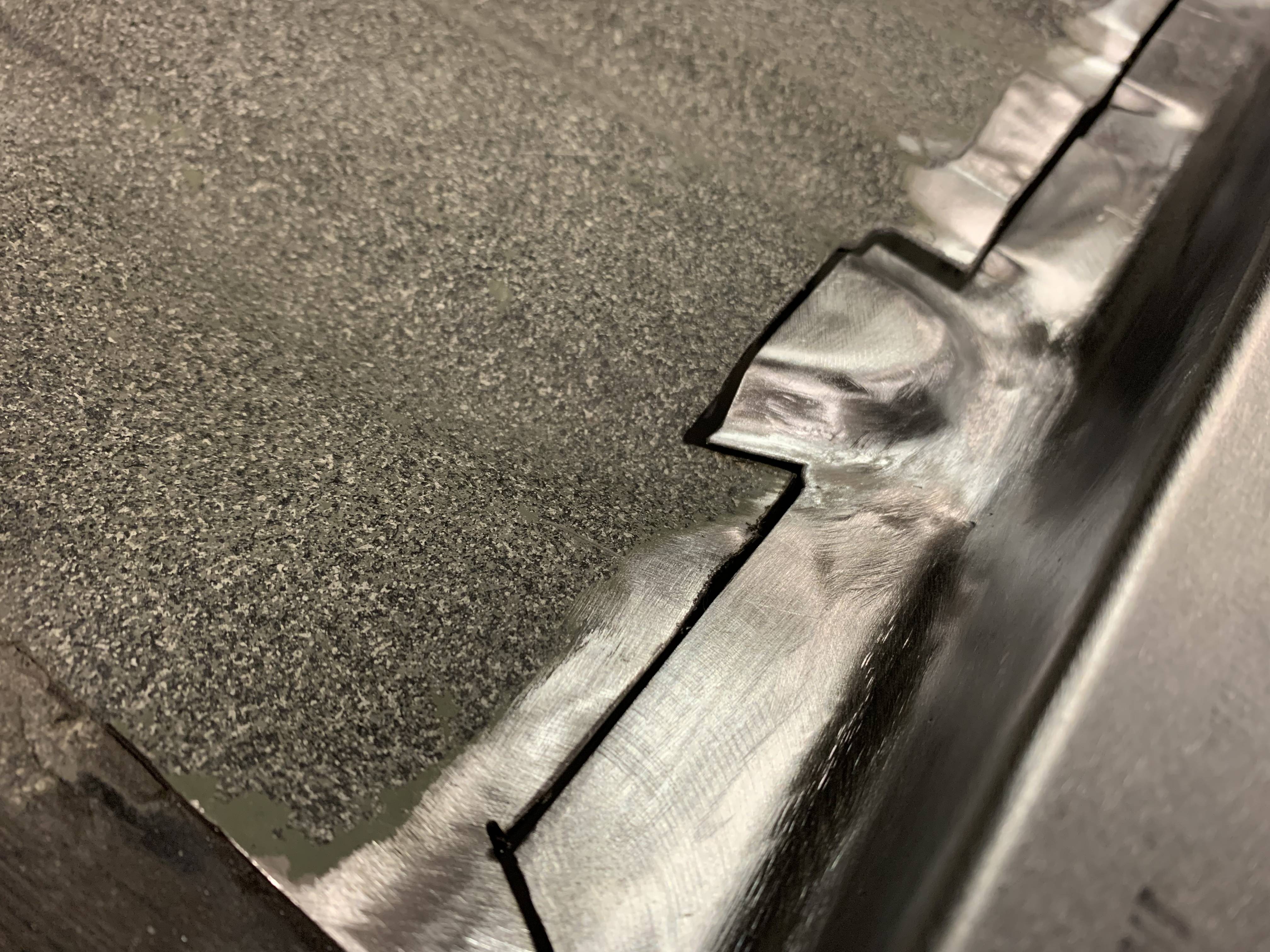

Some additional work needed to be done to make it flow properly, but overall I had the front fitting fairly well.

View attachment 187918

View attachment 187919

From there, it was time to turn my attention to the back. Starting with cutting out and welding in a patch to repair a spot weld that Mike had torn cutting the outer seat mount out.

View attachment 187920

View attachment 187921

I wanted a tighter radius to the back edge than the front, so I found a scrap piece of stainless tubing that had a diameter I liked. I tack welded it along the horizon line, and bent the metal around it. This worked pretty damn well.

View attachment 187923

What didn’t work particularly well, was trying to replicate the grooves in the floor on the backside of the boxed section. After experimenting with the bead roller, I quickly found out that even my deepest dies wouldn’t give me enough depth to match the grooves.

So, it went old school and ugly:

View attachment 187924

View attachment 187927

I had to do a temporary “tack in place” of the whole thing to get all the tabs to align with the floor, and once they were, I “bridge” tacked them to each other to keep them locked in.

View attachment 187925

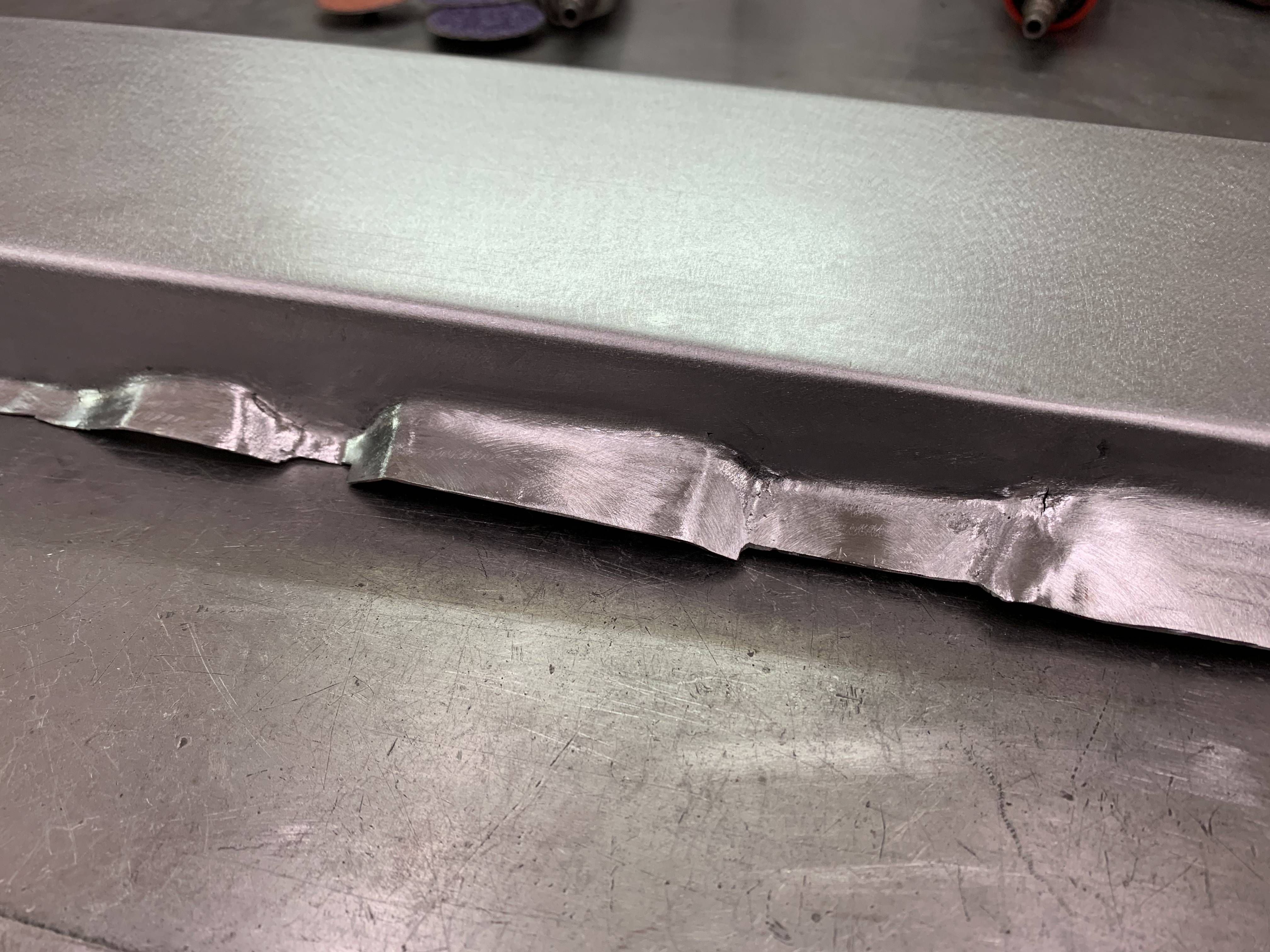

A lot of welding and grinding later, I finally had something reasonably acceptable to work with. BTW and FYI, grinding and shaping welds on inside curves with a carbide burr on a die grinder sucks donkey balls.

View attachment 187928

After still more work that’s not worth mentioning, I had it fitting pretty good now:

View attachment 187929

View attachment 187930

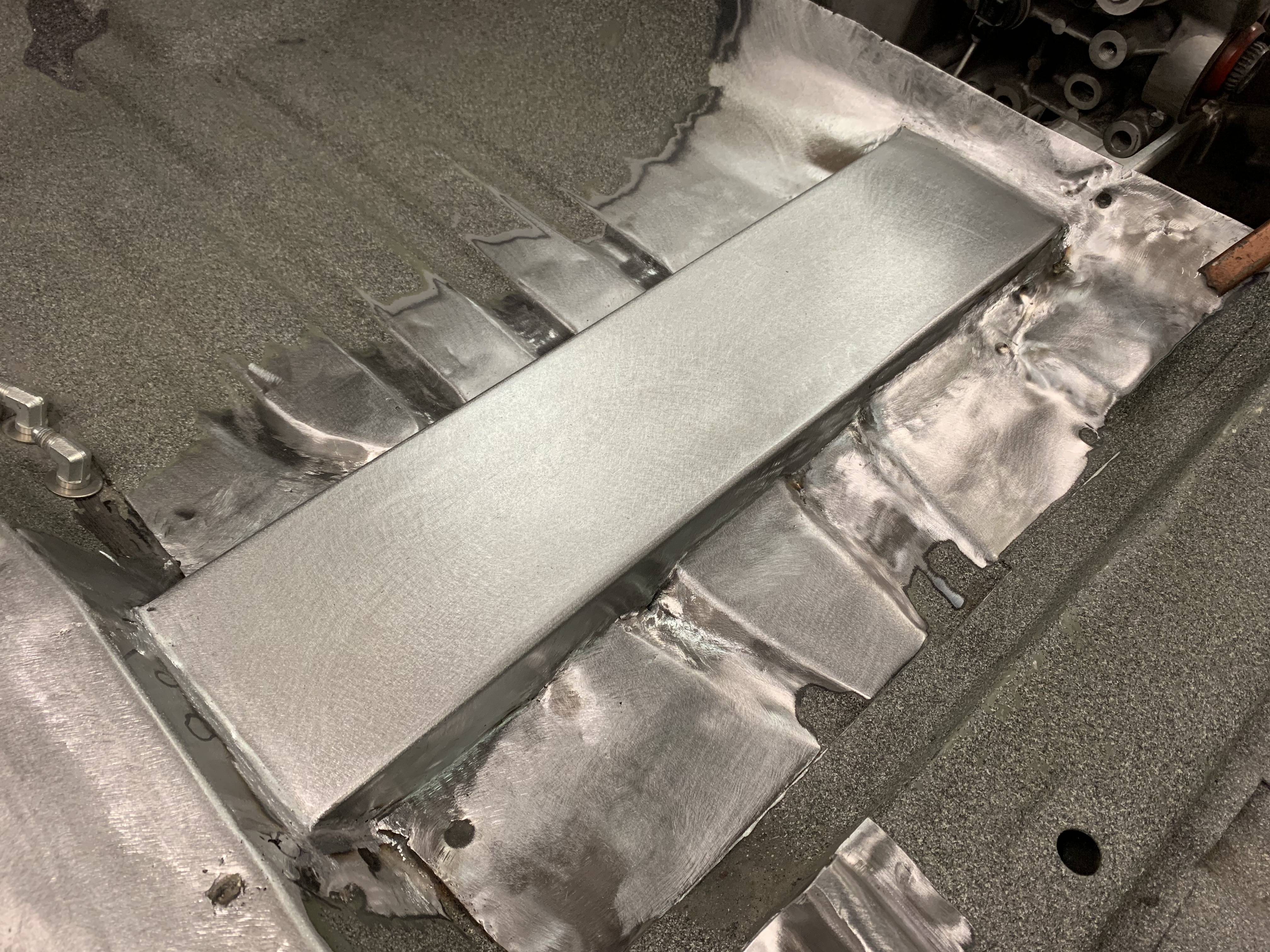

Time to burn it in all permanent-like. No pictures of it in progress as that’s boring AF, but here’s the end result.

View attachment 187931

View attachment 187932

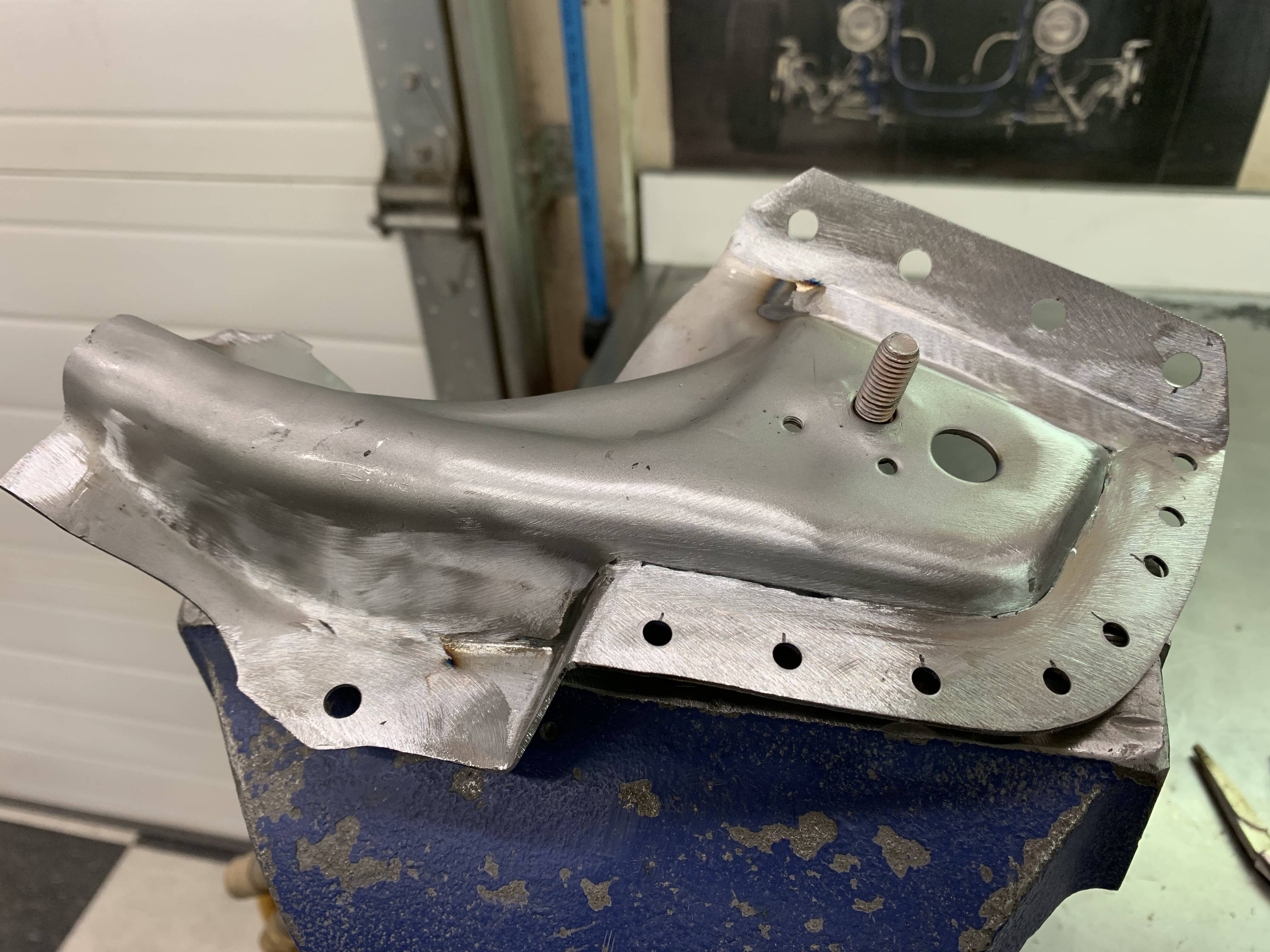

Mini milestone moment for sure. Then it was on to the outer front seat mount. I added a matching flange around the perimeter where we had cut it to fit, then punched some spot weld holes in the flange and a couple other places:

View attachment 187933

Carefully placed and aligned it with our reference marks, then made it one with the car again.

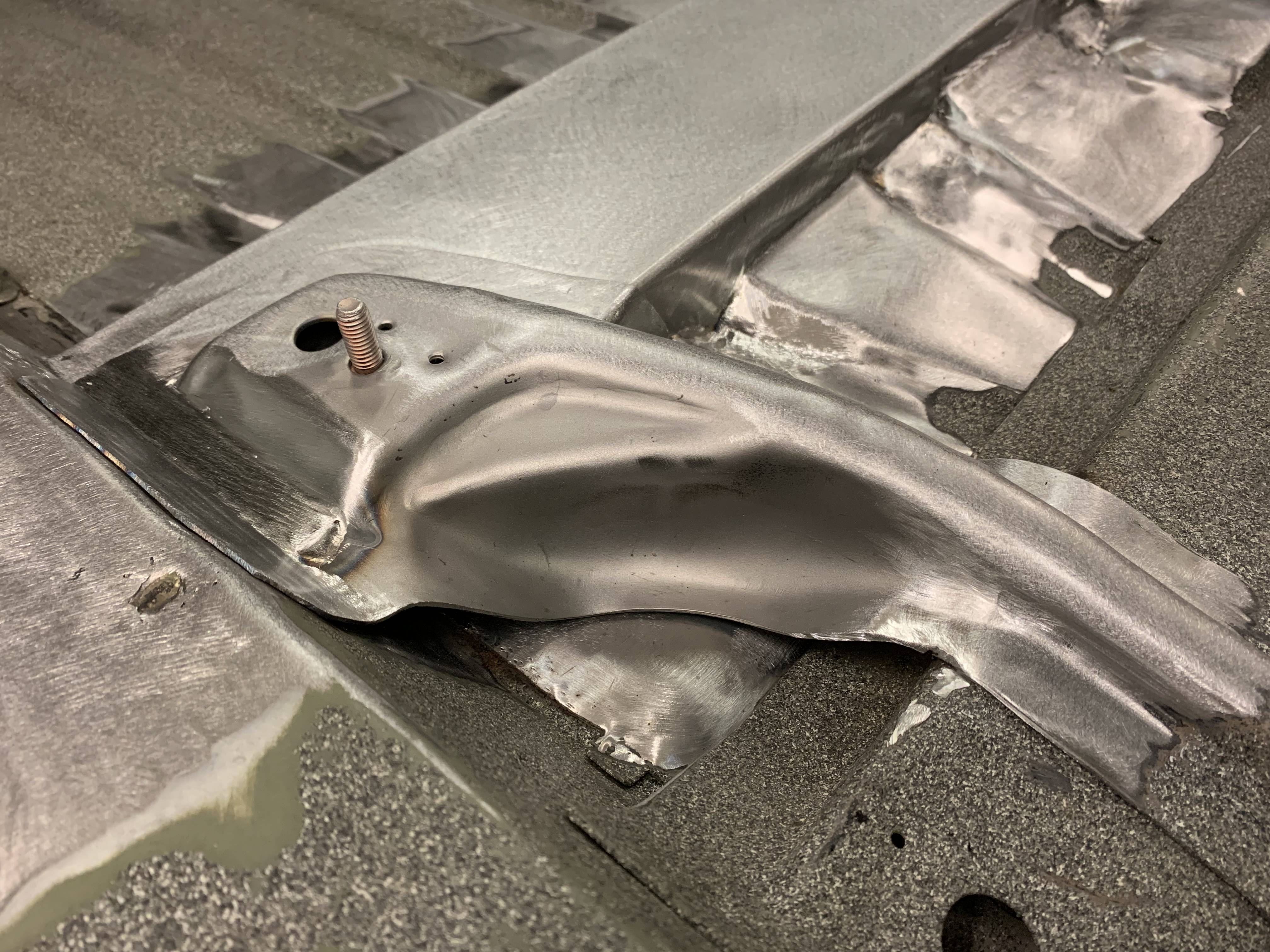

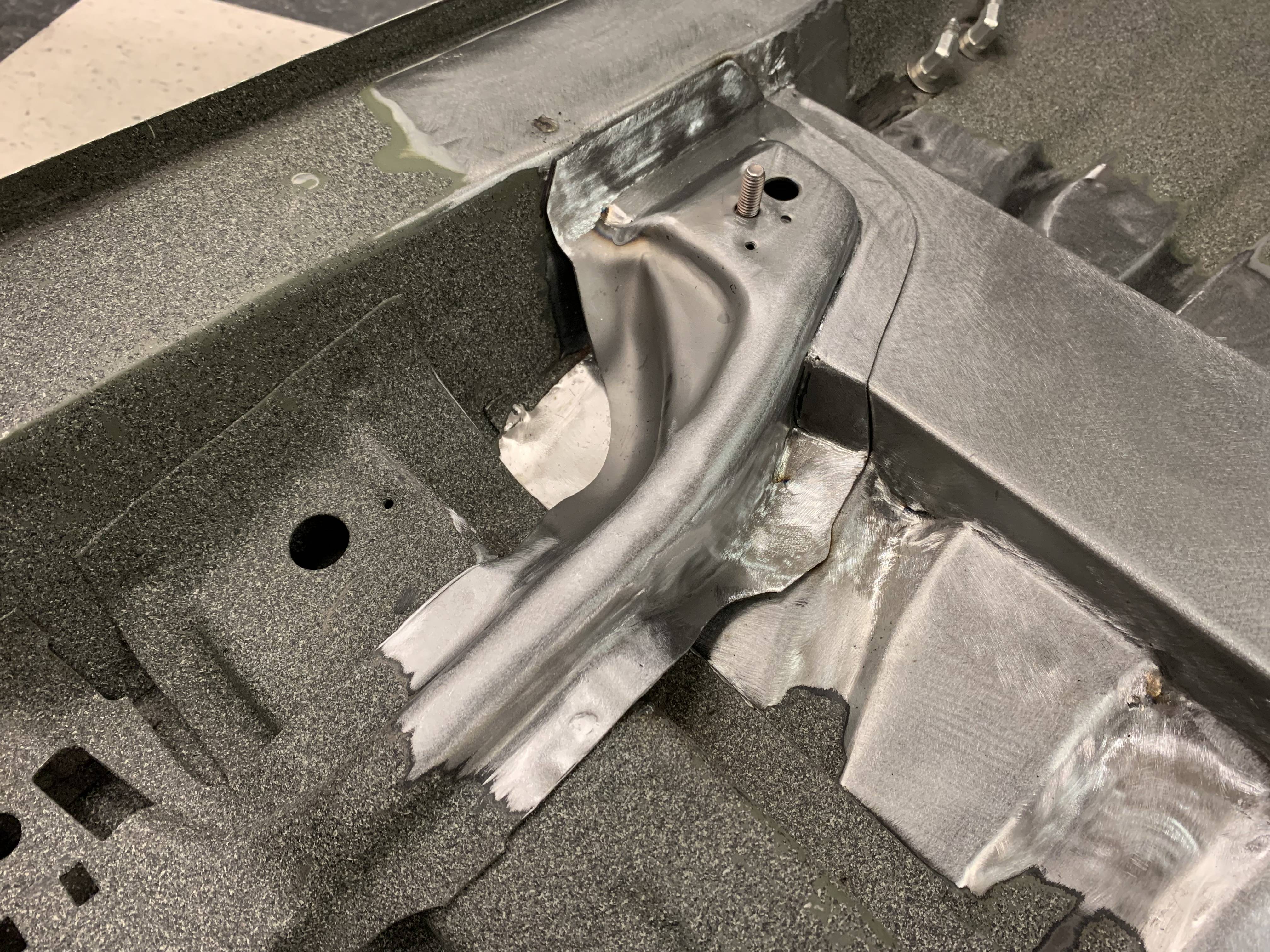

Finished product:

View attachment 187934

View attachment 187935

View attachment 187936

View attachment 187937

View attachment 187938

Almost done this side, just have to address the last mount, the front inner. It’s going to have to lose a lot of elevation now.

View attachment 187939

So yeah, I know it was still a long post, but it really was the Cliff notes version. The actual work and details that went into making this a reality were far more in depth.

That’s it for now gents, the transmission tunnel phase will be happening shortly. I’ll post again when I get to that point. Keep the shiny side up.

D.

trailer park boys bubbles GIF

it looks pretty custom.

Actually it should be all but invisible once the carpet and seats are back in. The bulk of the boxed sections should be hidden underneath the seats.

That’s the hope anyways.

Reminds me of Michaelangelo's Moses and the forearm/pinky detail. Critical to the piece, but overlooked and under appreciated by the casual observer.


Reminds me of Michaelangelo's Moses and the forearm/pinky detail. Critical to the piece, but overlooked and under appreciated by the casual observer.


Wow, The Juggernaut being compared to fine classical art by MHM. Didn’t see that one coming!
(Thanks Mike)

It's kind of unfortunate you have to cover it up. Extremely nice work!

Thank you sir. Much appreciated.
😊

The Marine of sheet metal work - Improvise, adapt, overcome. Great work as always D. Metal work p*rn for sure.

Never really thought of it that way, but I suppose it could apply here. I just wrote it off as doing whatever was necessary to accomplish the task at hand.
Thanks for the compliments!

Wow, The Juggernaut being compared to fine classical art by MHM. Didn’t see that one coming!
(Thanks Mike)

Are you suggesting that I am too unrefined to know the fine arts?

Screw You All The Hangover GIF


😉
