LS turbo clocking and intercooler routings options

Sodee

Greasemonkey
Feb 1, 2018
186
43
My approach is similar to NorthernRegals, I just got tired of playing with it and went to town with a cutoff wheel. I'll clean it up later, or maybe not. Depends on how I feel lol

3" piping, 4" core, turbo will sit a little further from the engine than yours behind the inner passenger headlight

  • Like
Reactions: 2 users

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
My approach is similar to NorthernRegals, I just got tired of playing with it and went to town with a cutoff wheel. I'll clean it up later, or maybe not. Depends on how I feel lol

3" piping, 4" core, turbo will sit a little further from the engine than yours behind the inner passenger headlight

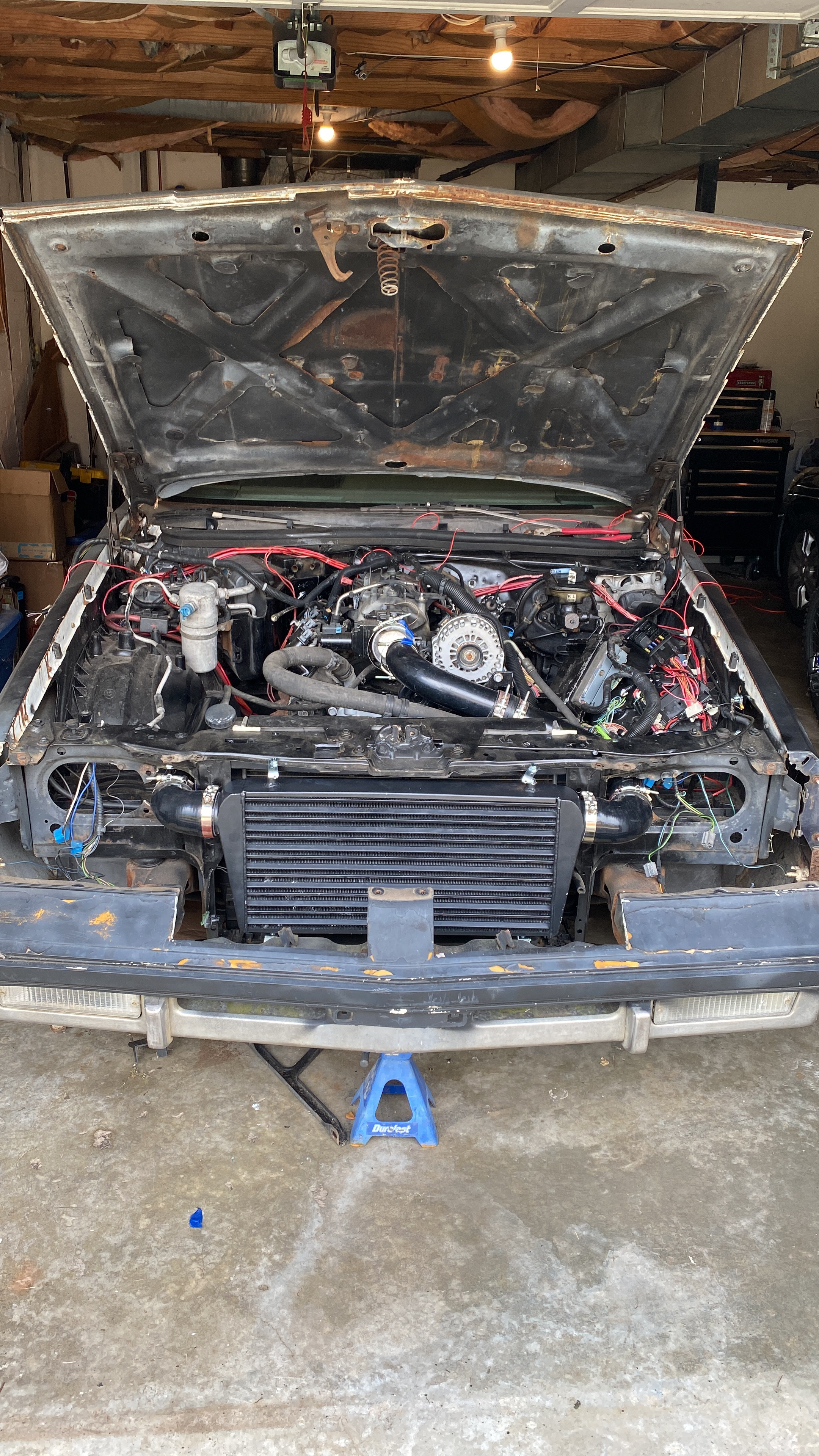

View attachment 206178
Good stuff! Yours same size as Northernregal intercooler 24x12x4?


64nailhead

Goat Herder
Supporting Member
Dec 1, 2014
5,090
113
Upstate NY
A 31” wide fits easily. As long as you don’t have an air system from the factory there is a ton of room.

Best thing I ever did was chuck all of that stuff and put in a tube core support

  • Like
Reactions: 2 users

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
A 31” wide fits easily. As long as you don’t have an air system from the factory there is a ton of room.

Best thing I ever did was chuck all of that stuff and put in a tube core support
When you lean air system I take it you mean air conditioning? I'm planning on running ac on his biuld so it might require a small ic to fit.


64nailhead

Goat Herder
Supporting Member
Dec 1, 2014
5,090
113
Upstate NY
When you lean air system I take it you mean air conditioning? I'm planning on running ac on his biuld so it might require a small ic to fit.
No, I mean the factory induction system. I can’t remember what model you have, but I’m sure it wasn’t a MC SS. If your car is an ‘80 or older then it’s a piece of cake to get the IC in there. The enduro bumper with small inlet is what I found to be challenging.


Attachments

  • image.jpg
    817.2 KB · Views: 28
  • Like
Reactions: 1 user

Northernregal

Sloppy McRodbender
Supporting Member
Oct 24, 2017
3,332
113
Red Deer, Northern Montana territory
A 31” wide fits easily. As long as you don’t have an air system from the factory there is a ton of room.

Best thing I ever did was chuck all of that stuff and put in a tube core support
I was meaning 12*24" core. 64nailhead I think is referring to full width with end tanks. Should be the same size as mine.

  • Like
Reactions: 1 user
