LS turbo clocking and intercooler routings options

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
No, I mean the factory induction system. I can’t remember what model you have, but I’m sure it wasn’t a MC SS. If your car is an ‘80 or older then it’s a piece of cake to get the IC in there. The enduro bumper with small inlet is what I found to be challenging.
Gotcha. I'm running a 84 GN so I take it ill have more room than the MCss as I have a full metal bumper.

  • Like
Reactions: 1 user

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
Started mocking up the ic piping on the GN. Still waiting on my IC to show up.


  • Like
Reactions: 1 users

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
Not too far off from my Malibu mock up. Of course the tubular core support makes it easier.

Nice, very simular to mine. I had planned to put my IC flipped up from your. I'll see when it shows up


64nailhead

Goat Herder
Supporting Member
Dec 1, 2014
5,090
113
Upstate NY
Really comes down to preference and space. I’ve down two standing up and one laying down. Both have some positives and negatives. In big scheme of throngs though, neither way is costing you any amount of measurable power.

Looks great , can’t wait see you get it done

  • Like
Reactions: 1 users

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
Really comes down to preference and space. I’ve down two standing up and one laying down. Both have some positives and negatives. In big scheme of throngs though, neither way is costing you any amount of measurable power.

Looks great , can’t wait see you get it done
Yes sir! I can't wait either too.

  • Like
Reactions: 1 user

Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63

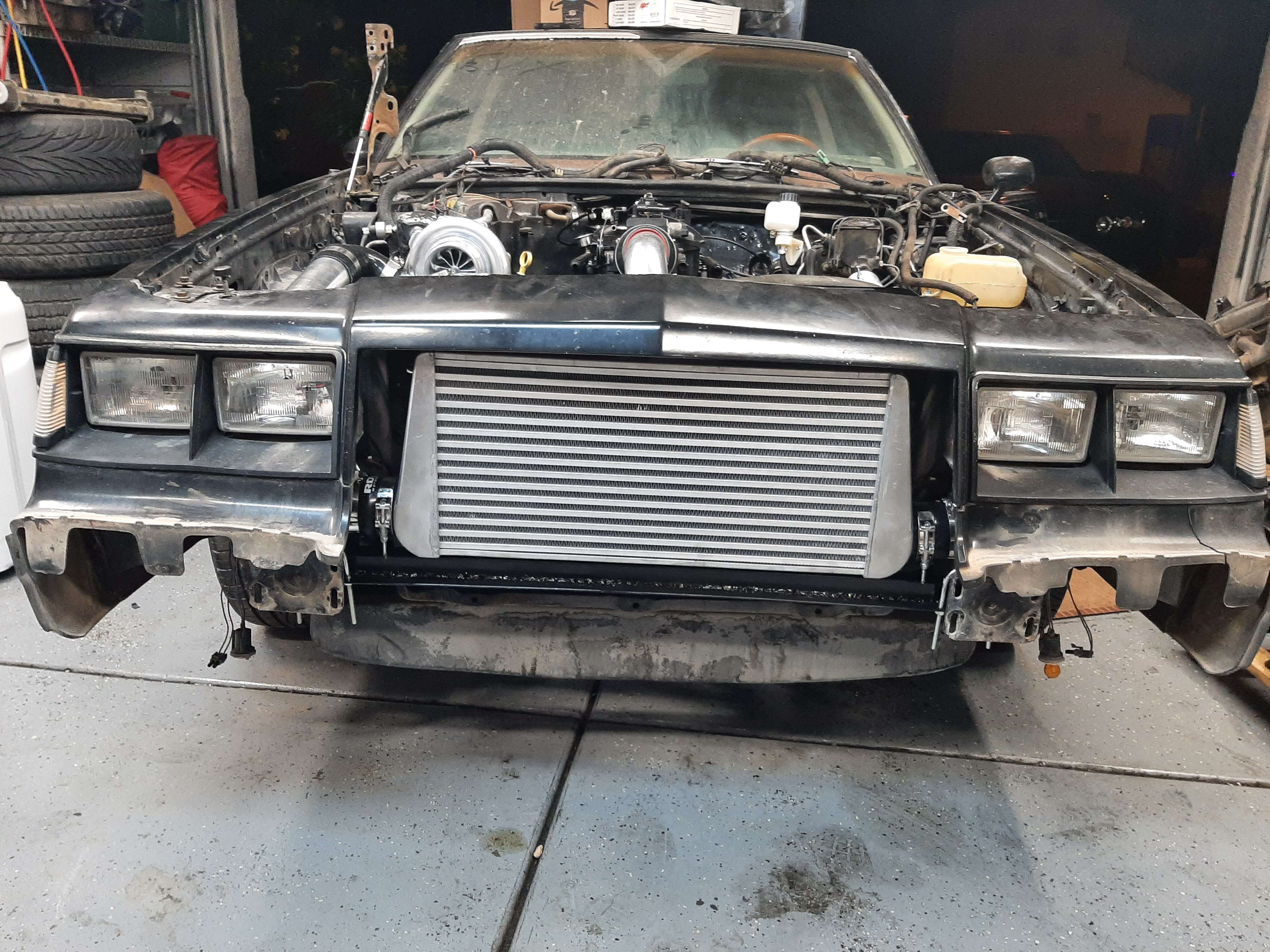

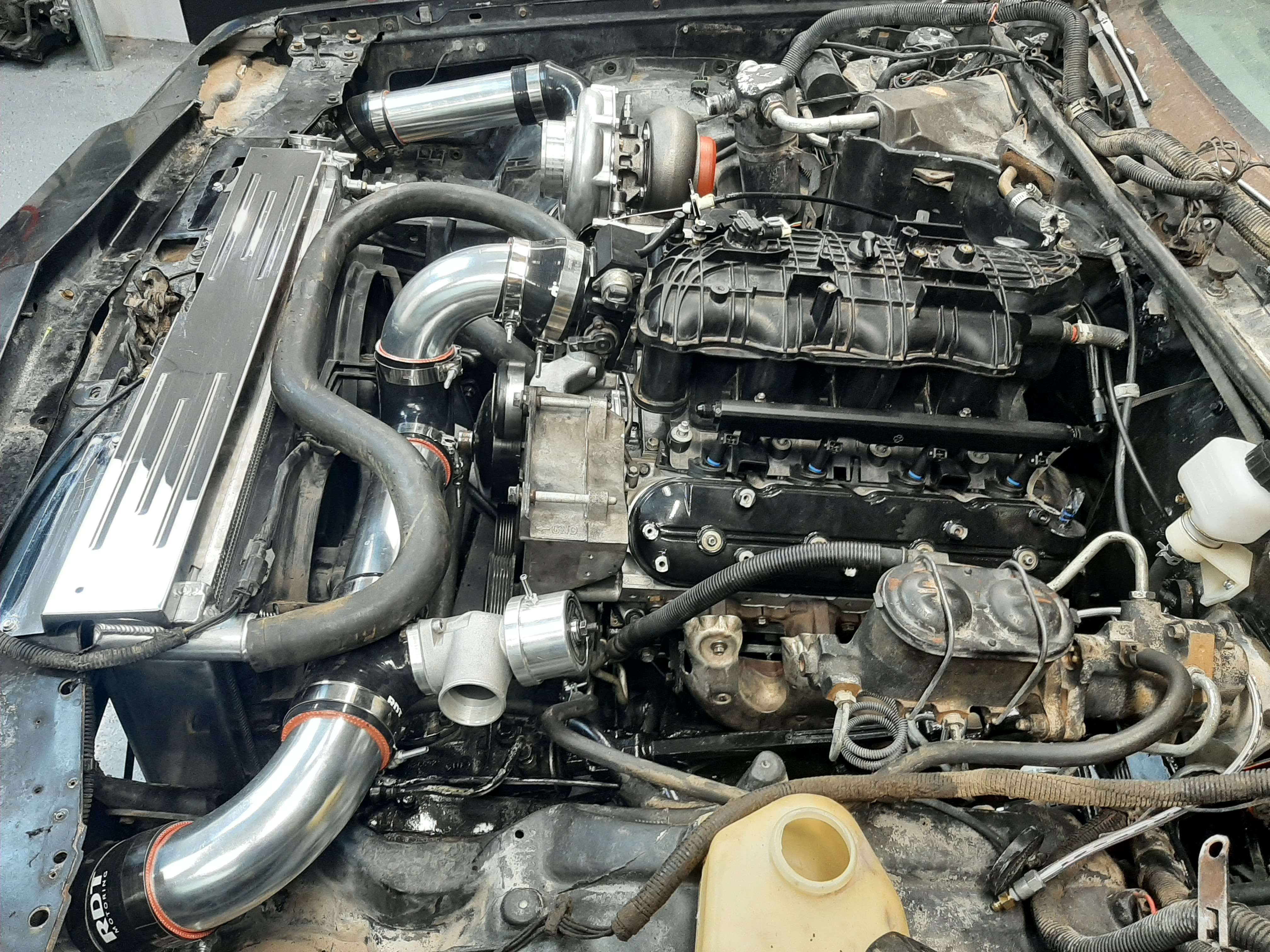

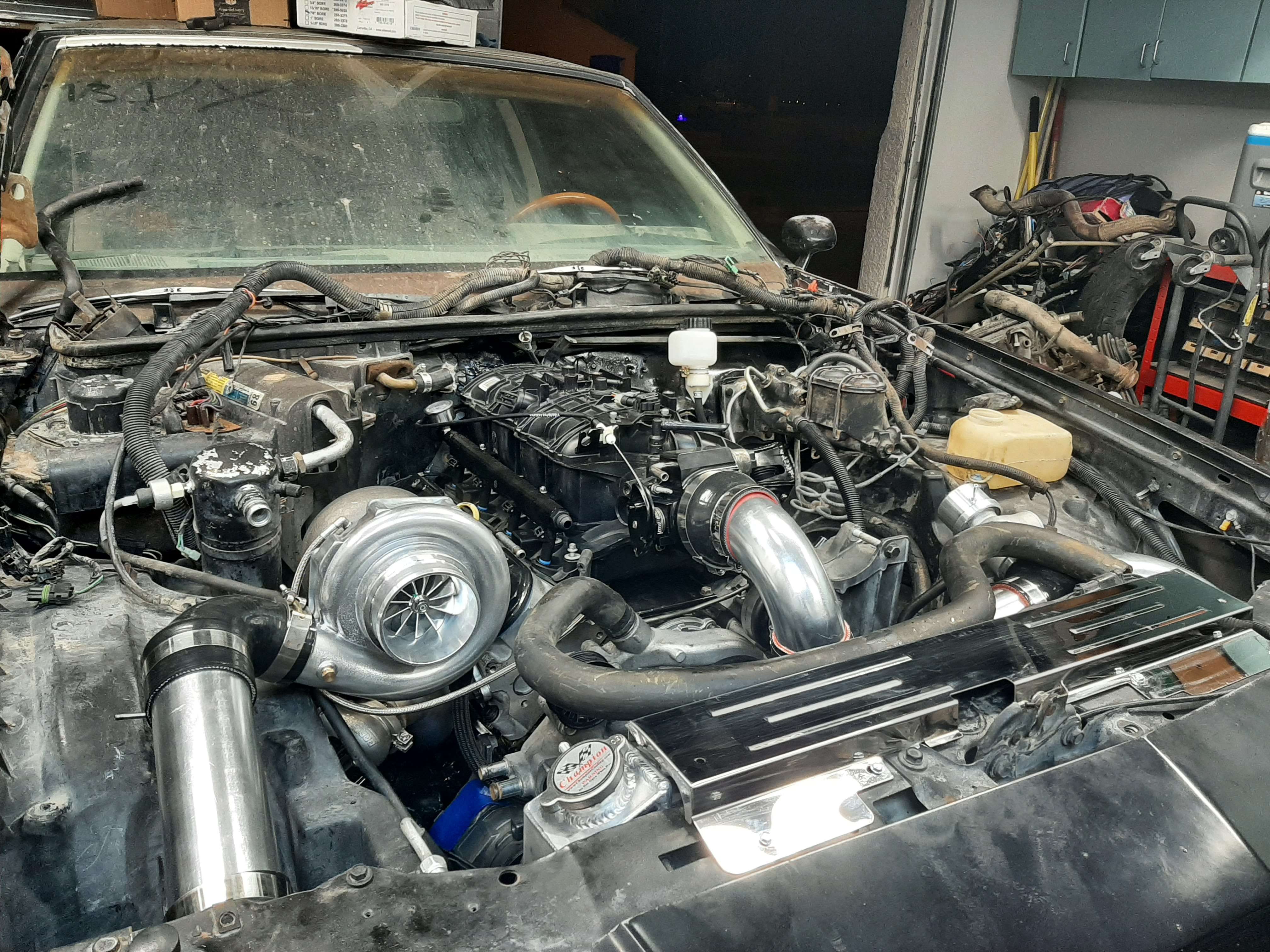

Intercooler is mounted and plumbed. I made a bracket from the lower bumper mount on each side to support the 31x12x4 eBay IC. Also finished up plumbing all the IC pipes. And Finally I found a car worthy to mount my Greddy type R on.



  • Like
Reactions: 1 user

Northernregal

Sloppy McRodbender
Supporting Member
Oct 24, 2017
3,332
113
Red Deer, Northern Montana territory
Intercooler is mounted and plumbed. I made a bracket from the lower bumper mount on each side to support the 31x12x4 eBay IC. Also finished up plumbing all the IC pipes. And Finally I found a car worthy to mount my Greddy type R on.
View attachment 208378
View attachment 208379
View attachment 208380
Silly question....

You have beads rolled into the edges of the cold side pipes from the intercooler and the throttle body? I kept popping them loose on mine, but just those ones.


Rodknok

Greasemonkey
Thread starter
Jun 14, 2022
142
63
Silly question....

You have beads rolled into the edges of the cold side pipes from the intercooler and the throttle body? I kept popping them loose on mine, but just those ones.
Yes sir. I made a wonkie tool to make the beads when i cut the pipes down. This was the 1st attempt. Tool is just a large wire crimp tool that has been cut down.

  • Like
  • Winner
Reactions: 2 users
