New noise from olds 307 ticking/knocking/exhaust leak?

Status
Not open for further replies.

Tz44

Not-quite-so-new-guy
Thread starter
Mar 24, 2012
47
8
That exhaust diagram is totally whacked. I kept looking at it then just a few minutes ago, realized that something wasn't quite right.

I still don't get where there's an exhaust donut on the cross over pipe. I distinctly recall the crossover has flanged ends. There should not be a donut on the crossover. If there is, something doesn't seem right.

There should be 3 bolts/springs on the down pipe to the cat converter. THREE. The donut should be on top of the down pipe to the converter.

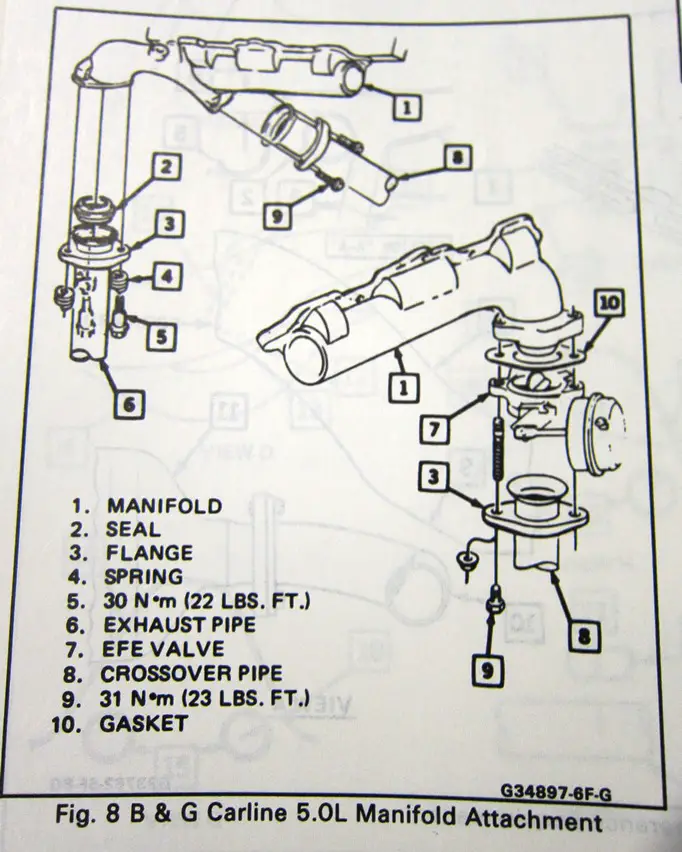

Here's what you should be seeing according to the 1987 Chassis service manual.


View attachment 122547
There were three spring bolts on top of the down pipe above the converter. That’s where I put the donut gasket and where the old one fell out. There are flanged ends on the crossover and as far as I could tell, no spring bolts. However it does kind of look like there’s another donut on the passengers side crossover. I’ll have to get it down to say for sure, I’m not able to see it well enough to say for sure. I can clearly see pieces of the flange gasket above the EFE on the driver side poking out from between the flanges.
I think to cover all the bases I’ll order another flange gasket and donut gasket before I drop the crossover. You’re right about that diagram; it seems like some things are out of place.


69hurstolds

Comic Book Super Hero
Supporting Member
Jan 2, 2006
4,231
113
If the donut is replaced with the 3 spring bolts, you should be good there if nothing snapped off. Dorman makes a bolt/spring kit (1 bolt/1 spring) to replace them if ever needed under p/n 03137 available at most auto parts stores. There are no spring bolts on the crossover.

I apologize for the errors. It's been a while since I've fiddled with the exhaust manifolds and went from memory, which I should know better. I saw what I thought was a donut gasket and immediately thought of the spring bolts. If the cross over is stock should have a flange and taper seal on both ends on both driver and passenger side.

I'm only used to cast iron manifolds, so the "log" versions may appear different, but should seal the same way. The crossover pipe for Y and 9 engines are the same.

I found a picture of a passenger side exhaust manifold and the seal for the crossover pipe only LOOKS like a donut gasket the way the sealing surface looks. Notice where it bulges out a bit. So as long as any carbon is cleaned off and no holes, you should be good. It's just the integrity of the bolts that would worry me. They get real crusty and can snap off just looking at them. The crossover is obviously going to have to be removed anyway if you do the oil pan gasket.



Tz44

Not-quite-so-new-guy
Thread starter
Mar 24, 2012
47
8
If the donut is replaced with the 3 spring bolts, you should be good there if nothing snapped off. Dorman makes a bolt/spring kit (1 bolt/1 spring) to replace them if ever needed under p/n 03137 available at most auto parts stores. There are no spring bolts on the crossover.

I apologize for the errors. It's been a while since I've fiddled with the exhaust manifolds and went from memory, which I should know better. I saw what I thought was a donut gasket and immediately thought of the spring bolts. If the cross over is stock should have a flange and taper seal on both ends on both driver and passenger side.

I'm only used to cast iron manifolds, so the "log" versions may appear different, but should seal the same way. The crossover pipe for Y and 9 engines are the same.

I found a picture of a passenger side exhaust manifold and the seal for the crossover pipe only LOOKS like a donut gasket the way the sealing surface looks. Notice where it bulges out a bit. So as long as any carbon is cleaned off and no holes, you should be good. It's just the integrity of the bolts that would worry me. They get real crusty and can snap off just looking at them. The crossover is obviously going to have to be removed anyway if you do the oil pan gasket.

That makes sense. I’ll just order another flange gasket. I’ll see if I can find some bolts to replace the stock ones (the ones I haven’t been able to crack loose yet) so that I won’t have to fight them as much if/when I replace the oil pan gasket. Hoping they’re not leaking against the heads but I’ll check once I get a chance. Hurricane Dorian might end up affecting us here so i might not be able to make much progress and shipping will be slow. I have a service manual and a quadrajet book to keep me occupied though.
