Did some more wiring, and started on the dreaded transmission tunnel.

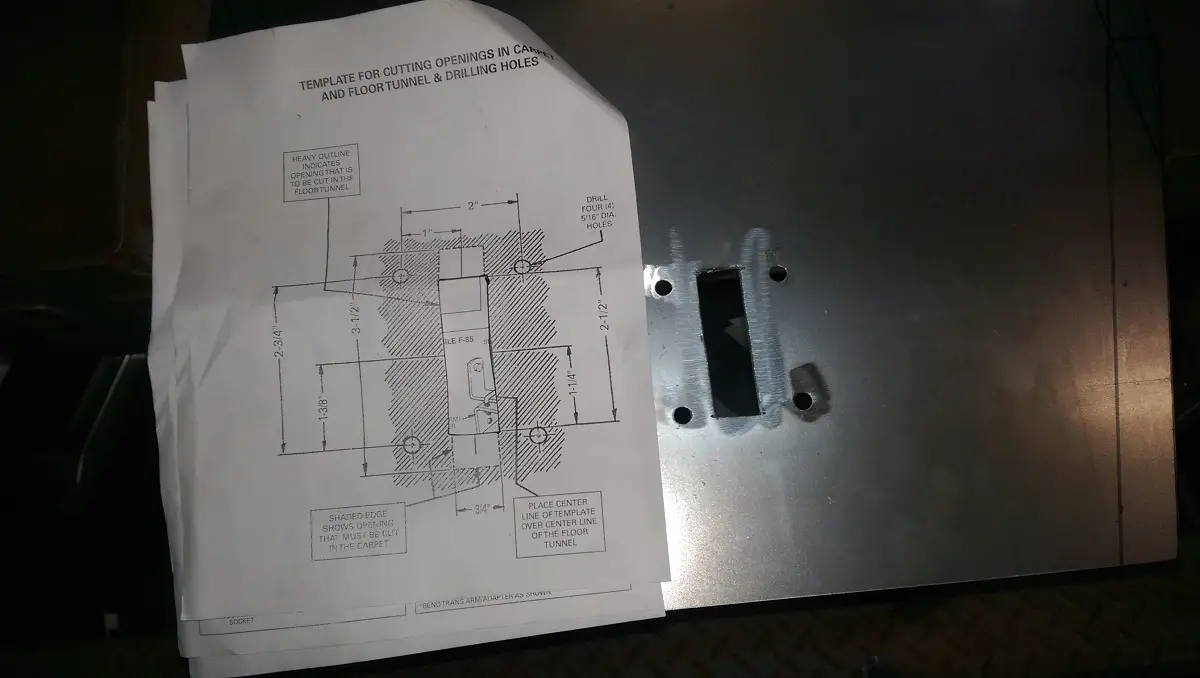

NOTE, the cheap *ss shifter came with a template that didn't even match the shifter bolt pattern.

At least my paper pattern worked reasonably well.



[Rktpwrd]

Did some more wiring, and started on the dreaded transmission tunnel.
NOTE, the cheap *ss shifter came with a template that didn't even match the shifter bolt pattern.

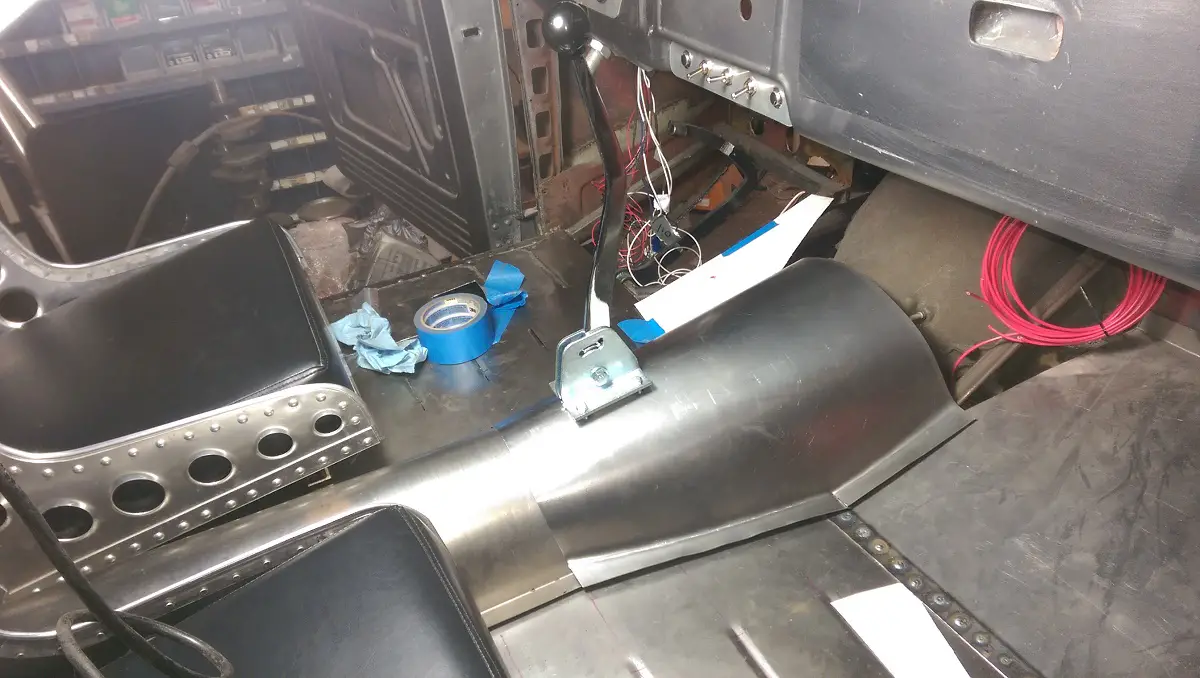

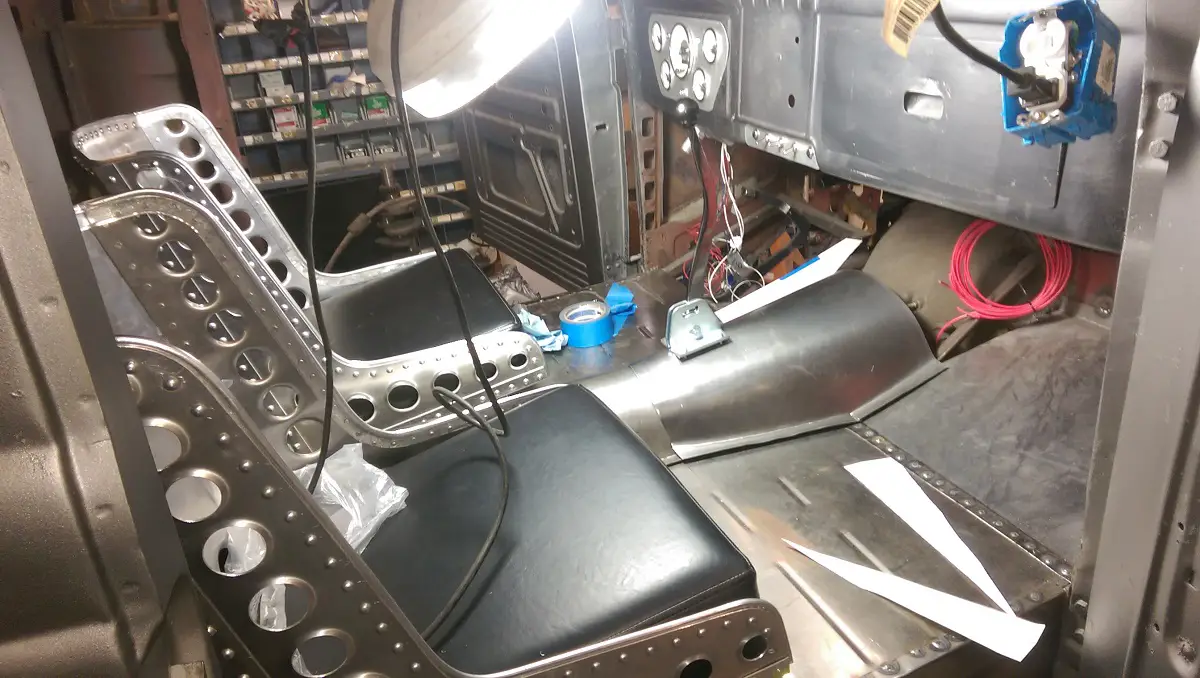

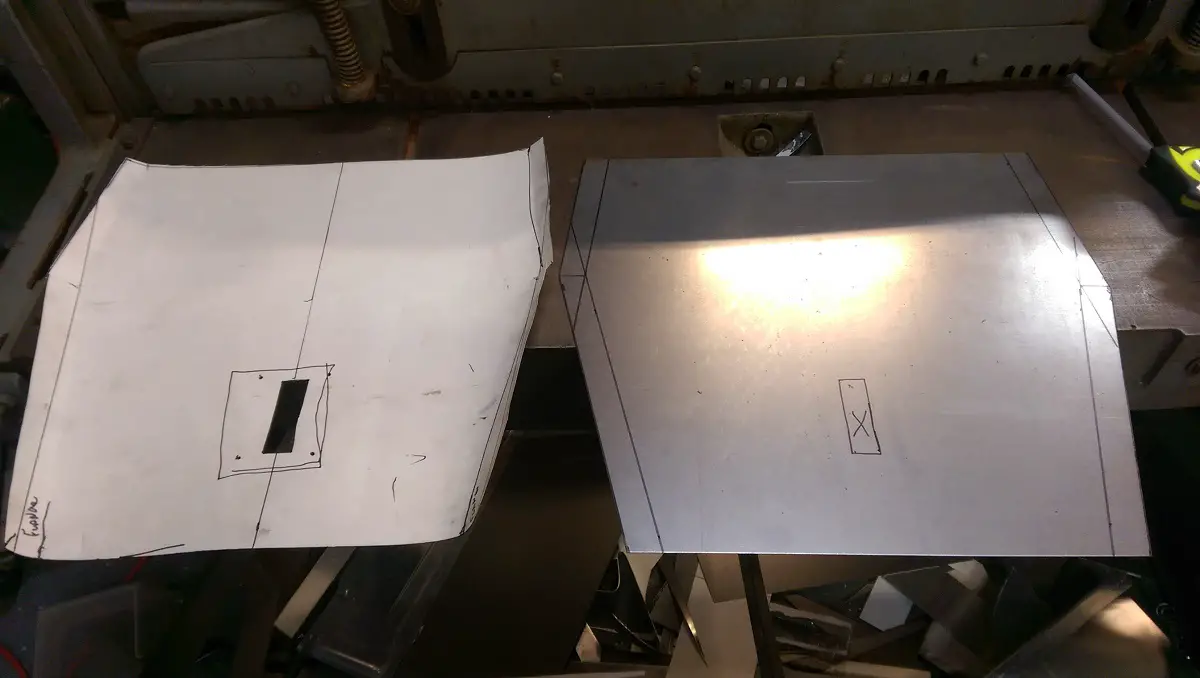

View attachment 105786View attachment 105787View attachment 105788View attachment 105789View attachment 105790At least my paper pattern worked reasonably well.

Beautiful metal work!
As a metal, fabrication, paint and body guy myself, you have my admiration and respect.
Curious, how did you create the curvature of the tunnel, and incorporate two different angles into the flanges all at the same time?
Slip roll?
Definitely tuned in.



[dirtywhiteboy]

Beautiful metal work!
As a metal, fabrication, paint and body guy myself, you have my admiration and respect.
Curious, how did you create the curvature of the tunnel, and incorporate two different angles into the flanges all at the same time?
Slip roll?
Definitely tuned in.

Thanks!

The real work for that piece is in the paper pattern.
Once you figure out where to cut the paper to allow your part to be formed with the paper, it's pretty easy.

This piece it deceptive, the rear side of the tunnel has a smaller radius than the front, but there are not any compound curves.
The floor board does angle up, and the flanges were formed with the part from a single piece.

To answer your question, the driveshaft tunnel was formed using a brake for flanges on 3 sides. I used a stretcher on the rear flange to force it to curve.
I had to also use my knee to tighten up the radius towards the front.

The transmission tunnel part was shaped using only my knee, a fire extinguisher, and a pair of duck bill vice grips to form the flanges.....I did smack it a few times with a hammer and dolly to clean up the flanges.



[Rktpwrd]

Thanks!

The real work for that piece is in the paper pattern.
Once you figure out where to cut the paper to allow your part to be formed with the paper, it's pretty easy.

This piece it deceptive, the rear side of the tunnel has a smaller radius than the front, but there are not any compound curves.
The floor board does angle up, and the flanges were formed with the part from a single piece.

To answer your question, the driveshaft tunnel was formed using a brake for flanges on 3 sides. I used a stretcher on the rear flange to force it to curve.
I had to also use my knee to tighten up the radius towards the front.

The transmission tunnel part was shaped using only my knee, a fire extinguisher, and a pair of duck bill vice grips to form the flanges.....I did smack it a few times with a hammer and dolly to clean up the flanges.

Thanks for the info. I figured you had used a brake to create the flanges, that’s what I would’ve done as well. I also know that you created it out of one piece, I saw your brake lines marked out on the steel. Using the shrinker to force the smaller radius to bend was brilliant.

I just find it amazing that the point where your two flange plains meet didn’t create a high spot. Very very well done.

And that’s why you pattern everything first guys!!

I just found this particular piece of interest to me because I need to redo my transmission tunnel here in the near future as well to buy me more clearance around my T56. Ive already made a replacement tunnel for mine, but it’s still a bit too tight around the top of the bellhousing. I found using a large welding cylinder worked really well for creating the curvature, same as your fire extinguisher.

I’ve made some mental notes here with what you’ve done, and will be calling upon them when it’s time for my redo.

Thanks for posting and replying!
D.
