Well shortly after my last update, the rear floor crossmember decided to kick my everlovin’ @ss. I’m not kidding, this crossmember project has been straight from the deepest darkest bowels of hell.

After mocking up the long welded piece to the short one, to my dismay I found I had gotten a critical measurement wrong somewhere and the center part wasn’t dropping down as far as I had intended. It looked ok initially, but was deceiving because the long section was actually running downhill and it didn’t become apparent until I had the other side in place.

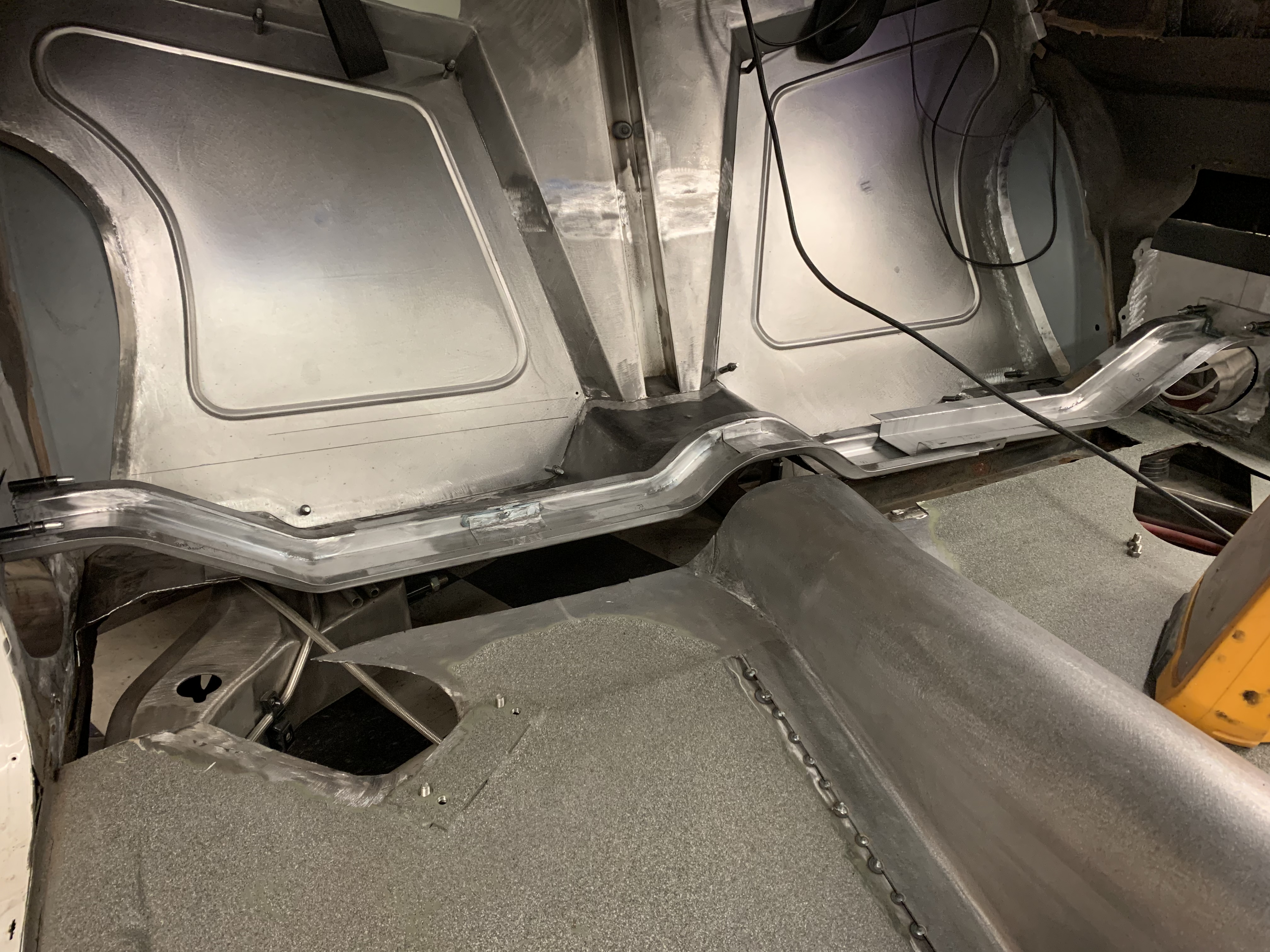

You can see in this picture that the center hump doesn’t line up with the floor sheetmetal, it’s up too high:

View attachment 192448

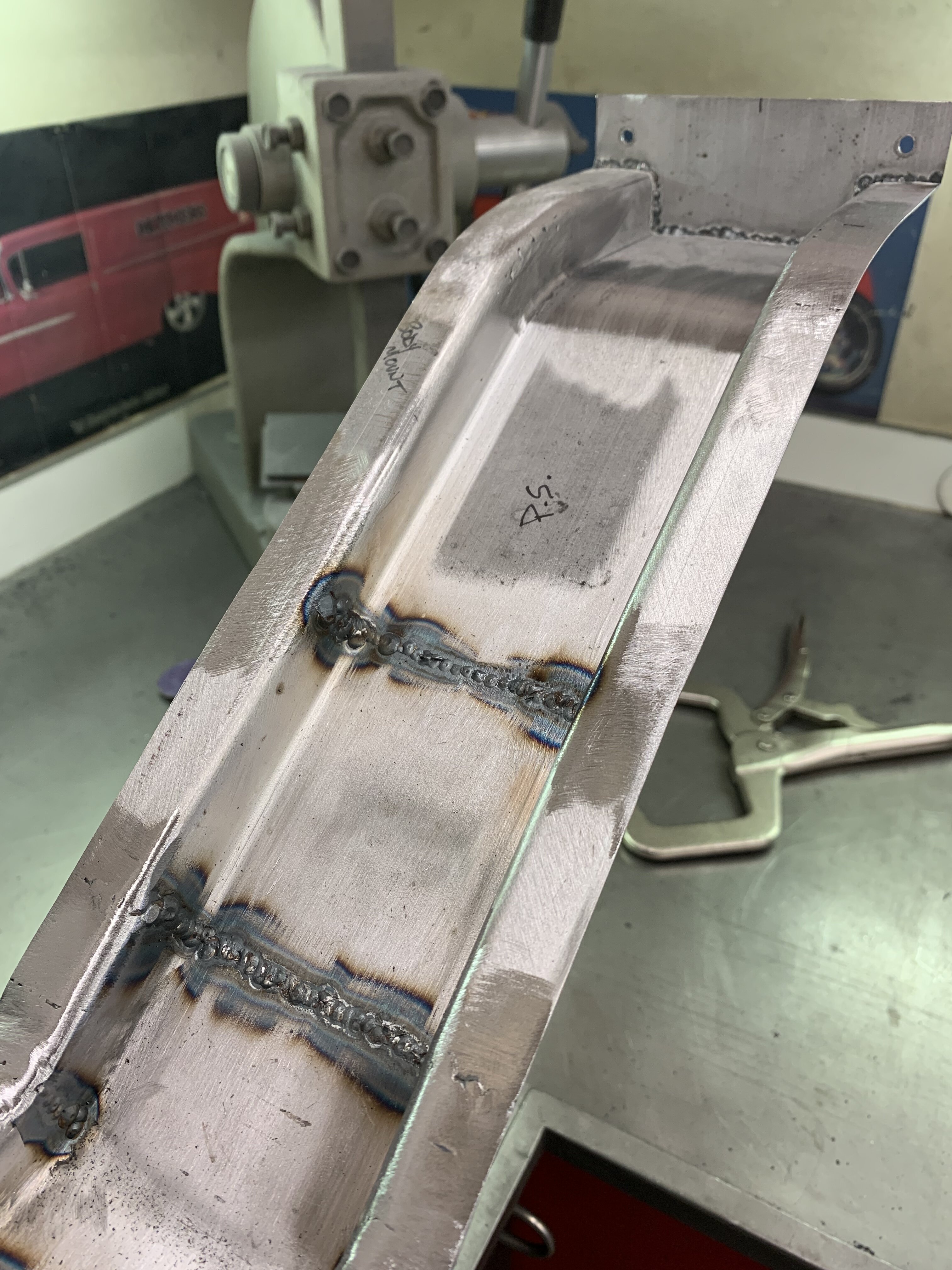

So that meant cutting it up and sectioning in pieces to the kickups to make it drop down lower. And of course because we’re dealing with angles, the longer the kickups, the shorter the straight sections have to be too.
All wasn’t entirely lost though, I was at least able to keep and reuse the curved/bend sections I had put so much time and effort into. Still 3 cuts and 3 seams to weld up per side tho.

View attachment 192449

Finally got all that redone and sorted out and figured I was home free. Just mock up the two halves and mark where the excess could be trimmed from the short side right?

Haha. This thing had other ideas.

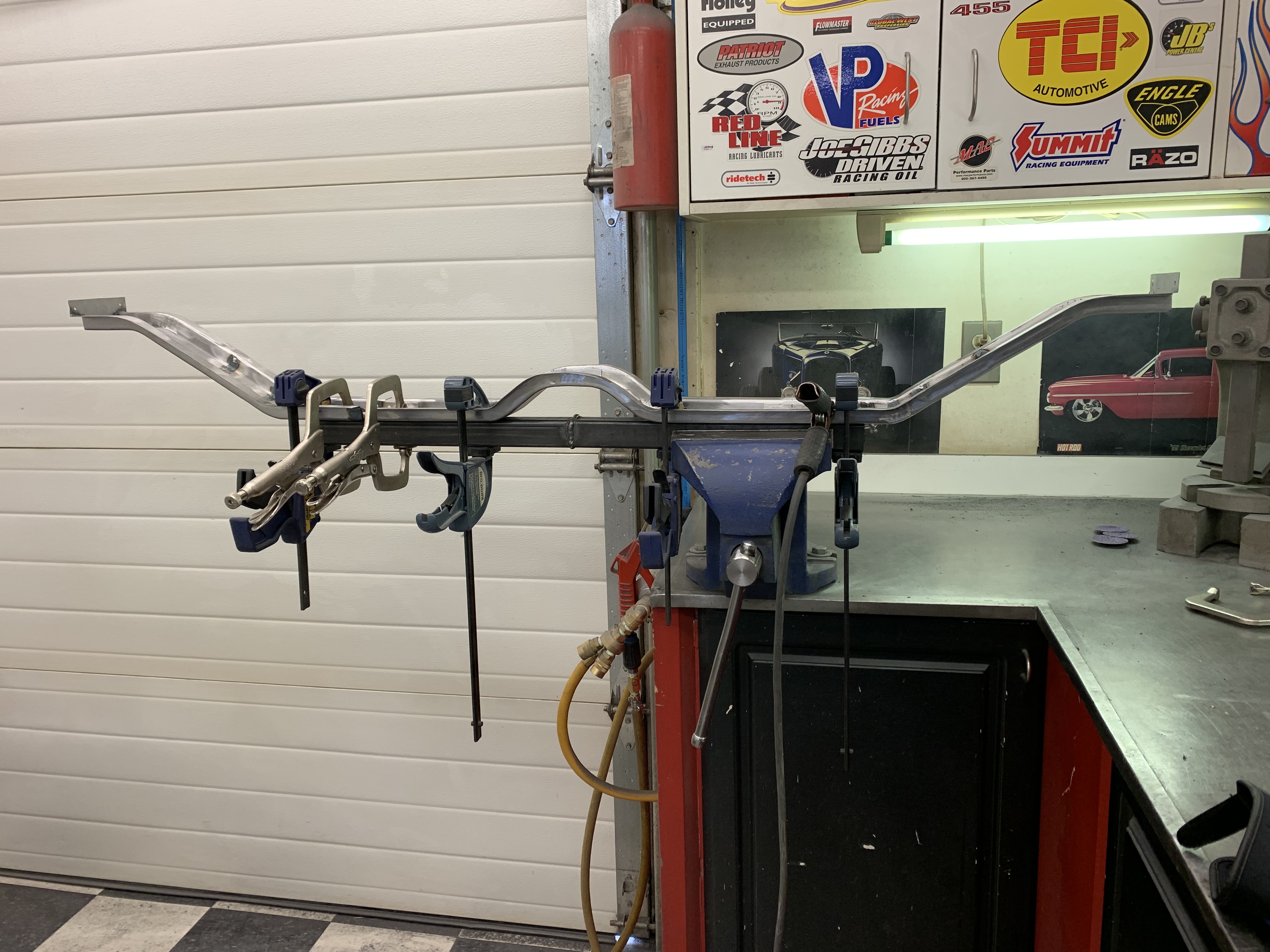

I mark and cut it to length, get the two halves clamped to my fixture in preparation for welding them together, and wait a minute, something doesn’t look right. If you look closely at the right side of the crossmember in this picture, you’ll see that the kickup is lower than the other side, the angles had changed on me somehow. Most likely pulled out of shape from welding heat.

View attachment 192450

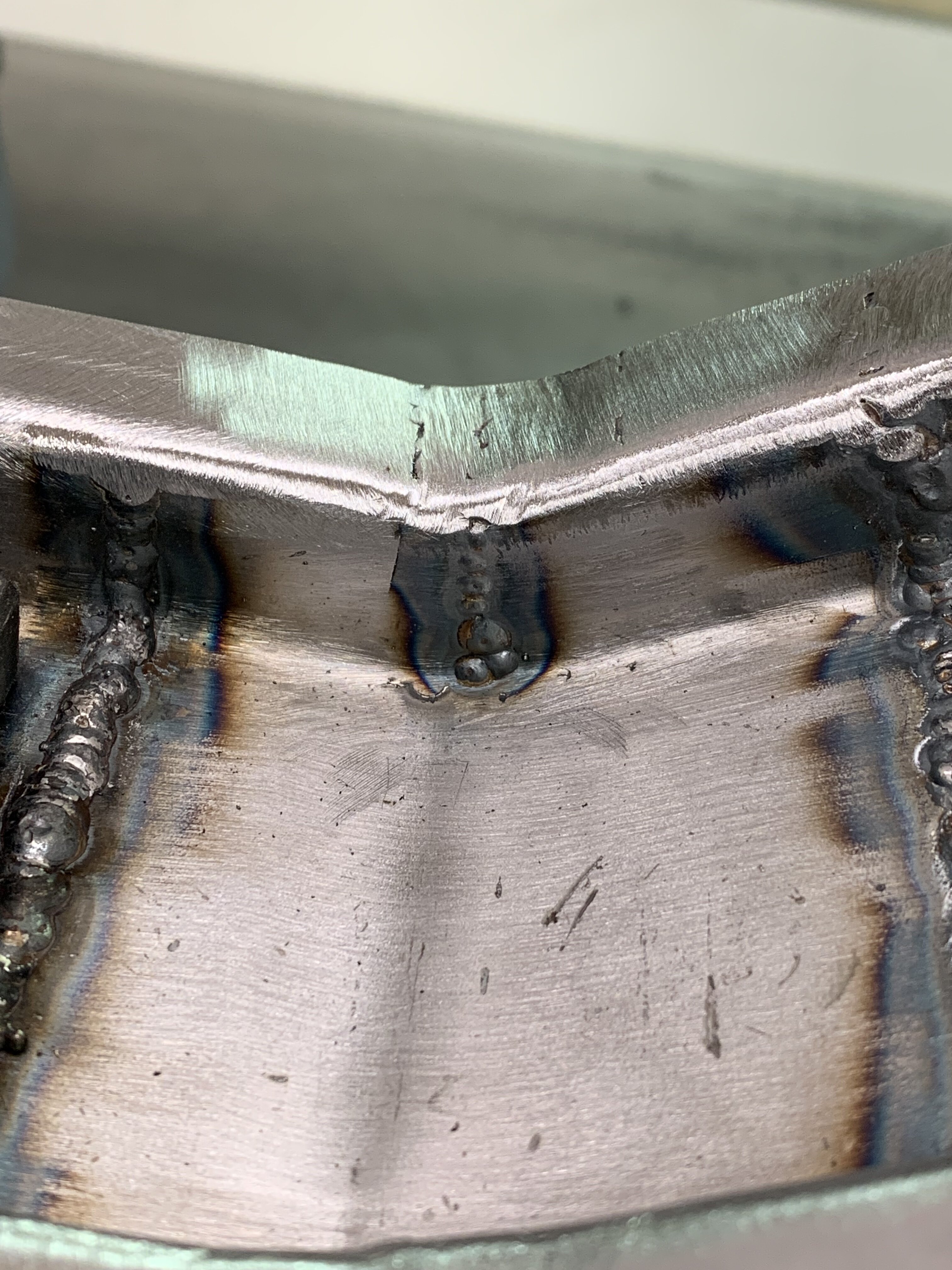

Out came the sliding T-bevel, and I started checking angles. The driver’s side was better than the passenger’s, I was able to confirm what the actual angle was supposed to be in three spots. So I locked down the T-bevel at that angle and started comparing it to the other bends. Passenger’s side was WAAAY off. Dismayed but with no choice, I resigned myself to the fact that relief cuts would have to be made in the offending corners and welded back up again.
Faaack.

View attachment 192451

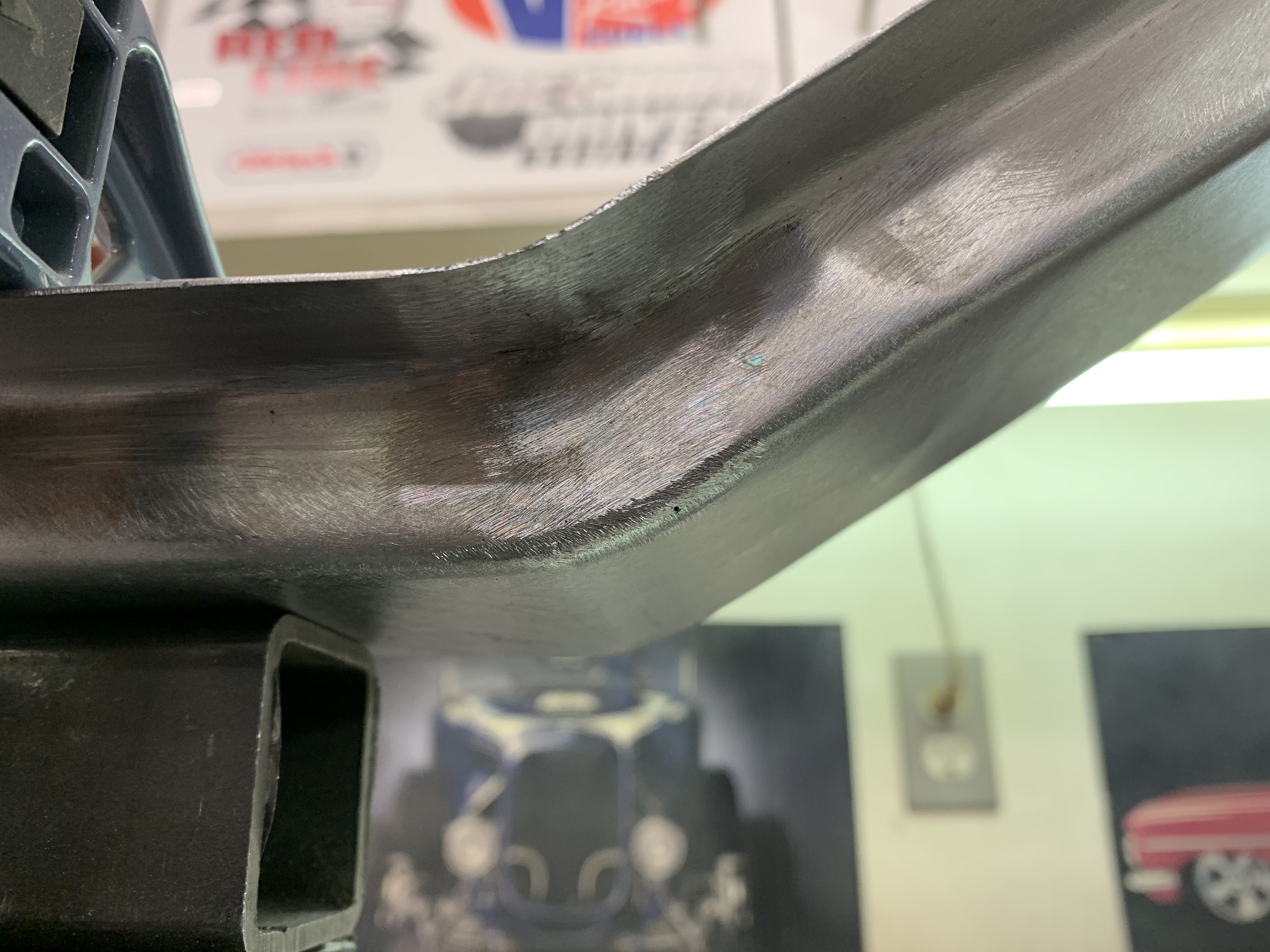

Still managed to get the outer faces looking half-assed ok though.

View attachment 192452

Good to go now right?
Haha. Not yet sucker.

Remember that I had now already trimmed the short section to what I thought was correct, but after adjusting the angles and mocking it back up, the overall length had changed. And not in my favour, no no, that would be too easy. I was now SHORT by a half inch. Oh goody, more cutting and welding. Here it is somewhere in the middle of the process:

View attachment 192453

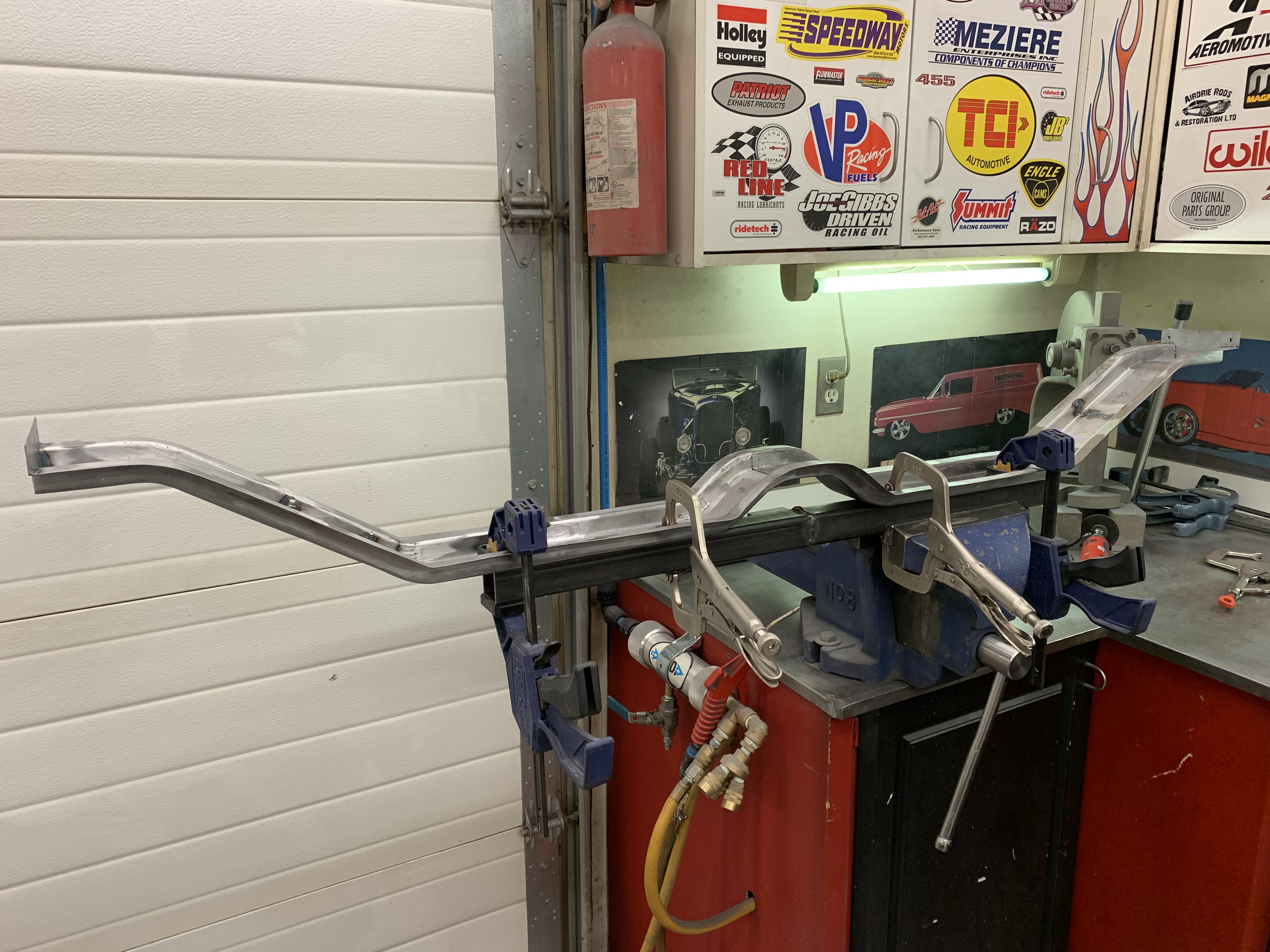

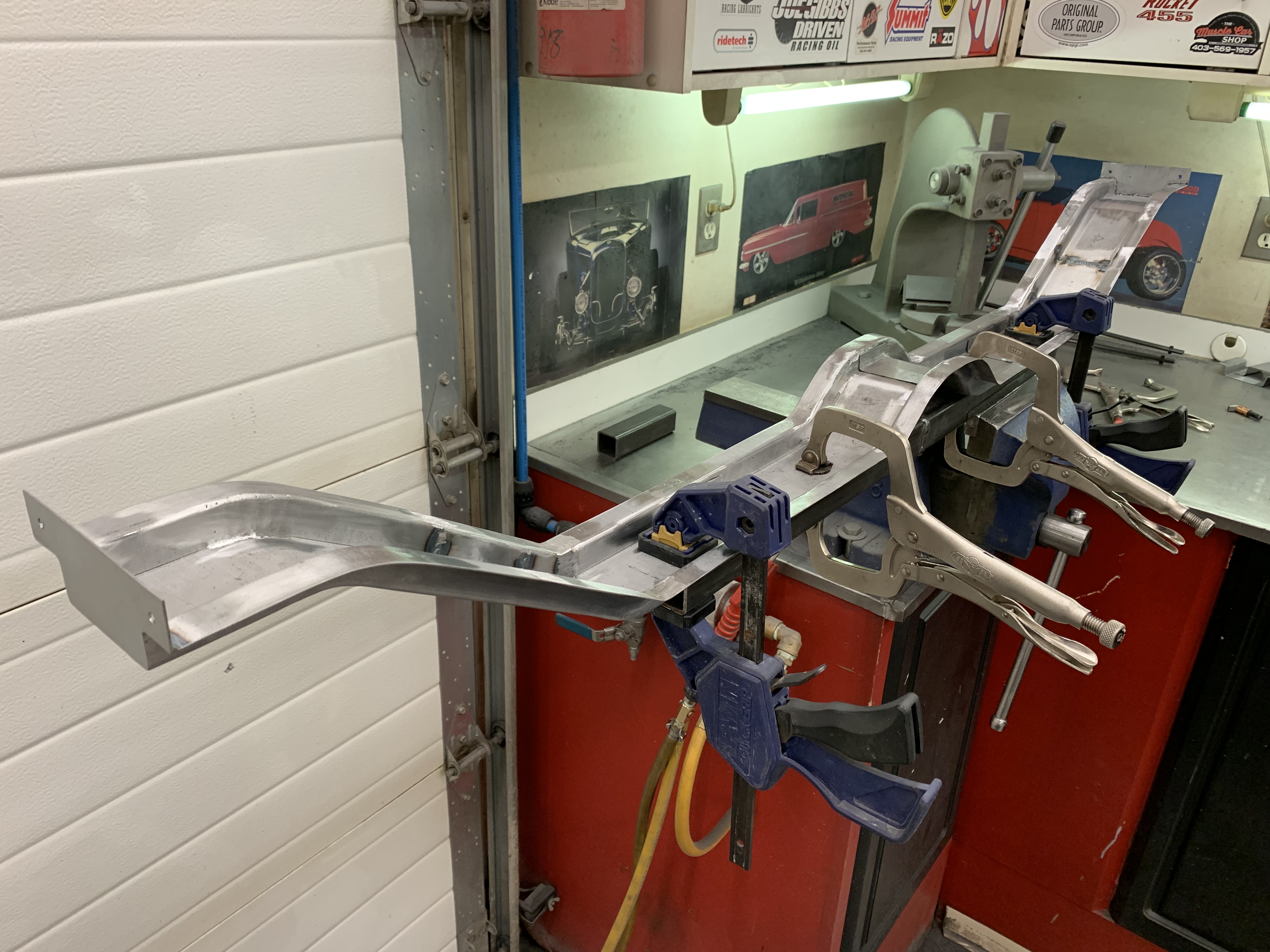

But tonight, finally, FINALLY, I have good news. It’s done, it’s correct, and it fits as intended. Still on the fixture…

View attachment 192454

View attachment 192455

View attachment 192457

…I took the opportunity to fine tune the hump arc with the hammer and dolly. Looks pretty uniform now and should work just fine:

View attachment 192456

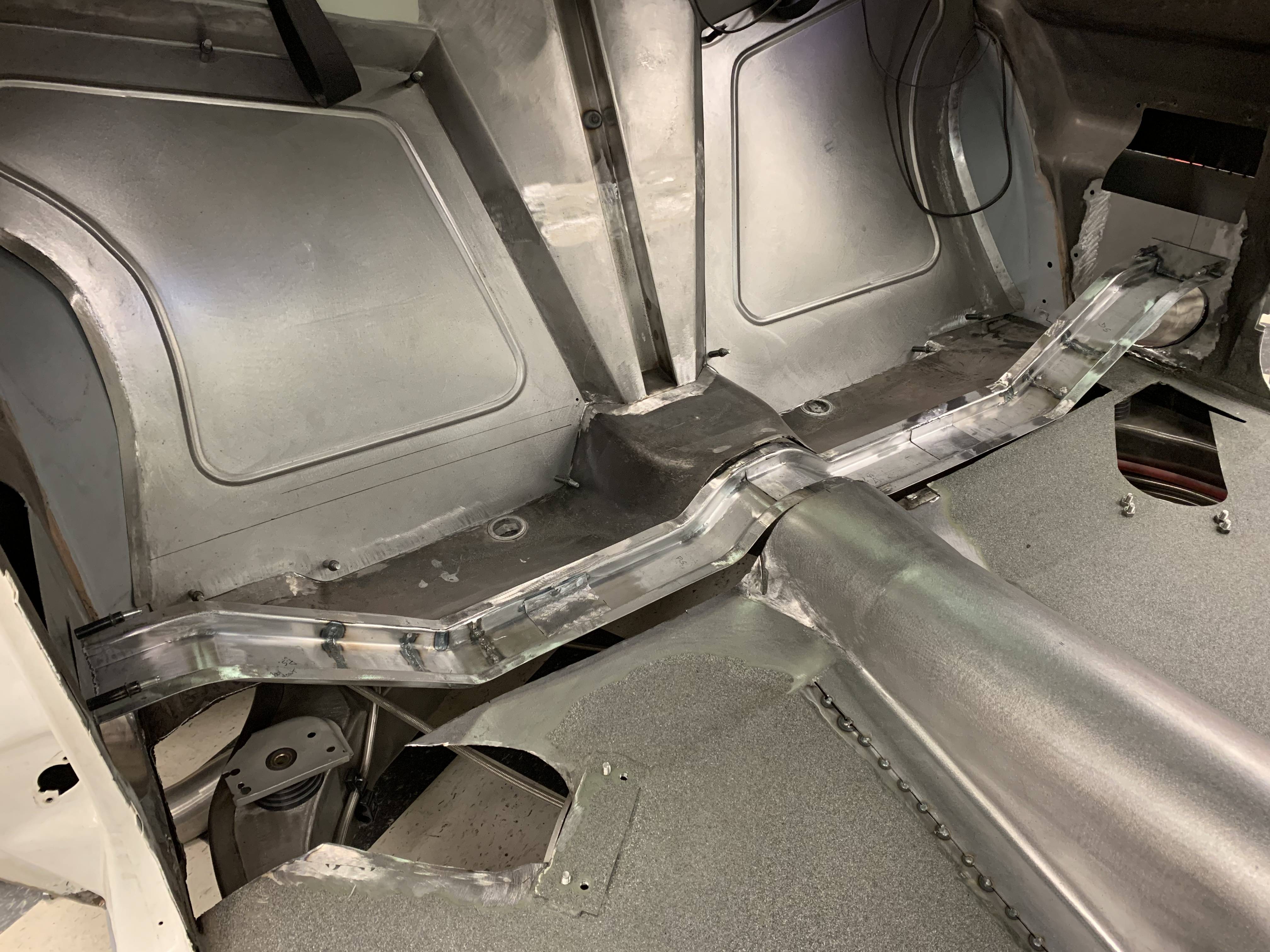

After cutting out a little more of the stock crossmember for clearance, I finally got the satisfaction I’ve been wanting for near on a month now. It’s in and it fits!!

View attachment 192466

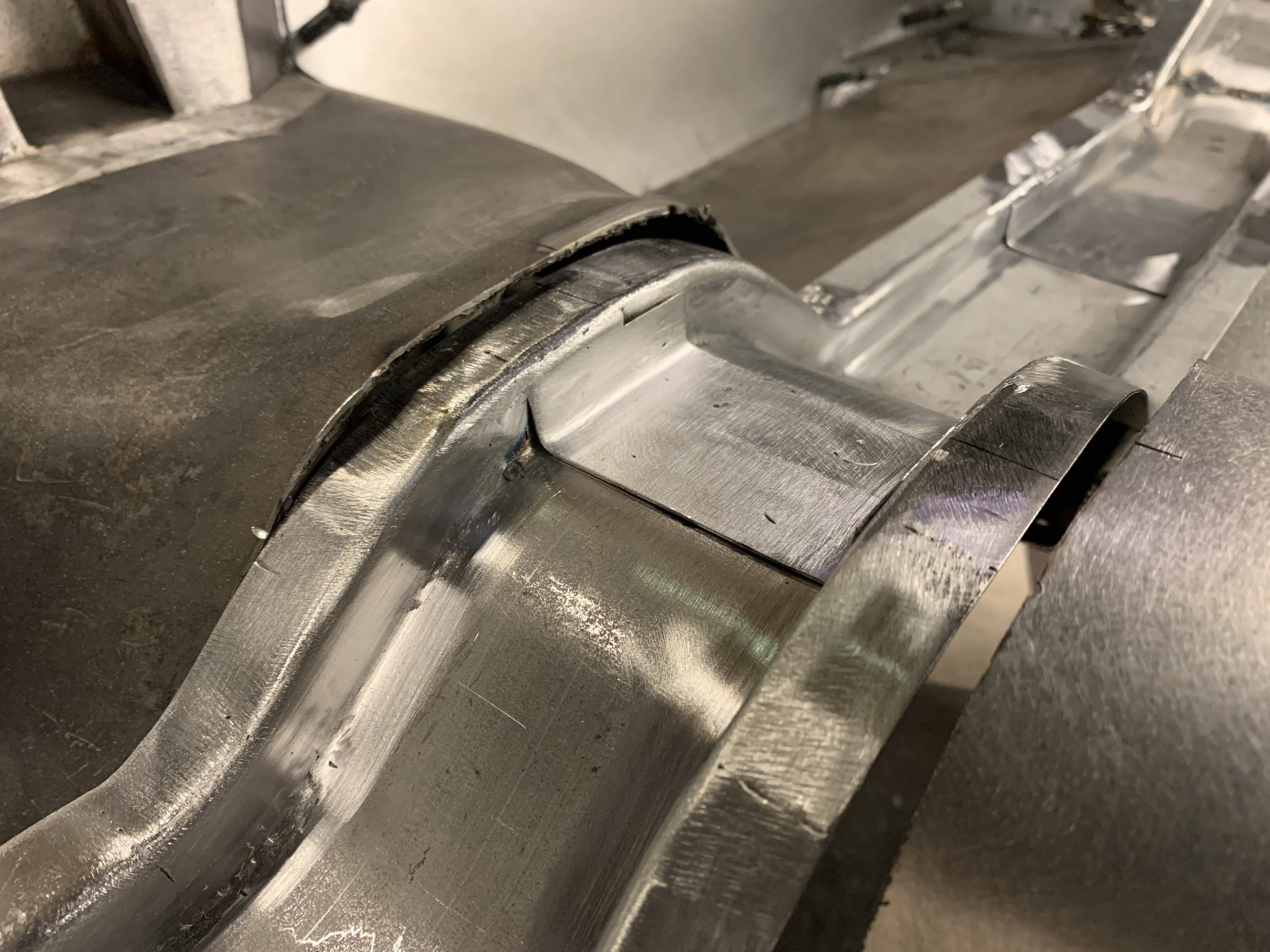

The center hump now lines up with the floor sheetmetal like what was planned, it shouldn’t take much to get this part lined up, welded in and done:

View attachment 192468

That will have to wait tho, as I now have a crap load of other things to get done first. The pass-through patch pieces that are going to be the outside lower quarter panels have to be finished welded in on both sides, the inner pass-through pipe on the driver’s side has to be welded to the inner wall, and then I have to start building the body mount pedestals that will attach to the floor crossmember.

View attachment 192469

So yeah, still a sh*t-ton of work to go, but at least I’m finally done with the infernal floor crossmember!!!
