I seem to be pretty good at being able to find work where there really shouldn’t be any.

Pushing the better part of two weeks now cleaning up and “finishing” the exhaust system. It started out as welding up the gaps in the header reducers after the geometry correction, and pretty much snowballed from there.

The reducer gaps welded up before:



And after:



After I ground the welds flush, I started out by continuing sanding and trying to smooth out all the grinder marks on the rest of the pipes. (Do you have any idea how much time and effort it takes to smooth grinder marks out of bare steel? It’s a LOT.)
Which then morphed into “geez, I should probably remove all these excess weld stalactites hanging down inside that could impede exhaust flow too”. I didn’t have any extended shank grinding burrs that would let me get more than a couple inches inside the pipes, and no one local had what I wanted for a reasonable price.

So, I turned to Amazon. Took a gamble on this set of Yuck Foo 6” assorted burrs for $30 and had them next day.



Now I hate buying anything from Chy-na as much as the next guy, but I gotta admit I was pleasantly surprised with them. Nice and sharp, no runout (which can be a huge problem with extended burrs), tough and for a price point that’s tough to argue.

I immediately put them through their paces, and turned areas like these…





…into areas like these, with a little assist afterwards from a 40 grit flap wheel sanding drum.





Essentially poor man’s extrude honing. More nice smooth goodness:













I even smoothed out the ugly welds on the two halves of the Summit X-pipe. Pretty much had to as the rest of it was starting to look really good, and their welds were sticking out like a sore thumb.



So that’s where I’m at right now, this is what it takes to build some next level shjt. It’s lonely at the top, but someone’s gotta blaze the trail. Not too many guys going to this extent on a G body, but I don’t care. It’s what makes me happy, it’s gonna look killer when it’s done (because aesthetics are just as important on this build as performance), and that’s justification enough for me.

Couple last pictures of areas of the main pipes. I still have a little more to do yet, should hopefully be done in the next day or two.









I know it seems like a lot of unnecessary work, but just like bodywork on a car, it’s all in the prep ahead of time. The entire exhaust system will be going out for high lustre silver ceramic coating to match the headers, and all this work now will pay off afterwards in a beautiful finish.

I will eventually get back to finishing up the floor, I promise. But I might as well take care of the little items like this that I come across along the way, and capitalize on the opportunities to put more things in the “done” column.

D.

  • Like
  • Love
  • Winner
Reactions: 19 users

Northernregal

Sloppy McRodbender
Supporting Member
Oct 24, 2017
3,222
113
Red Deer, Northern Montana territory
I seem to be pretty good at being able to find work where there really shouldn’t be any.

Pushing the better part of two weeks now cleaning up and “finishing” the exhaust system. It started out as welding up the gaps in the header reducers after the geometry correction, and pretty much snowballed from there.

The reducer gaps welded up before:

View attachment 204419

And after:

View attachment 204420

After I ground the welds flush, I started out by continuing sanding and trying to smooth out all the grinder marks on the rest of the pipes. (Do you have any idea how much time and effort it takes to smooth grinder marks out of bare steel? It’s a LOT.)
Which then morphed into “geez, I should probably remove all these excess weld stalactites hanging down inside that could impede exhaust flow too”. I didn’t have any extended shank grinding burrs that would let me get more than a couple inches inside the pipes, and no one local had what I wanted for a reasonable price.

So, I turned to Amazon. Took a gamble on this set of Yuck Foo 6” assorted burrs for $30 and had them next day.

View attachment 204408

Now I hate buying anything from Chy-na as much as the next guy, but I gotta admit I was pleasantly surprised with them. Nice and sharp, no runout (which can be a huge problem with extended burrs), tough and for a price point that’s tough to argue.

I immediately put them through their paces, and turned areas like these…

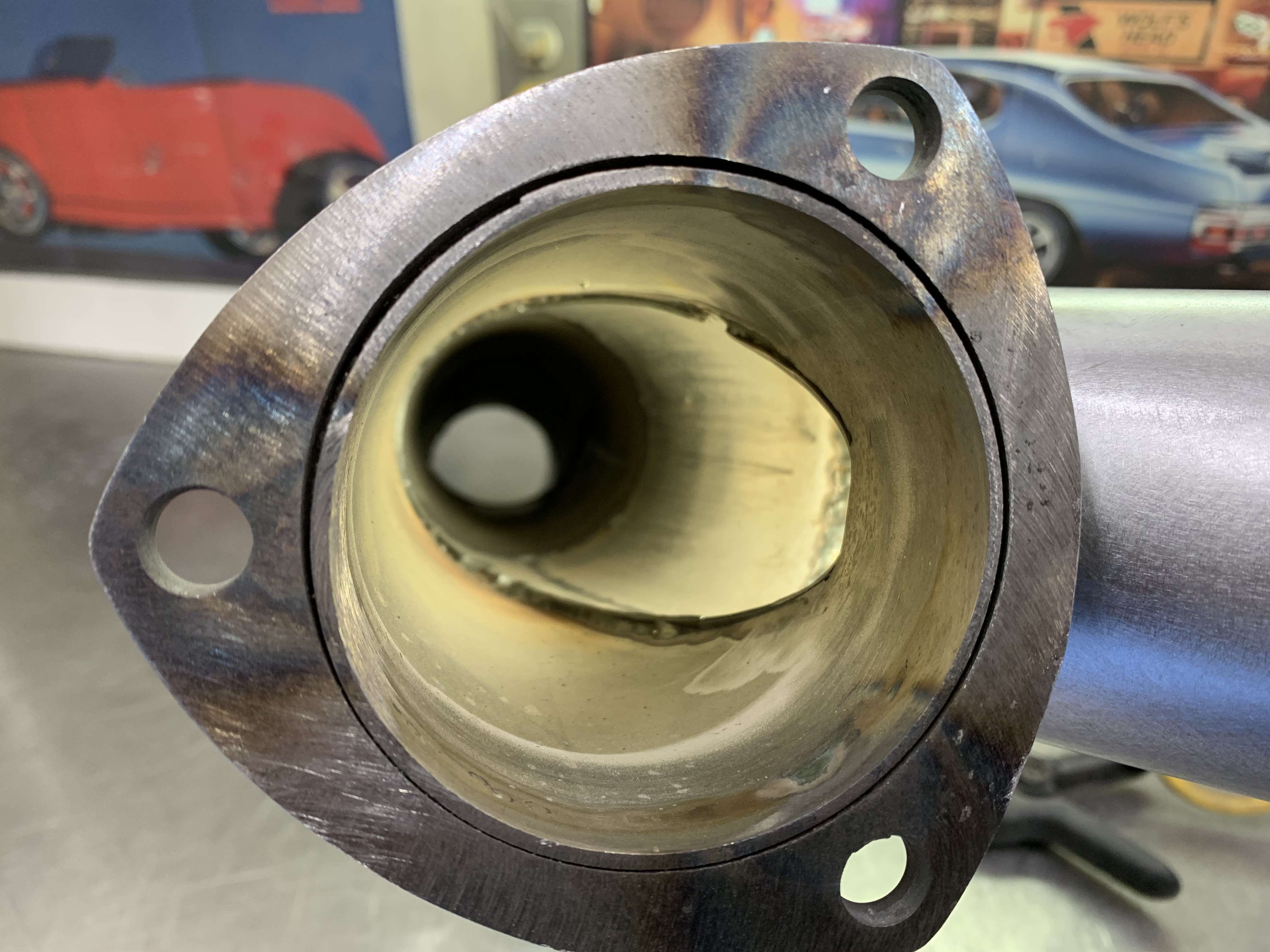

View attachment 204409

View attachment 204410

…into areas like these, with a little assist afterwards from a 40 grit flap wheel sanding drum.

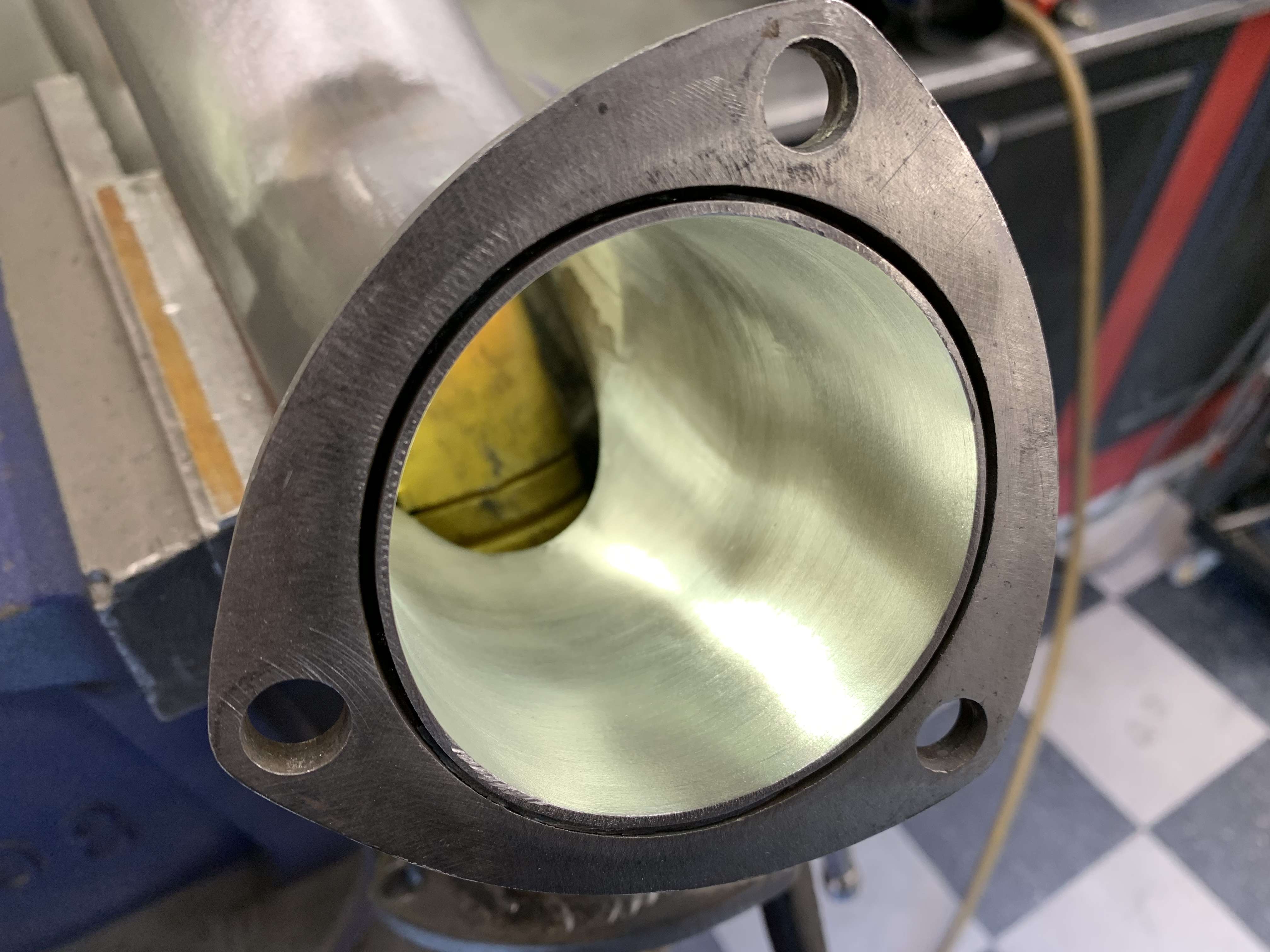

View attachment 204411

View attachment 204412

Essentially poor man’s extrude honing. More nice smooth goodness:

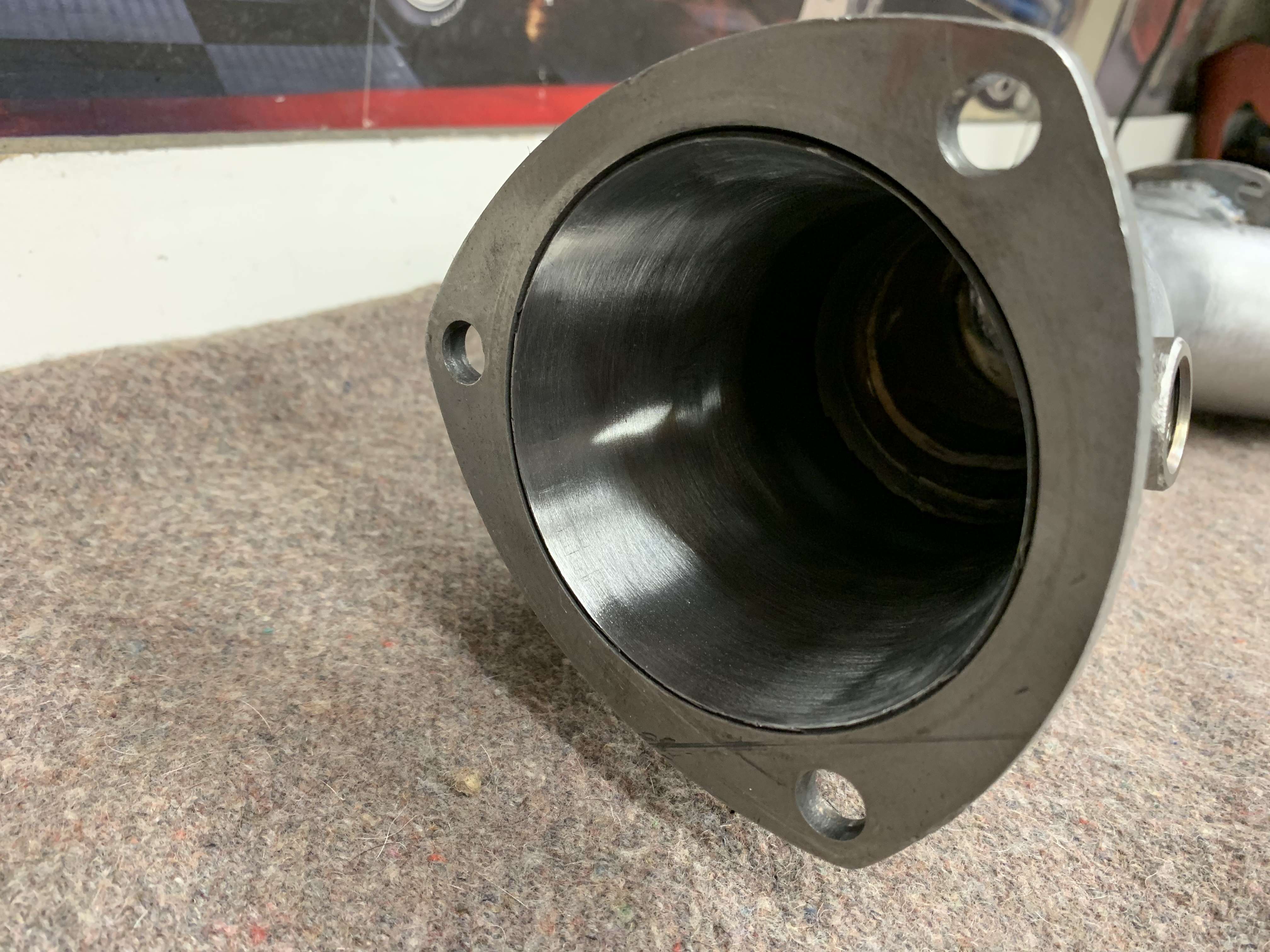

View attachment 204413

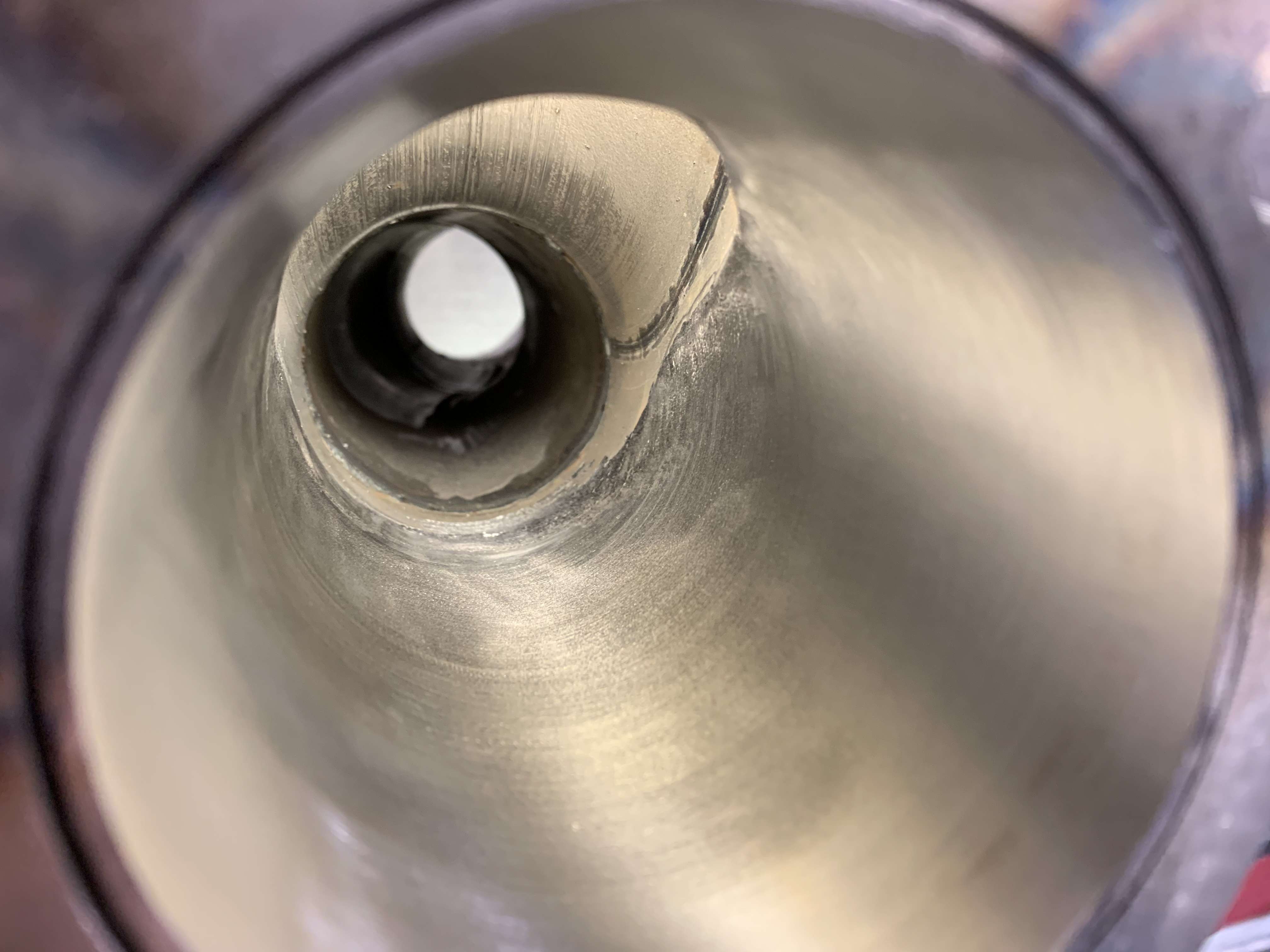

View attachment 204414

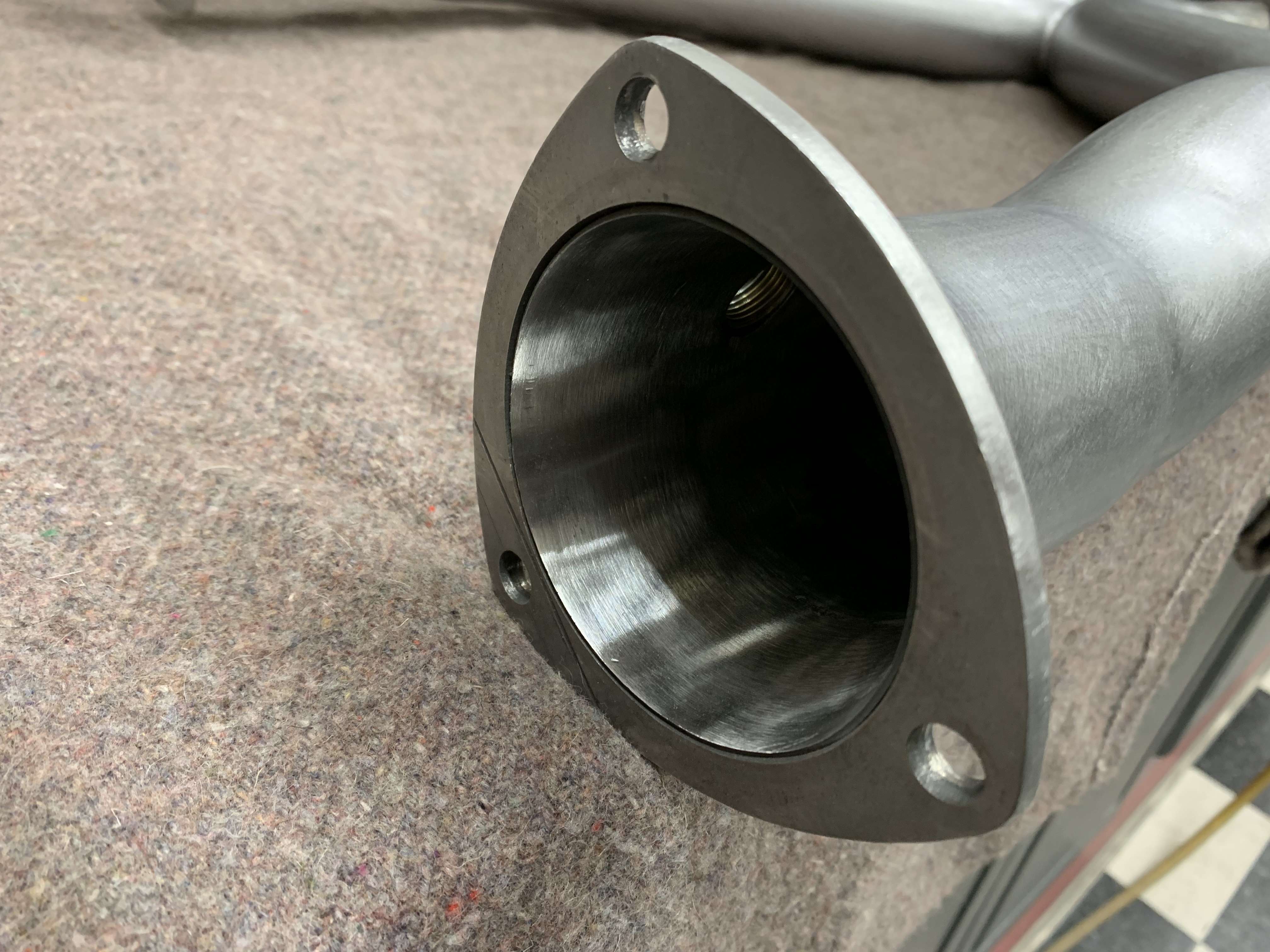

View attachment 204415

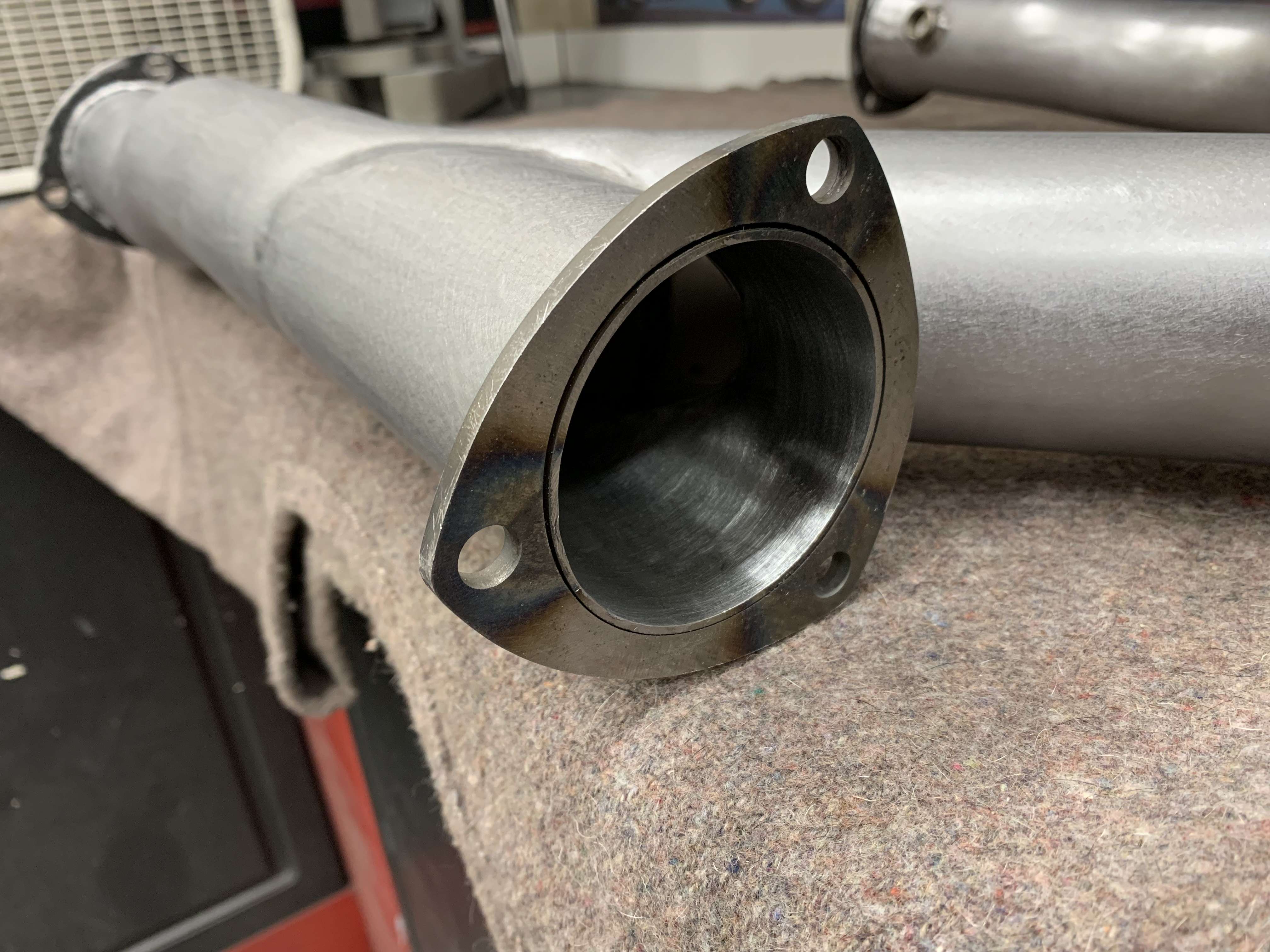

View attachment 204416

View attachment 204417

View attachment 204418

I even smoothed out the ugly welds on the two halves of the Summit X-pipe. Pretty much had to as the rest of it was starting to look really good, and their welds were sticking out like a sore thumb.

View attachment 204421

So that’s where I’m at right now, this is what it takes to build some next level shjt. It’s lonely at the top, but someone’s gotta blaze the trail. Not too many guys going to this extent on a G body, but I don’t care. It’s what makes me happy, it’s gonna look killer when it’s done (because aesthetics are just as important on this build as performance), and that’s justification enough for me.

Couple last pictures of areas of the main pipes. I still have a little more to do yet, should hopefully be done in the next day or two.

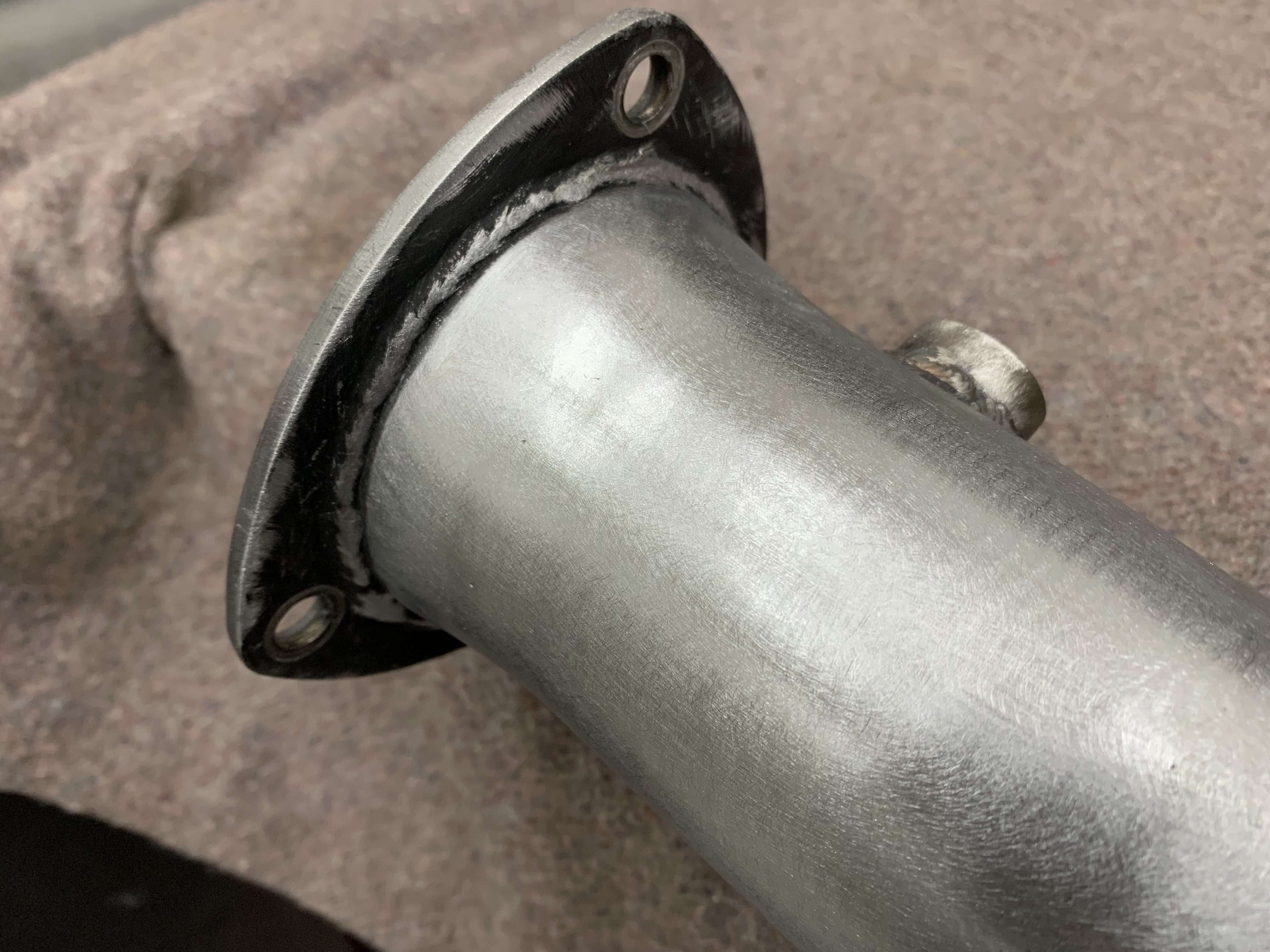

View attachment 204422

View attachment 204423

View attachment 204424

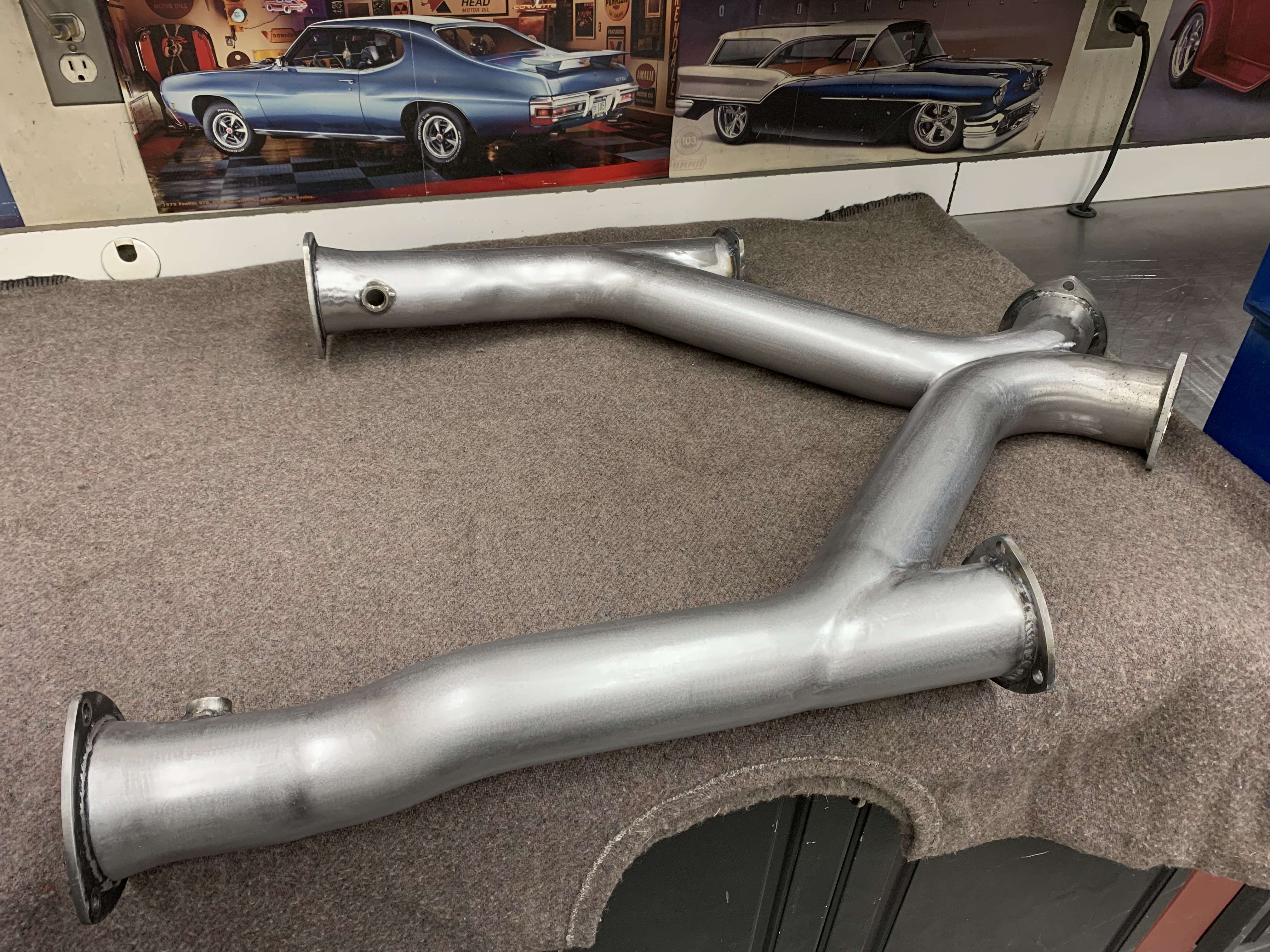

View attachment 204425

I know it seems like a lot of unnecessary work, but just like bodywork on a car, it’s all in the prep ahead of time. The entire exhaust system will be going out for high lustre silver ceramic coating to match the headers, and all this work now will pay off afterwards in a beautiful finish.

I will eventually get back to finishing up the floor, I promise. But I might as well take care of the little items like this that I come across along the way, and capitalize on the opportunities to put more things in the “done” column.

D.
Nbc Dude GIF by Superstore


You can get medication for your OCD.....

Don't get me wrong, gorgeous work..... But.... Why?!? 😂

  • Haha
Reactions: 4 users

liquidh8

Comic Book Super Hero
Love it, have a link for those burs?

  • Like
Reactions: 1 users

Rktpwrd

Comic Book Super Hero
Supporting Member
Thread starter
Feb 2, 2015
3,788
113
Calgary, Alberta, Canada
Love it, have a link for those burs?

Here ya go:

Yakamoz Set of 4Pcs 5.9-Inch Long Tungsten Steel Solid Carbide Rotary Burrs Set with 1/4-Inch Shank Fits Rotary Tool for Woodworking Drilling Carving Engraving https://a.co/d/57Tee67

  • Like
Reactions: 4 users

Supercharged111

Comic Book Super Hero
Oct 25, 2019
3,565
113
Colorado Springs, CO
Why you ask... in the name of the God's of horsepower i say.

You can obviously never saw the episode of Engine Masters where they bashed a set of headers near shut and nothing happened.

  • Like
Reactions: 1 users
